点击放大查看

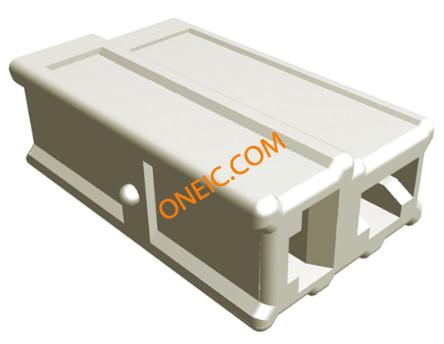

626064
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 4.6mm Crimp ST Cable Mount Loose Piece Headers & Wire Housings 2P RCPT HOUSING Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HOUSING 2.79MM 2CIRC Crimp, Faston, housing, 2.79mm, 2 way Conn Housing RCP 2 POS 4.6mm Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 2Tab Fit = 2.79 mmLoose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on HOUSING, PLUG, 2WAY Crimp,Faston,housing,2.79mm,2way TE Connectivity AMP FASTIN-FASTON 系列 2 触点 尼龙 66 压接端子外壳 2 WAY FASTIN-ON 110 HOUSING REC PA66 NAT |
| 分类 |
商业参数
| 标准包装数量 | Bulk | 工厂包装数量 | 15000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Natural | 深度 | 18mm |
| 间距 | 4.6 mm | 宽度 | 6.3mm |
| 高度 | 6.3 mm | 长度 | 11.63mm |
| 重量 | 0.025 | 材料（通用） | Nylon |
| 包装方式 | Bulk | 插片宽度 | 2.79 [.110] |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 端子尺寸 | 0.110" (2.79mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | Yes | 安装样式 | Cable |
| 排数 | 1 | 壳体材料 | Polyamide |
| 总长度 | FASTIN-FASTON .110 | 包装数量 | Loose Piece |
| 第一触头极性 | Socket (Female) | 触点数 | 2 |
| 堆叠方向 | Perpendicular | 位数 | 2 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | AMP FASTIN-FASTON | 产品子类型 | Receptacle Housing |
| 电路数 | 2 | 适用产品/相关产品 | 0.110" (2.79mm) Quick Connects |
