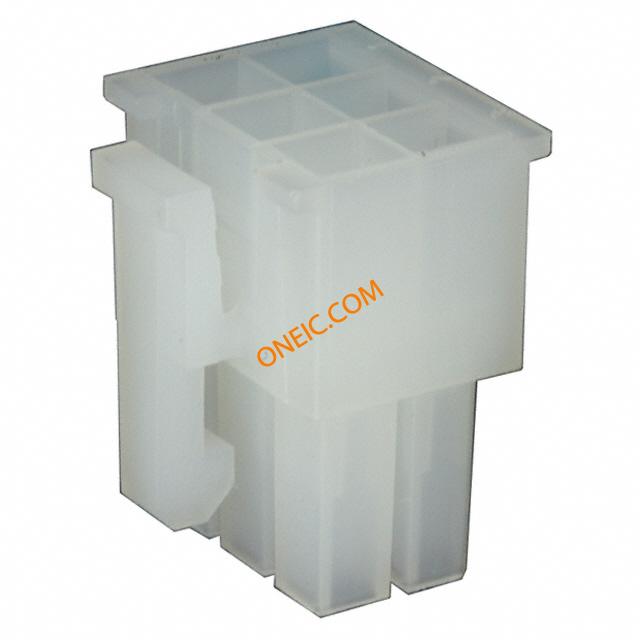

106527-6

点击放大查看

106527-6

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 6 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 6 POS W/POSTIVE LOCK Headers & Wire Housings DUAC Conn Housing RCP 6 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 6UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power DUACHousing;6PositionReceptacle 06P DUAC REC HSG
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

其他名称1065276产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant零件状态E28476
标准编号CSA, ULUL阻燃等级UL 94V-2
认证机构标志是材料阻燃等级UL94V-2

电气参数

开关功能Latched供电电压600
中心频率带有最大额定电流9/Contact A
最小供电电压600VAC

机械参数

颜色Natural深度18.8 mm
间距4.2 mm宽度11.7 mm [ .46 in ]
高度18.8 mm [ .74 in ]长度13.9 mm [ .55 in ]
密封型Not Sealed包装方式Bulk
导线线规18-26 AWG排间距0.165" (4.20mm)
触头类型Female Socket外壳颜色Natural
安装类型Straight行程角度Straight
连接器类型Receptacle接触镀层Without
紧固类型Latch Lock安装样式Free Hanging
排数2封装形式Receptacle
插入力4触头材料Phosphor Bronze
壳体材料Nylon总长度13.9 mm
包装数量1000主要材料InterconnectSystem
插针孔直径0.165"端接样式Crimp
第一触头极性Socket (Female)触点数6
接触件端接Crimp位数6

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列AMP-DUAC
制造商全称AMP-DUAC产品子类型护套

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C

文档与媒体

在线文档
TE.Connect?C=1&PN=106527-6&M=BYPN&LG=1&I=13
在线文档
106527-6?RQPN=106527-6

相关型号

1586493-6

1586493-6

te connectivity / amp

Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 6POS VERT PCB TIN 06P DUAC 94V0 W/PEG WO/DH LF 06P DUAC 94V0 W/PEG WO/DH LF Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥2.8560
详情
1586489-6

1586489-6

te connectivity / amp

Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 6POS VERT PCB TIN Headers & Wire Housings 06P DUAC 94V2 W/PEGS WO/DH LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HeaderAMP-DUAC0 Power Positions6 Signal PositionsPCB Mount Angle = VerticalSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥2.3936
详情
暂无图片

794467-2

te connectivity / amp

Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port CONN HEADER VERT 6POS GOLD PCB

详情
794550-6

794550-6

te connectivity / amp

Conn Housing PL 6 POS 4.2mm Crimp ST 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action 06P DUAC PLUG HSG 94V-2 PAN MT Pin & Socket Connectors 06P DUAC PLUG HSG 94V-2 PAN MT 4.2mm (.165") Centerline, 600 V, 9 A max. Dual Action 4.2mm (.165") Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACPlugNumber of Positions = 6UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥0.7956
详情
暂无图片

794485-1

te connectivity / amp

Conn Wire to Board HDR 6 POS 4.2mm Solder ST Thru-Hole CONN HEADER VERT 6POS TIN PCB

详情
暂无图片

794664-6

te connectivity / amp

Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port CONN HEADER VERT 6POS TIN

详情
暂无图片

794304-2

te connectivity / amp

Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port CONN HEADER VERT 6POS GOLD PCB

详情
1586037-6

1586037-6

te connectivity / amp

Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray VAL-U-LOK Series Connector System CONN HEADER 6POS VERT W/O PEGS TE Connectivity PE Series 4.2mm Pitch 6 Way Straight Heavy Duty Power Connector, Solder Termination, 9A Pin & Socket Connectors VERT HDR NO PEGS 6P Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray Product Highlights:Pin HeaderNumber of Circuits = 6UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, VERTICAL, W/DRAIN HOLES, 94V-2 Connector;PinHeader;UL94V-2 Straight header Pitch4.2 mm Poles 2 x 3 VAL-U-LOK, 1586037-6, TE Connectivity TE Connectivity VAL-U-LOK 系列 4.2mm节距 6路 直 RJ45-Rangierfeld, 焊接端接, 9A , 通孔 6P VERT HDR VAL-U-LOK V2

¥1.1016
详情
暂无图片

794448-1

te connectivity / amp

Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port CONN HEADER RTANG 6POS TIN PCB

详情
794594-6

794594-6

te connectivity / amp

Conn Housing PL 6 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action 06 DUAC PLUG HSG 94V-0 FR/HANG Headers & Wire Housings 06 DUAC PLUG HSG 94V-0 FR/HANG 794594-6 Conn Housing PL 6 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACPlug0 Power Positions6 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥1.3124
详情
1586039-6

1586039-6

te connectivity / amp

Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray VAL-U-LOK Series Connector System CONN HEADER 6POS VERT W/PEGS Pin & Socket Connectors VERT HDR W/PEGS 6P Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray Product Highlights:Pin HeaderNumber of Circuits = 6UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP Connector;PinHeader;UL94V-2 6P VAL-U-LOK VRT HDR W/P V2

¥0.8908
详情
1586495-6

1586495-6

te connectivity / amp

Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 6POS VERT PCB TIN Headers & Wire Housings 06P DUAC 94V0 W0/PEG WO/DH LF Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:ConnectorAMP-DUAC/PLConnector Type = Header0 Power Positions6 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 06P DUAC 94V0 W0/PEG WO/DH LF

¥2.9444
详情
1-794485-1

1-794485-1

TE Connectivity / AMP

Pin & Socket Connectors 06P AMP/DUAC VRT HDR ASSY LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 6POS VERT PCB TIN

¥4.3316
详情
1-794304-1

1-794304-1

TE Connectivity / AMP

ピン & ソケットコネクタ 6P AMPDUAC PWR VERT 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER VERT 6POS TIN PCB Pin & Socket Connectors 6P AMPDUAC PWR VERT 06P DUAC PWR CONN ASSY VRT LF 06P DUAC PWR CONN ASSY VRT LF Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥4.1072
详情
794542-6

794542-6

te connectivity / amp

Conn Housing PL 6 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HOUSING PLUG 6POS NATURAL Headers & Wire Housings 06P PLUG HSG F/H Conn Housing PL 6 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACPlug0 Power Positions6 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 06 DUAC PLUG HSG 94V-2 FR/HANG

¥0.9384
详情
1-794528-1

1-794528-1

TE Connectivity / AMP

Pin & Socket Connectors 06P DUAC RA ASSY LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 6POS R/A PCB TIN 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HeaderAMP-DUAC0 Power Positions6 Signal PositionsPCB Mount Angle = Right AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥3.3204
详情

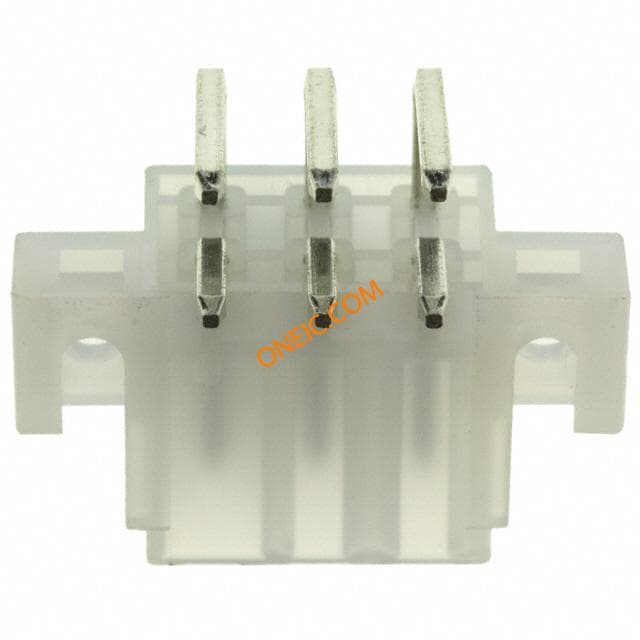

1586043-6
