1586043-6

点击放大查看

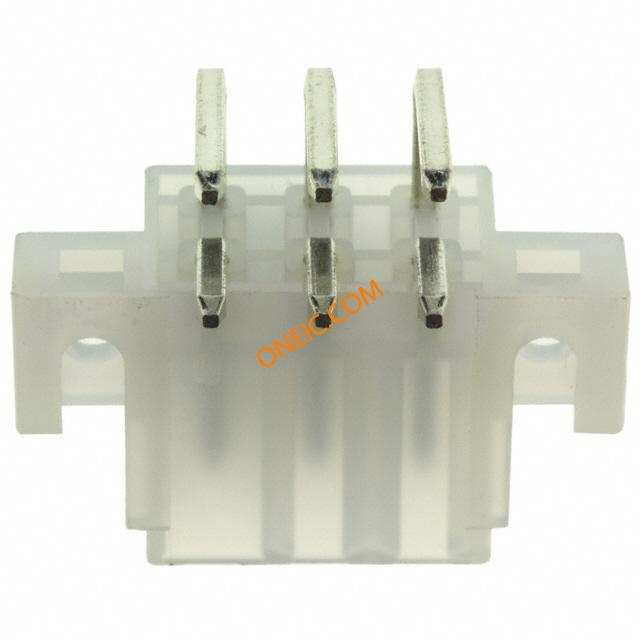

1586043-6

制造商
TE Connectivity Ltd.
描述Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port CONN HEADER 6POS R/A W/FLANGE Pin & Socket Connectors RA HDR SCREW MNT 6P Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 6UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,6POS,DUALROW,UL94V-2,SCREWMOUNT 6P VAL-U-LOK R/A HDR SCR MT V2
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Trays
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号208567
标准编号CSA, ULUL阻燃等级UL 94V-2

电气参数

额定电压600 V供电电压600
中心频率带有最大额定电流9 A

机械参数

间距4.2 mm宽度13 mm [ .5118 in ]
高度9.8 mm [ .384 in ]长度13.8 mm [ .543 in ]
密封型Not Sealed包装方式Bulk
排间距0.165" (4.20mm)端接方式Solder
触头类型Male Pin安装类型Through Hole
连接器类型Header, Shrouded接触镀层Tin
紧固类型Locking Ramp安装样式Through Hole
引脚数6排数2
封装形式Plug触头材料Brass
壳体材料Nylon安装特性安装孔
包装数量70面板安装类型通孔 - 焊接
主要材料InterconnectSystem端接样式插针
第一触头极性Pin (Male)触点数6
绝缘直径1.2 – 3.2 mm [ .047 – .122 in ]位数6
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局直插式端子柱长度3.5 mm [ .138 in ]
接触镀层厚度80 µm [ 2.03 µin ]

产品信息

类型Power连接器性别HDR
系列PE制造商全称VAL-U-LOK
产品子类型Headers选择性装载No
应用细节Power加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-40 – 105 °C [ -40 – 221 °F ]
封装热阻.063 mm [ 1.6 in ]

文档与媒体

PDF 文档
55239.pdf
