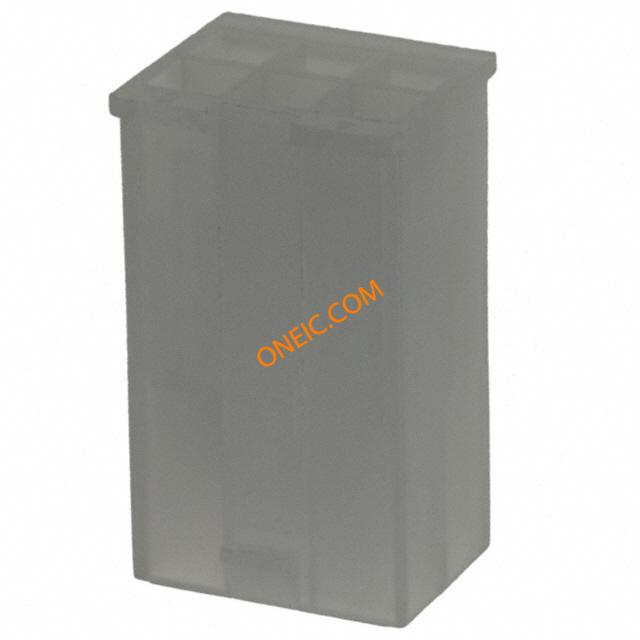

794542-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HOUSING PLUG 6POS NATURAL Headers & Wire Housings 06P PLUG HSG F/H Conn Housing PL 6 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACPlug0 Power Positions6 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 06 DUAC PLUG HSG 94V-2 FR/HANG |
| 分类 |
商业参数
| 其他名称 | 7945426 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 零件状态 | E28476 |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 开关功能 | Latched | 供电电压 | 600 |
机械参数
| 颜色 | Natural | 间距 | 4.2 mm |
| 宽度 | 23.9 mm [ .94 in ] | 高度 | 11.7 mm [ .46 in ] |
| 长度 | 13.8 mm [ .543 in ] | 密封型 | Not Sealed |
| 包装方式 | Bulk | 导线线规 | 18-26 AWG |
| 排间距 | 0.165" (4.20mm) | 触头类型 | Male Pin |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging | 排数 | 2 |
| 封装形式 | Plug | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 包装数量 | 500 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | AMP-DUAC |
| 产品子类型 | Plugs - Housings | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
