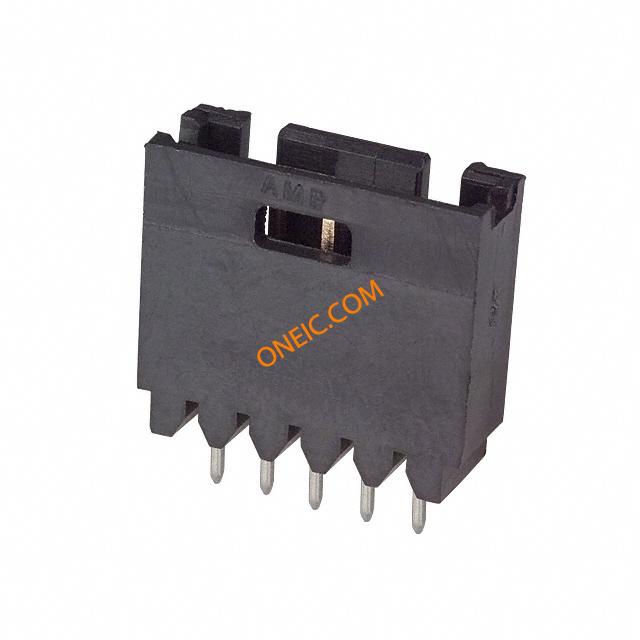

103414-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 5POS 30AU Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 5Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUSRHDRSHRD,05MODIIHDRSRSTSHRD.100CL 05 MODII HDR SRST SHRD .100CL |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 3 | 保护额定电压（VPR） | 750 Vrms |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 带有 | 锁定类型 | 不带 |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 稳定器 | 不带 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 第一连接器 | 否 | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | 标准 | 排数 | 1 |
| 外壳材料（壳体） | 4- 面 | 插入件材料 | 铜合金 |
| 触头材料 | 镍打底镀锡铅 | 壳体材料 | 热塑性 |
| 包装数量 | 34 | 面板安装类型 | 通孔 |
| 主要材料 | InterconnectSystem | 端接样式 | 插针 |
| 第一连接器类型 | 带罩 | 外径 | .64 mm [ .025 in ] |
| 触点数 | 5 | 端接表面处理 | 带有 |
| 位数 | 5 | 安装孔直径 | 带有 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 3.3 mm [ .13 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
| 外壳尺寸，连接器布局 | 1.778 mm [ .07 in ] | 第一连接器安装特征 | 否 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 钥匙类型 | 否 | 制造商全称 | AMPMODU/ModIiSeries |
| 产品子类型 | 连接器 | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 防护等级 | 带罩 |
| 工作温度 | -65 – 105 | 封装热阻 | 1.397 mm [ .055 in ] |
| 结工作温度 | 否 | ||
