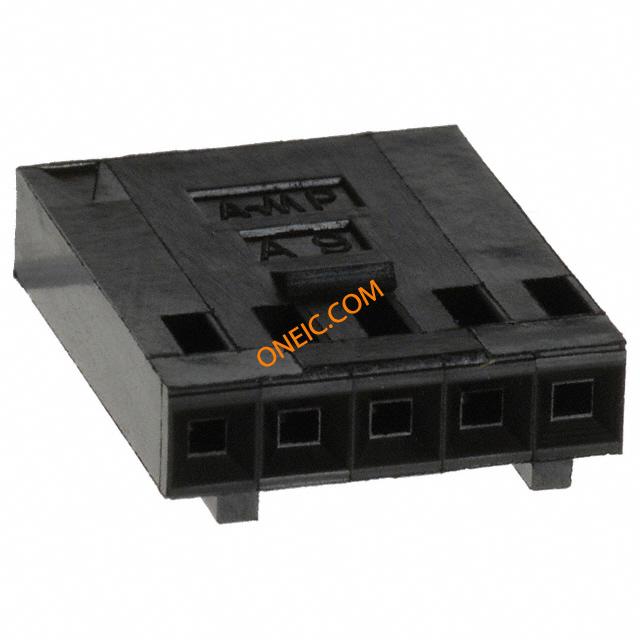

102241-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 5POS .100 POLAR Housing FH 5 way Rec 2.54mm AmpModu Headers & Wire Housings POLARIZED HSG 5 SNGL detent latching Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 5Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR, IDC Housing,Connector;ModIV;Single;5;250VAC;3A;750VYes Crimp housing Pitch2.54 mm Poles 5 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-3, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 5 路 直 母 电缆安装 PCB 壳体 05 MODIV HSG COMP SR .100 POL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | ULListed,CSACertified,RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 认证机构 | CSA,UL |
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 额定电压 | 250 VAC |
| 开关功能 | Detent Latching | 击穿电压 | 750V |
| 最大额定电流 | 3 A | 绝缘电阻 | 5000Megohms |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 宽度 | 4.62mm |
| 高度 | 4.62 mm | 长度 | 12.7mm |
| 重量 | 0.005 | 包装方式 | Bulk |
| 导线线规 | 22-30 AWG | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 引脚间距 | :2.54mm |
| 极化 | Yes | 外壳颜色 | Black |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | Nylon |
| 总长度 | 12.7 mm | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.1" | 触点数 | 5 |
| 接触件端接 | Crimp | 位数 | 5 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 制造商全称 | AMPMODU/MODIVSeries | 产品子类型 | Wire Housings |
| 矩阵（列×行） | 0.1in. | 适用产品/相关产品 | Centerline Single-Row Connector |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
