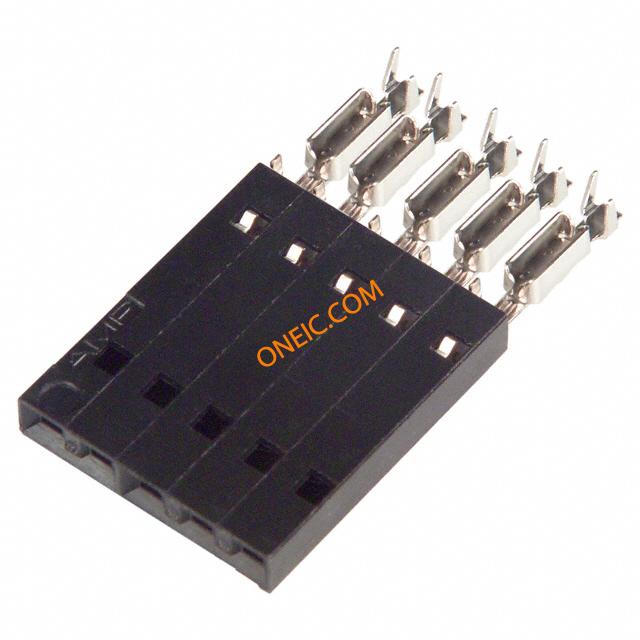

5-103975-4

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 5POS .100 15AU Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 5Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X5 MTE RCPT SR PLAIN .100CL
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

供电电压	267 V	接触电阻	15 mohm
输入电阻	5000	连接器阻抗	刺破式压接 (IDC), 压接
最大额定电流	3/Contact A	保护额定电压（VPR）	600 VAC

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	2.49 mm
长度	50.55 mm [ 1.99 in ]	包装方式	Tube
导线类型	Ribbon Cable	壳体颜色	黑色
导线线规	22-26 AWG	端接方式	IDT
触头类型	Female Socket	第二连接器	Without
外壳颜色	Black	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	Cable	排数	1
插入件材料	磷青铜	操作力	Standard
触头材料	Phosphor Bronze	壳体材料	Thermoplastic
总长度	22.8 mm	包装数量	44
面板安装类型	不带	电缆端接方式	IDC
端接样式	插座	触点数	5
绝缘直径	1.37 mm [ .054 in ]	位数	5
兼容外壳尺寸（如TM-700等）	与接头配合	安装孔直径	不带
典型触点布局	同轴	接触镀层厚度	15µin (0.38µm)
静电放电屏蔽	带有

产品信息

备注	带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。	类型	IDC Connector
连接器性别	RCP	产品特性	Closed End
产品子类型	连接器

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-65C to 105C
