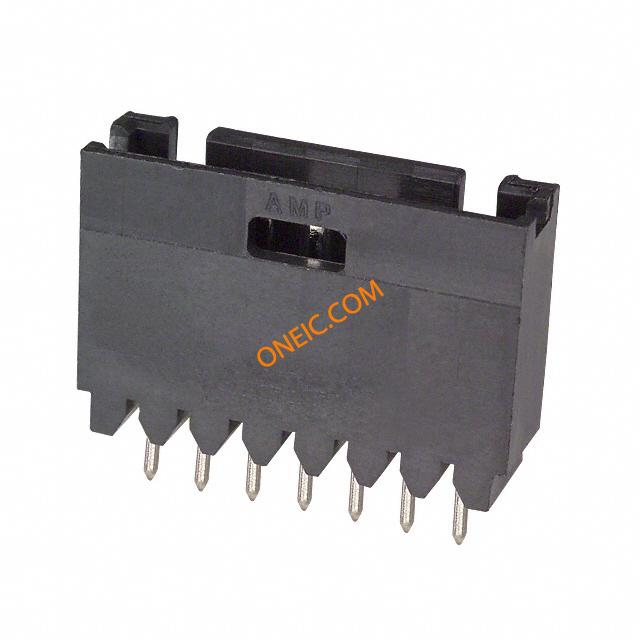

103080-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Headers & Wire Housings SHROUDED VERT SNGL 7 with standoffs .100 inch AMPMODU Headers CONN HEADER VERT 7POS PCB TIN 07 MODII HDR SRST SHRD .100CL 07 MODII HDR SRST SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors, AMPMODU 7 Position Through-Hole Single Row Straight .100 Inch Shrouded Header |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装规格 | 25 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | No | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 最大额定电流 | 3 A | 绝缘电阻 | 5000 MOhms |
| 保护额定电压（VPR） | 750 Vrms | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 带有 | 锁定类型 | 不带 |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 稳定器 | 不带 |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触点形式 | Male Pin | 触头类型 | Male Pin |
| 第一连接器 | 否 | 安装类型 | Vertical |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin-Lead Over Nickel |
| 安装样式 | PCB | 排数 | 1 |
| 外壳材料（壳体） | 4- 面 | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 包装数量 | 25 | 面板安装类型 | 通孔 |
| 端接样式 | Solder | 第一连接器类型 | 带罩 |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 触点数 | 7 | 端接表面处理 | 带有 |
| 位数 | 7 | 柱体长度（配合） | 6.1 mm |
| 安装孔直径 | 带有 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 3.3 mm | 接触镀层厚度 | 100µin (2.54µm) |
| 静电放电屏蔽 | 不带 | 每排/每行位置数 | All |
| 外壳尺寸，连接器布局 | 1.778 mm [ .07 in ] | 第一连接器安装特征 | 否 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 产品子类型 | Headers - Shrouded | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 防护等级 | 带罩 |
| 工作温度 | - 65 C to + 105 C | 封装热阻 | 1.397 mm [ .055 in ] |
| 结工作温度 | 否 | ||
