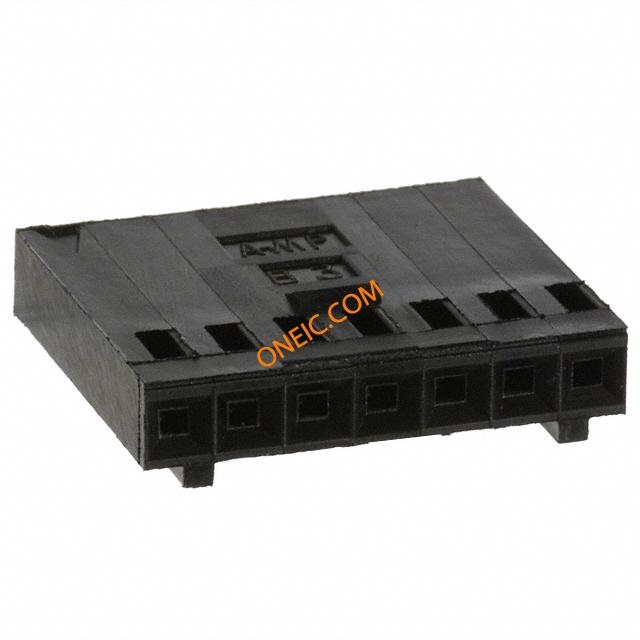

102241-5

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 7POS .100 POLAR Housing 7 way receptacle 2.54mm AmpModu Headers & Wire Housings POLARIZED HSG 7 SNGL detent latching Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp7 PositionHousing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,7POSITION,.100IN,SINGLEROW,LATCHED Crimp housing Pitch2.54 mm Poles 7 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-5, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 7 路直母电缆安装 PCB 连接器外壳 07 MODIV HSG COMP SR .100 POL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94 V-0

电气参数

额定电压	250 VAC	极数	7
开关功能	Detent Latching	供电电压	250 VAC
接触电阻	12 mΩ	输入电阻	5000
连接器阻抗	压接	最大额定电流	3 A
绝缘电阻	5000 MOhm	最小供电电压	250VAC
保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	4.62mm
间距	2.54 mm	宽度	15.24mm
高度	4.62 mm	长度	17.78mm
锁定类型	带有	包装方式	Bulk
壳体颜色	黑色	导线线规	20-32 AWG
方向	直	触头类型	Female Socket
外壳颜色	Black	安装类型	Straight
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	1	连接器样式	Single row
插入件材料	铍铜	壳体材料	Nylon
总长度	17.78 mm	包装数量	1
主要材料	InterconnectSystem	端接样式	插座
连接器颜色	black	触点数	7
接触件端接	Crimp	位数	7
第一连接器极性	Female	兼容外壳尺寸（如TM-700等）	公端
安装孔直径	带有	典型触点布局	同轴
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings
放大器类型	带有	连接方式	Wire-Board
适用产品/相关产品	Wire-to-Board Connector
