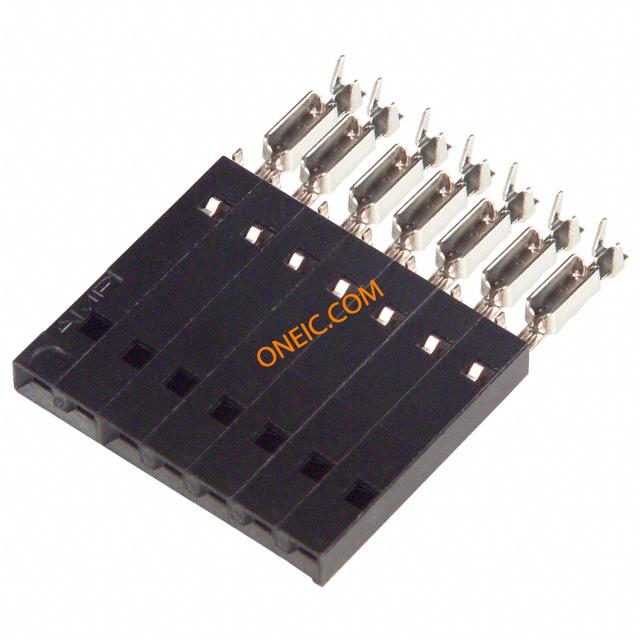

103975-6

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 7POS .100 15AU Headers & Wire Housings 2X7 RCPT SR PLAIN .100CL 2X7 MTE RCPT SR PLAIN .100CL 2X7 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	标准包装规格	30
产品类别	Headers & Wire Housings	标准包装数量	30
工厂包装数量	30

合规参数

RoHS	Contains lead / RoHS non-compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

供电电压	267 V	接触电阻	15 mΩ
输入电阻	5000	连接器阻抗	刺破式压接 (IDC), 压接
最大额定电流	3 A	保护额定电压（VPR）	600 VAC

机械参数

颜色	Black	间距	2.54 mm
高度	2.49 mm [ .098 in ]	长度	35.56 mm [ 1.4 in ]
锁定类型	不带	包装方式	Tube
导线类型	Ribbon Cable	壳体颜色	黑色
导线线规	22-26 AWG	排间距	2.54 mm
端接方式	IDT	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Wire
排数	1	压力（PSI）	标准
插入件材料	磷青铜	触头材料	Phosphor Bronze
壳体材料	Thermoplastic	包装数量	30
面板安装类型	不带	电缆端接方式	IDC
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	7	绝缘直径	1.37 mm [ .054 in ]
位数	7	兼容外壳尺寸（如TM-700等）	与接头配合
安装孔直径	不带	典型触点布局	同轴
接触镀层厚度	15µin (0.38µm)	静电放电屏蔽	带有
接触件镀层 - 插柱（配合端）	亮光

产品信息

备注	带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。	类型	IDC Connector
连接器性别	RCP	系列	AMPMODU MTE
产品特性	Closed End	产品子类型	Headers

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

103975-6?RQPN=103975-6

相关型号

103361-5

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 7POS 30AU Headers & Wire Housings SHROUDED RA SINGLE 7 with standoffs Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 7Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 07 MODII HDR SRRA SHRD .100CL

¥6.6640

详情

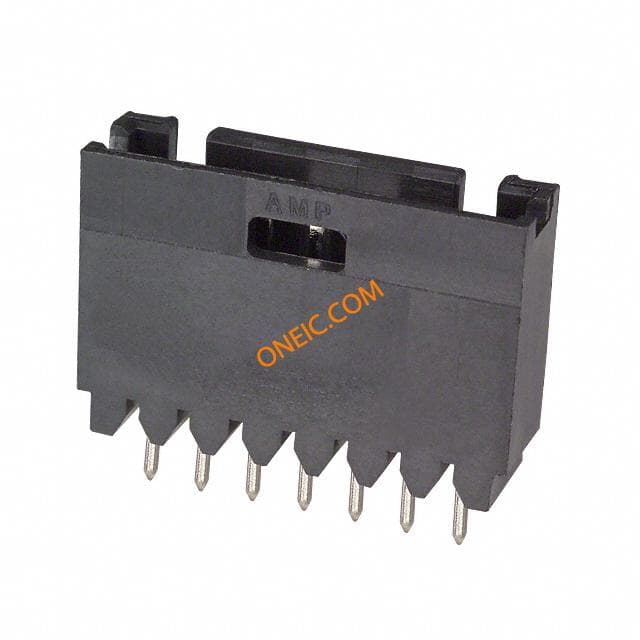

103080-5

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Headers & Wire Housings SHROUDED VERT SNGL 7 with standoffs .100 inch AMPMODU Headers CONN HEADER VERT 7POS PCB TIN 07 MODII HDR SRST SHRD .100CL 07 MODII HDR SRST SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors, AMPMODU 7 Position Through-Hole Single Row Straight .100 Inch Shrouded Header

¥7.7520

详情

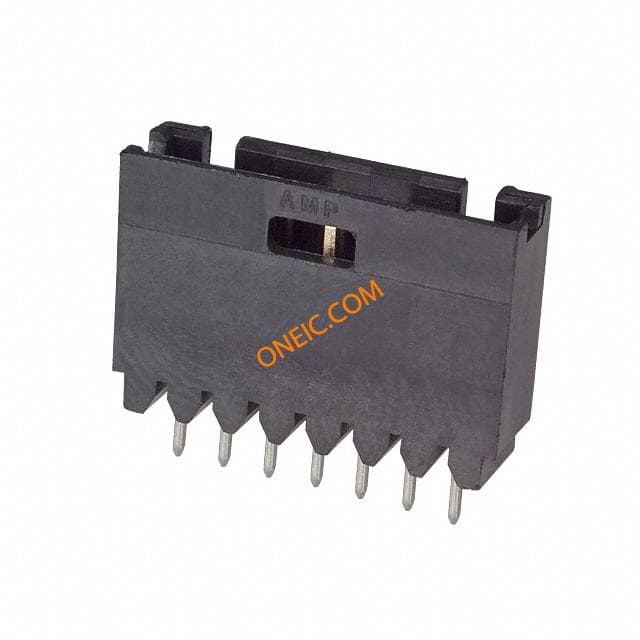

5-102202-4

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 7POS 15AU Headers & Wire Housings HDR 1X07P VRT T/H Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded7 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONNECTOR HEADER 7POS, 2.54MM Connector: wire-board; AMPMODU MOD II; socket; male; PIN:7; 2.54mm 07 MODII HDR SRST SHRD LF

¥7.0040

详情

102203-4

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 7POS 15AU Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 7Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 07 MODII HDR SRRA SHRD .100CL

¥11.2200

详情

104345-5

te connectivity / amp

Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 7POS VERT 15AU

详情

104344-5

te connectivity / amp

Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 7POS VERT 30AU Headers & Wire Housings 07 MODII HDR SRST B/A W/HD 07 MODII HDR SRST B/A W/HD 07 MODII HDR SRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors,

¥2.1556

详情

5-103080-5

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 7POS PCB TIN Headers & Wire Housings 7P HDR SRST SHROUDED .100 Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:board to board, AMPMODU, pcb connectors, AMPMODU 7 Position Through-Hole Single Row Straight 2.54 mm Shrouded Header 07 MODII HDR SRST SHRD .100CL

¥5.5760

详情

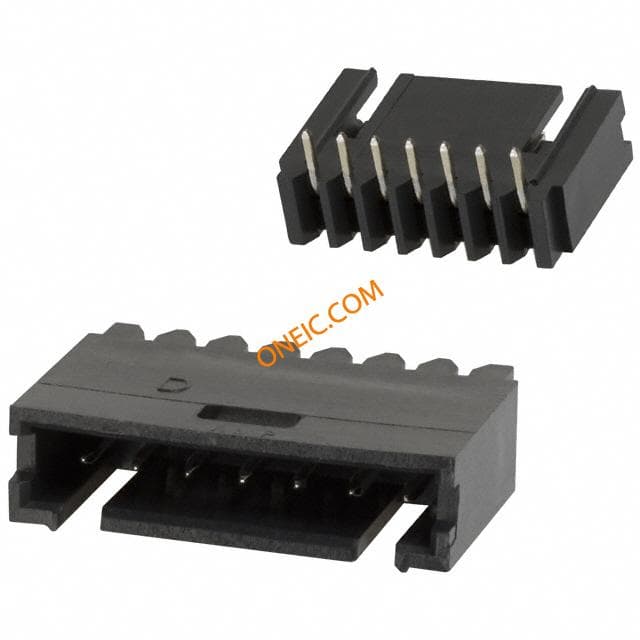

5-102523-5
