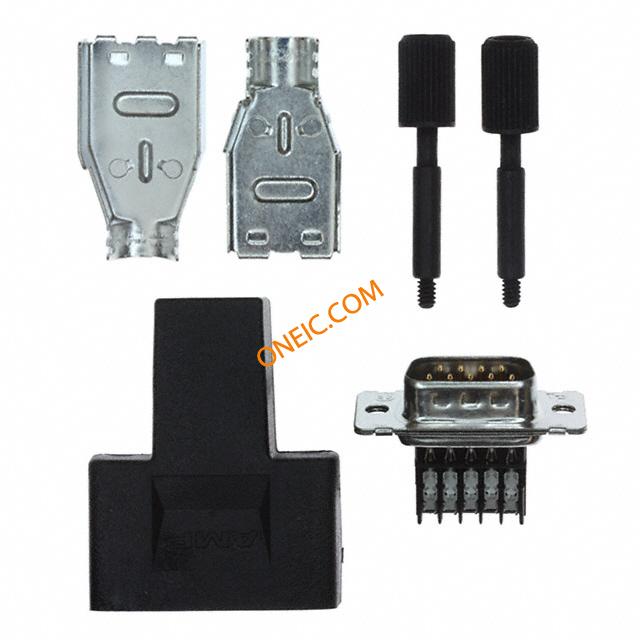

1-747944-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Bulk D-Sub Standard Connectors DSUB E09P IDC 26-22AWG KIT Standard Cable Connectors CONN D-SUB PLUG 9P 22-26AWG GOLD Conn D-Subminiature PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Bulk Product Highlights:Connector KitProduct Series = HDE-20 (IDC)Number of Positions = 9ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, PLUG Conn;D-Sub;CablePlug;9Pos;STR;HDE-20Series;IDC;26-22AWG;FrontMetalShell TE Connectivity AMPLIMITE HDE-20 9触点 D-Sub插头连接器套件, 套件包含D-Sub 引脚连接器套件 09 SHLDG ENCL PLUG,LEAD FREE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85366910 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDE-20 Series | 额定电压 | 250V |
| 最大额定电流 | Varies by Wire Gauge | ||
机械参数
| 颜色 | Black | 重量 | 0.009 |
| 包装方式 | Bulk | 外壳尺寸 | 1 |
| 导线线规 | 26-22 | 端接方式 | IDC, Discrete Wire |
| 触头类型 | Signal | 基体材料 | :Steel |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Tin |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Cable Side; Male Jackscrew (4-40) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 本体材料 | :Metal |
| 屏蔽材料 | Steel | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 主要材料 | D-Subminiature |
| 端接样式 | IDC | 触点数 | 9 |
| 接触件端接 | :IDC / IDT | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 类型 | CablePlug | 连接器性别 | Male |
| 产品特性 | Backshell, Grounding Indents, Shielded | 制造商全称 | HDE-20 |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
