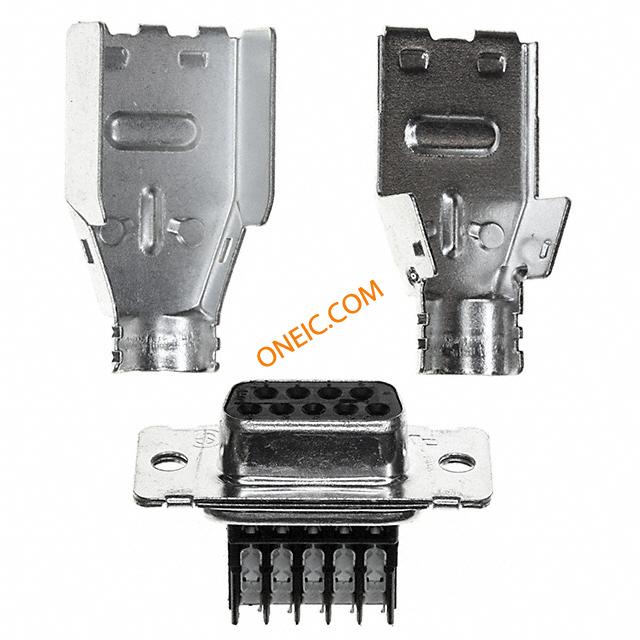

747516-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS 2.76mm IDT ST Cable Mount 9 Terminal 1 Port Bulk D-Sub Standard Connectors DSUB E09S IDC 26-22AWG KIT Standard Cable Connectors CONN D-SUB RECEPT 9P 22-26AWG AU Conn D-Subminiature SKT 9 POS 2.76mm IDT ST Cable Mount 9 Terminal 1 Port Bulk Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub 09 HDE PMOLD RCPT, LEAD FREE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 防护类型 | UL 94V-0 |
| 抗辐射加固 | No | ||
电气参数
| 额定电压 | 250V | 连接器阻抗 | 刺破式压接 (IDC) |
| 最大额定电流 | Varies by Wire Gauge | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 38.6 mm |
| 间距 | 2.76 mm | 高度 | 12.92 mm |
| 外形尺寸(长x宽) | 1 | 锁定类型 | 带有 |
| 包装方式 | Tray | 屏蔽 | 是 |
| 电缆类型 | 分离式导线, 环状护套电缆 | 导线线规 | .15 – .4 mm² [ 26 – 22 AWG ] |
| 端接方式 | IDT | 触头类型 | Signal |
| 外壳表面处理 | 锡 | 安装类型 | Cable Mount |
| 外壳镀层 | Tin | 端子尺寸 | 20 |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Tin over Nickel |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | 磷青铜 |
| 屏蔽材料 | 钢 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 31.19 mm |
| 安装特性 | 无 | 包装数量 | 1 |
| 绝缘高度 | 是 | 端接样式 | IDC |
| 外径 | 4.19 – 11.56 mm [ .165 – .455 in ] | 触点数 | 9 |
| 绝缘直径 | 1.52 mm [ .06 in ] | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 26 – 22 | 线缆外径（最大） | 4.19 – 11.56 mm [ .165 – .455 in ] |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 备注 | 所有元器件发货时均未装配，每个部件都是批量包装好的。, 护套和编织层移除后的最大电缆直径。 | 类型 | D-Subminiature |
| 等级 | 标准 | 连接器性别 | SKT |
| 系列 | 747 | 产品特性 | Backshell, Shielded |
| 预装 | 否 | 产品子类型 | 连接器 |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
