点击放大查看

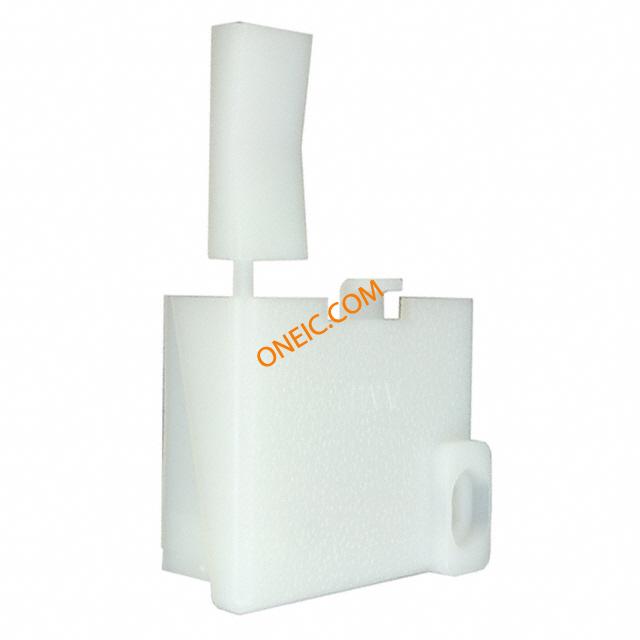

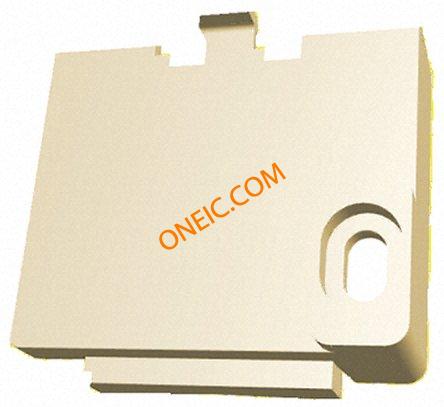

1-640724-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 15 POS Strain Relief Nylon Natural Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 15POS Strain Relief 15 way Natural UMNL Connector; Soft Shell; 15; Universal MATE-N-LOK; Nylon; Matrix; AMP Brand Power to the Board STRAIN RELIEF 15P Connector Accessories 15 POS Strain Relief Nylon Natural Product Highlights:Strain ReliefUniversal MATE-N-LOKNylon Housing MaterialColor = NaturalNumber of Circuits = 15Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, 15WAY, NYLON Connector;SoftShell;15;UniversalMATE-N-LOK;Nylon;Matrix;AMPBrand 15P UMNL STR/REL & INSRT NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 输出数量 | 15 | 连接器类型 - 电压输入 | Universal MATE-N-LOK |
机械参数
| 颜色 | Natural | 深度 | 12.19mm |
| 宽度 | 38.62 mm | 长度 | 33.02mm |
| 重量 | 0 | 材料（通用） | Nylon |
| 包装方式 | Bulk | 安装类型 | Screw |
| 线径 | 5.08 â 21.59 [0.200 â 0.850] | 连接器类型 | SoftShell |
| 安装样式 | Snap In | 供货尺寸 | Yes |
| 线束直径 | 21.59mm | 壳体材料 | Nylon |
| 主要材料 | Interconnect | 电缆端接方式 | Cable Clamp |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 连接器颜色 | Natural | 触点数 | 15 |
| 位数 | 15 | 绝缘材料 - 材质 | :Nylon |
| 典型触点布局 | Matrix | ||
产品信息
| 备注 | Strain relief part number represents one half of a strain relief. Two of a part | 类型 | Strain Relief |
| 系列 | Mate-N-Lok | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Strain Relief | 附件类型 | Strain Relief |
| 电路数 | 15 | 射频系列/标准 | 640724 |
| 有铅工艺兼容 | :Yes | 适用产品/相关产品 | Universal MATE-N-LOK Series |
