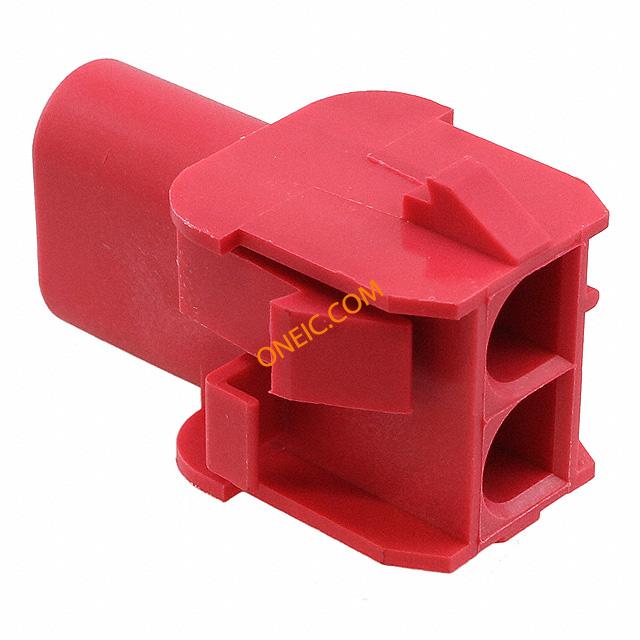

1-350778-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 6.35mm Crimp ST Cable Mount One Piece CONN U-MNL CAP 2POS 94V-0 RED Pin & Socket Connectors 02P UMNL V0 CAP HSG RED 02P UMNL V0 CAP HSG RED 02P UMNL V0 CAP HSG RED Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP |
| 分类 |
商业参数
| 标准包装规格 | 1 | 标准包装数量 | Bulk |
合规参数
| RoHS | Not applicable / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 供电电压 | 600 | ||
机械参数
| 颜色 | Red | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 红色 | 本体尺寸 | .76 – 2.29 mm [ .03 – .09 in ] |
| 触头类型 | Male or Female | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Without |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 封装形式 | Receptacle | 壳体材料 | 尼龙 |
| 包装数量 | 1 | 面板安装类型 | 带有 |
| 端接样式 | 插针 | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
| 兼容外壳尺寸（如TM-700等） | 适当的通用 MATE-N-LOK 插头 | 典型触点布局 | 直插式 |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | 护套 |
| 装配配置 | Without | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
