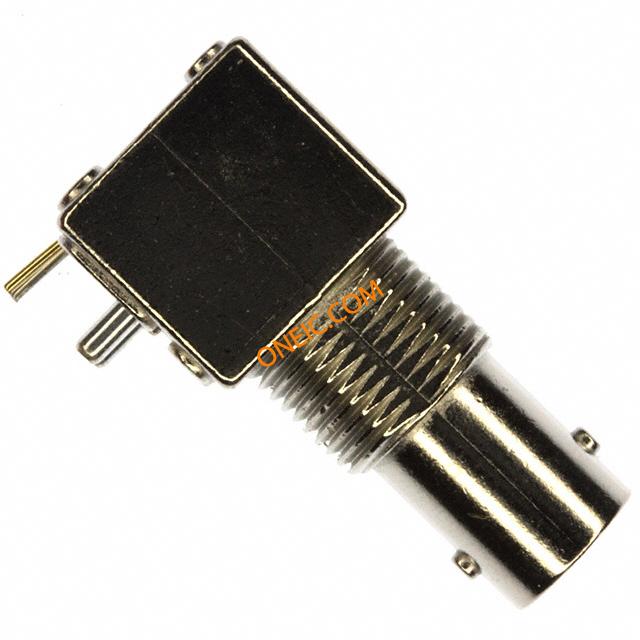

点击放大查看
1-1634508-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB ZDC/BNC R/A shielded PCB socket, 50 ohm RF Connectors / Coaxial Connectors Shld PCB Skt 75 Ohm Nickel MP Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJack ReceptacleTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, R/A, 75R, SHIELD BNCSHLDLPPCBSKT75OHMNICKELPLATEDMP Socket; BNC; female; angled 90°; 75Ω; THT; polyetylene; gold plated TE Connectivity Greenpar 直角 75Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC R/A Shld PCB Skt 75Ohm Nickel Plate |
| 分类 |
商业参数
| 产品 | PCB Receptacles | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 2 GHz | 阻抗 | 75 Ohm |
| 额定电压 | 500V | 最大频率 | 2GHz |
| 工作电压 | :500V | 接触电阻 | :1.5mohm |
| 击穿电压 | :1500V | 绝缘电阻 | :5000Mohm |
机械参数
| 尺寸 | Standard | 深度 | 14.76 mm |
| 高度 | 15.2 mm | 重量 | 0.01 |
| 包装方式 | Tray | 电缆类型 | :- |
| 本体表面处理 | Nickel | 方向 | Right Angle |
| 端接方式 | Solder | 基体材料 | Zinc Alloy |
| 外壳颜色 | Silver | 安装类型 | Through Hole |
| 行程角度 | RightAngle | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold Over Nickel Over Copper | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | Through Hole |
| 壳体镀层 | Nickel Over Copper | 连接器样式 | BNC |
| 触头材料 | Brass | 总长度 | 35.57 mm |
| 包装数量 | 1 | 主要材料 | BNC |
| 连接器 - 电缆 | socket | 端接样式 | Solder |
| 连接器颜色 | :Silver | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polymethylpentene (PMP) |
| 绝缘材料 - 类型 | Polyethylene | 绝缘材料 - 材质 | :Zinc |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Right Angle | 触点材料 - 镀层 | gold plated |
| 第一连接器安装类型 | :PCB | ||
产品信息
| SPG | 1 | 类型 | ZDC/BNC |
| 连接器性别 | RCP | 系列 | :- |
| 产品特性 | Board Guide | 极性 | Normal |
| CAD图纸 | 3D CAD Model | 连接类型 | PCB |
| 单元数量 | 1 | 射频系列/标准 | 1634508 |
环境参数
| 插拔次数 | :50 | 工作温度 | -55°C ~ 85°C |
文档与媒体
相关型号

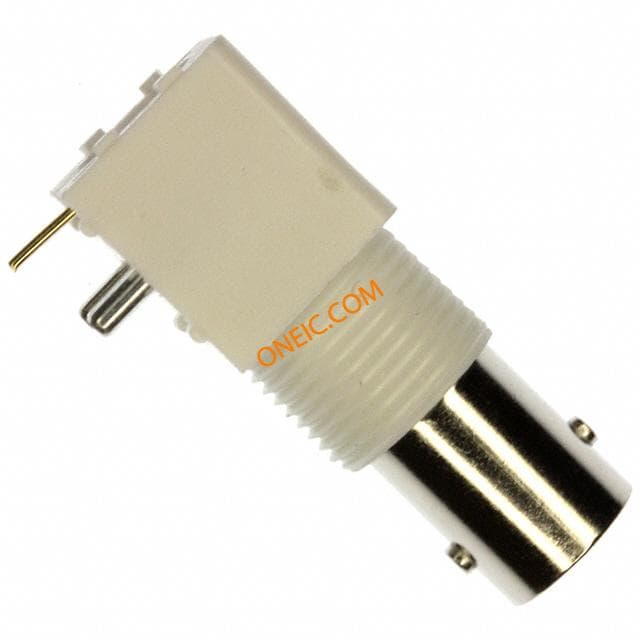

1-1478031-0
te connectivity / amp
Conn BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB RF Connectors / Coaxial Connectors PCB Skt MP White 75Ohm Conn BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 75R, WHITE BNCINSLPPCBSKT75OHMMPWHITE TE Connectivity 直角 75Ω 通孔 BNC 连接器, 插口, 焊接 端接 BNC Ins LP PCB Skt 75Ohm White
5-1634504-2
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 75Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 75 OHM SOLDER BNC Ni-pl insul bulkhead socket, 75 ohm RF Connectors / Coaxial Connectors BH Skt 75Ohm Nickel Gold Conn ZDC/BNC RCP 0Hz to 4GHz 75Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To WireBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, BULKHEAD, 75OHM BNCINSBHSKT75OHMNICKELGOLDPLTD Socket; BNC; female; insulated; straight; 75Ω; soldering; polyester BNC appliance socket, straight 75 Ohm, 5-1634504-2, TE Connectivity TE Connectivity Greenpar 直 75Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins BHSkt 75Ohm Nickel Gold Pltd

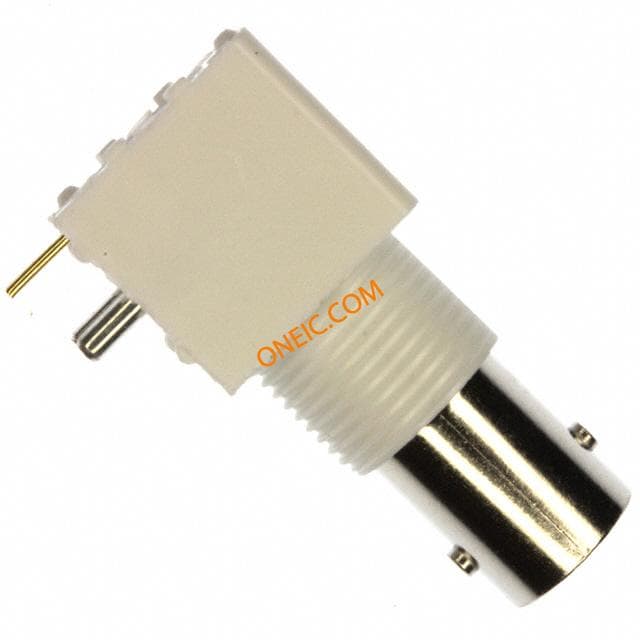

1-1478032-0
te connectivity / amp
Conn BNC F 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB RF Connectors / Coaxial Connectors PCB SCKT MP White 75Ohm Conn BNC F 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, R/A, 75R, WHITE BNCINSPCBSKT75OHMMPWHITE TE Connectivity 直角 75Ω 通孔 BNC 连接器, 插口, 焊接 端接 BNC Ins R/A PCB Skt 75Ohm White

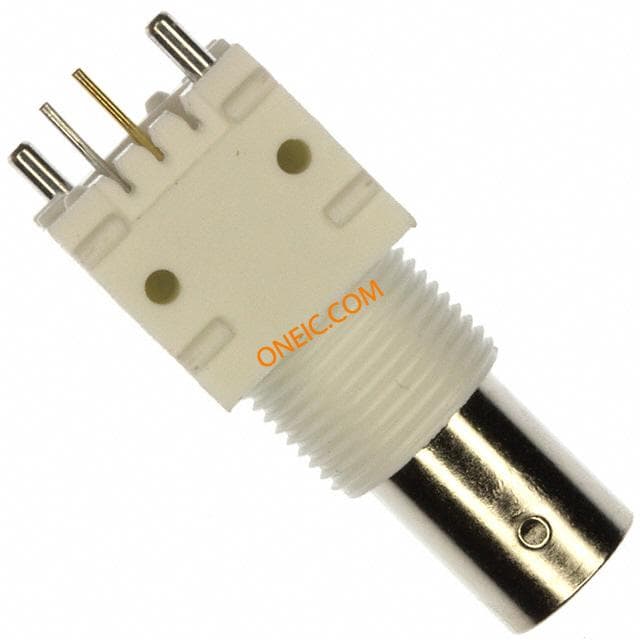

1-1478033-0
te connectivity / amp
Conn ZDC/BNC F 0Hz to 2GHz 75Ohm Solder ST Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK STR 75 OHM PCB BNC white insul straight socket, 75 ohm RF Connectors / Coaxial Connectors Str PCB Skt White MP 75Ohm Conn ZDC/BNC F 0Hz to 2GHz 75Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 75R, WHITE BNCINSSTRPCBSKT75OHMWHITEMP TE Connectivity 直 75Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 75Ohm White
5-1634516-5
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Crimp ST Cable Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 75 OHM CRIMP BNC Ni-pl bulkhead jack, 75 ohm, RG59 RF Connectors / Coaxial Connectors RG58 BH J Hex Nickel 75Ohm Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Crimp ST Cable Mount Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK, BULKHEAD, 75R, RG59B/U BNCRMBHJHEX75OHMNICKELPLTDRG59B/U,62A/U,140/U,210/U,URM90,KX6A,KX TE Connectivity 直 75Ω 面板安装 BNC 连接器, 插口, 压接 端接, RG140/U, RG210/U, RG59 B/U, RG62 A/U电缆, 镀镍本体 BNC RM BHJ Hex 75Ohm Nickel Pltd RG59B/U
5-1634514-1
te connectivity / amp
Conn ZDC/BNC F 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 75 OHM SOLDER BNC Ni-pl straight jack, 75 ohm, RG59 RF Connectors / Coaxial Connectors Str Jk Hex 75Ohm Nickel Conn ZDC/BNC F 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK, 75R, RG59B/U, STRAIGHT BNCSTRJKHEX75OHMNICKELPLTDRG59B/U,62A/U,140/U,210/U,URM90,KX6A,KX Plug; BNC; female; straight; 75Ω; crimped; for cable; gold plated BNC cable connector, straight 75 Ohm, 5-1634514-1, TE Connectivity TE Connectivity 直 75Ω 电缆安装 BNC 连接器, 插口, 压接 端接, RG140/U, RG210/U, RG59 B/U, RG62 A/U电缆, 镀镍本体 BNC Str Jk Hex 75Ohm Nickel Pltd RG59B/U

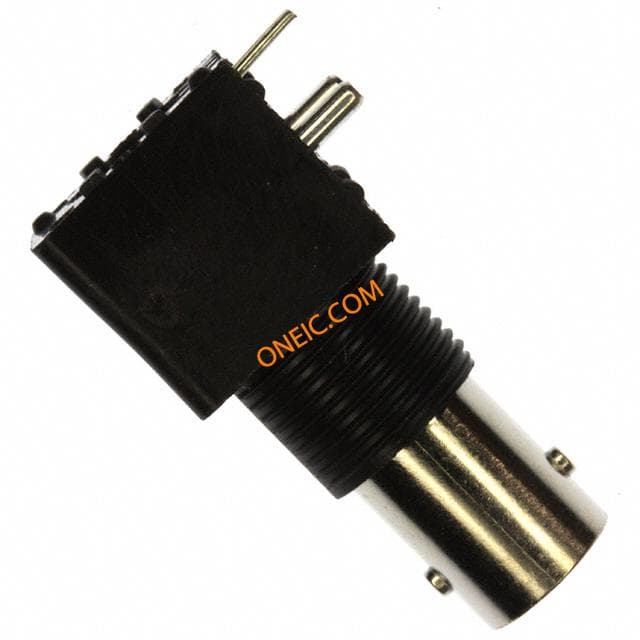

1-1634622-0
te connectivity / amp
Conn BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB BNC black r/a insul PCB socket ,75 ohm RF Connectors / Coaxial Connectors PCB Socket MP Black 75Ohm Conn BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, R/A, 75R, BLACK BNCINSPCBSKT75OHMMPBLACK TE Connectivity Greenpar 直角 75Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins R/A PCB Skt 75Ohm Black
1-1634816-0
te connectivity / amp
Connector Accessories Jam Nut Brass BNC RF Connectors CONN BNC/TNC NUT HEXAGONAL BNC/TNC hexagonal nut Screws & Fasteners Hexagonal Nut Connector Accessories Jam Nut Brass Product Highlights:Jam NutConnector Type = ZDC/BNCCommercial GradeBrass Body MaterialNickel Body PlatingSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 NUT, BNC / TNC BNC/TNCHEXAGONALNUT BNC / TNC Hexagonal Nut Hex Nut BNC, 1-1634816-0, TE Connectivity TE Connectivity Greenpar系列 螺母, 使用于BNC 和 TNC 连接器

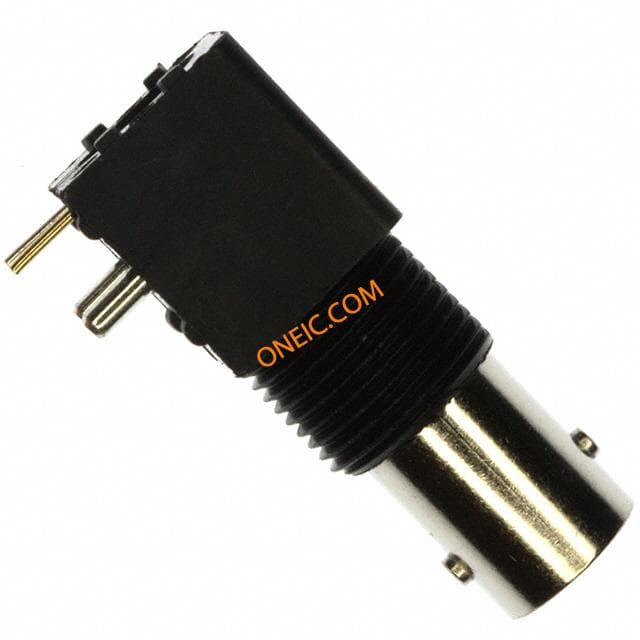

1-1634624-0
te connectivity / amp
Conn BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB BNC black lo profil insul skt,r/a,75ohm RF Connectors / Coaxial Connectors PCB Skt MP Black 75Ohm Conn BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardPCB Mount Angle = Right AngleSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 75R, BLACK BNCINSLPPCBSKT75OHMMPBLACK TE Connectivity 75Ω 直角 通孔 母 BNC 连接器 , 0 → 2GHz, 焊接 端接, 镀镍本体 BNC Ins LP PCB Skt 75Ohm Black

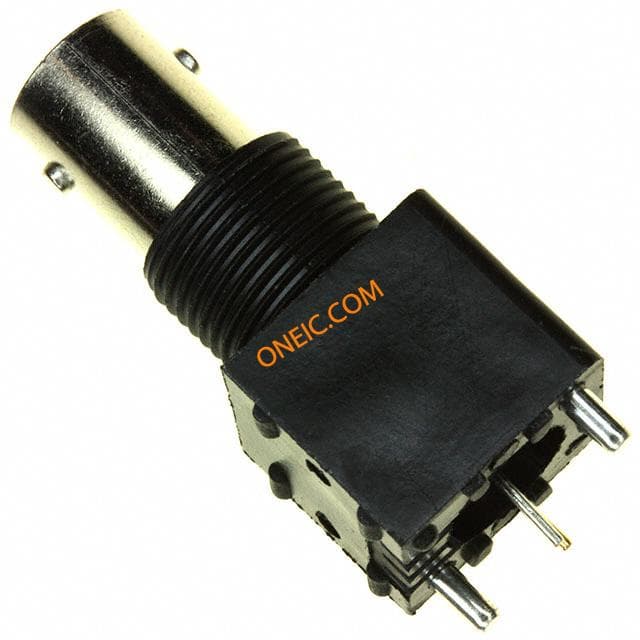

1-1634629-0
