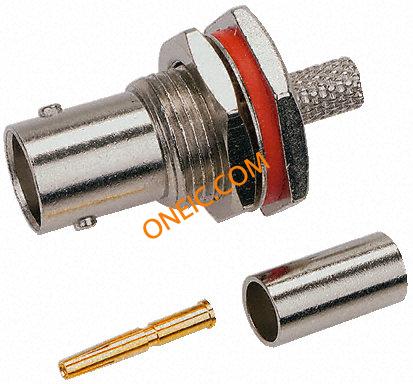

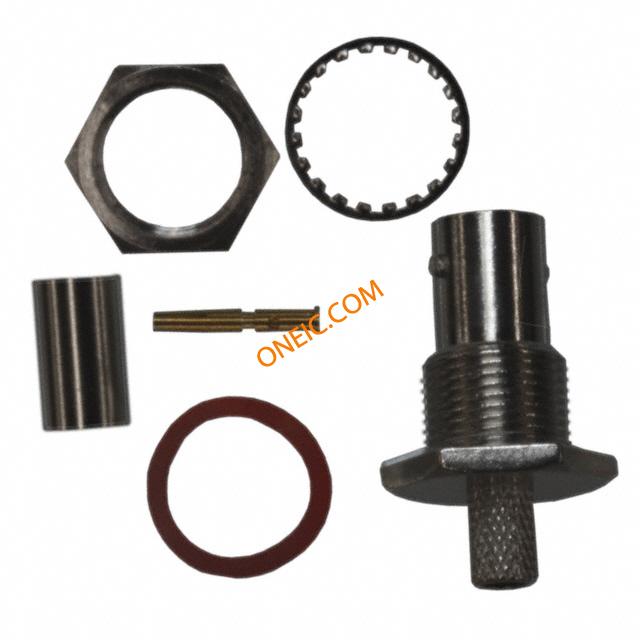

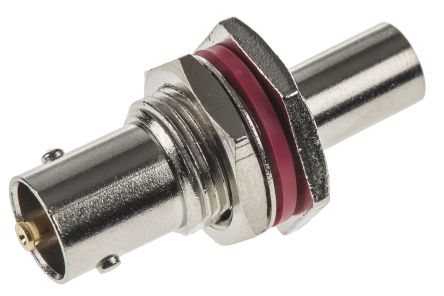

5-1634516-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Crimp ST Cable Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 75 OHM CRIMP BNC Ni-pl bulkhead jack, 75 ohm, RG59 RF Connectors / Coaxial Connectors RG58 BH J Hex Nickel 75Ohm Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Crimp ST Cable Mount Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK, BULKHEAD, 75R, RG59B/U BNCRMBHJHEX75OHMNICKELPLTDRG59B/U,62A/U,140/U,210/U,URM90,KX6A,KX TE Connectivity 直 75Ω 面板安装 BNC 连接器, 插口, 压接 端接, RG140/U, RG210/U, RG59 B/U, RG62 A/U电缆, 镀镍本体 BNC RM BHJ Hex 75Ohm Nickel Pltd RG59B/U |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | A97574 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 2 GHz | 阻抗 | 75 Ohm |
| 额定电压 | 500V | 最大频率 | 2GHz |
| 工作电压 | :500V | 接触电阻 | :1.5mohm |
| 击穿电压 | :1500V | 绝缘电阻 | :5000Mohm |
| 阻抗 - 不平衡/平衡 | :RG59 | ||
机械参数
| 尺寸 | Standard | 深度 | 17.5 mm |
| 重量 | 0.01 | 直径 | 17.5 mm |
| 包装方式 | Bulk | 电缆类型 | RG-58C, RG-141A, Belden 9907, KX15, URM43, URM76 |
| 本体表面处理 | Nickel | 电缆组 | RG-59B, 62A, 140, 210 |
| 方向 | Vertical | 端接方式 | Crimp |
| 基体材料 | Zinc Alloy | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold Over Nickel Over Copper |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 安装样式 | Cable | 壳体镀层 | Nickel Over Copper |
| 连接器样式 | BNC | 触头材料 | Brass |
| 总长度 | 30.64 mm | 主要材料 | BNC |
| 端接样式 | Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polymethylpentene (PMP) |
| 绝缘材料 - 类型 | Polymethylpentene | 绝缘材料 - 材质 | :Zinc |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Bulkhead | 第一连接器安装类型 | :Panel |
