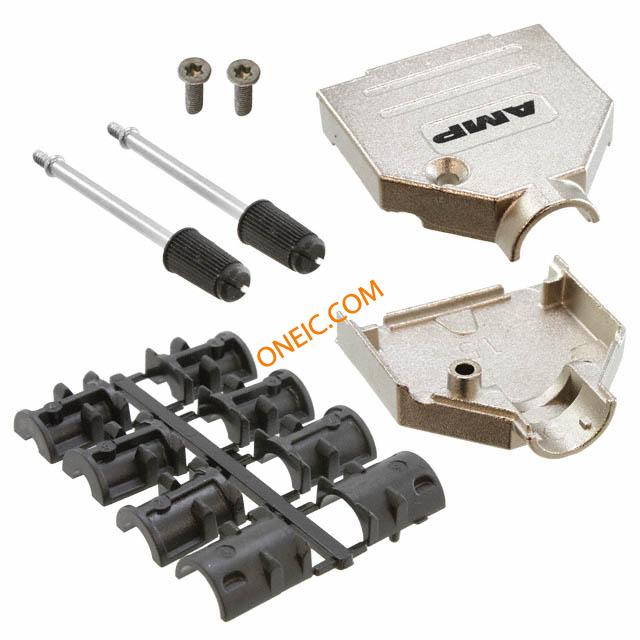

点击放大查看
1-1478762-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 15 POS Backshell/Cable Clamp Die Cast Nickel Finish Shell Size 2 Bulk D-Sub Backshells BACKSHELL 15P METAL SIZE 2 Cable Clamps CONN BACKSHELL 15P METAL 180DEG 15w straight die cast backshell Backshell/Cable Clamp 180� 2 Shell Size Nickel Bulk Backshell/Cable Clamp 180° 2 Shell Size Nickel Bulk Backshell/Cable Clamp 180° 2 Shell Size Nickel Bulk Product Highlights:Backshell/Cable ClampCable Clamp Type = Straight180° Cable Exit AngleCable Insulation Diameter = 4.00 - 13.00 mmNumber of Positions = 15Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub 15wstraightdiecastbackshell D-Sub metal hood 15P, 1-1478762-5, TE Connectivity TE Connectivity ADK 系列 15 路 直 锌 D-sub 连接器底壳 , 带应力消除 METAL BACKSHELL 15 WAY TOP E |
| 分类 |
商业参数
| 交货时间 | 66 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 电容 | 14.6 | 极数 | 15 |
| 连接器阻抗 | 180 | ||
机械参数
| 颜色 | Silver | 深度 | 14.6 mm |
| 高度 | 14.6 mm | 外形尺寸(长x宽) | 2 |
| 镀层 | Nickel | 材料（通用） | Metal, Zinc |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 壳体颜色 | 40.5 | 出线方向 | 180° |
| 电缆类型 | Round | 外壳尺寸 | 2 |
| 方向 | 直 | 屏蔽类型 | Yes |
| 螺纹尺寸 | 4-40 | 电缆开口 | 180° |
| 安装类型 | Straight | 外壳镀层 | Nickel |
| 电缆直径 | 4...13 mm | 电缆端类型 | Straight |
| 电缆材料 | Die Cast | 连接器类型 | 两件式 RFI/EMI 屏蔽层 |
| 外壳材料（壳体） | Zinc Die Cast | 材料表面处理 | Nickel |
| 屏蔽材料 | 镍 | 板侧间距 | Without |
| 壳体材料 | Die Cast Zinc | 总长度 | 39.5 mm |
| 包装数量 | Bulk | 电缆端接方式 | Straight |
| 连接器颜色 | nickel-plated | 外径 | 4 – 13 mm [ .158 – .512 in ] |
| 触点数 | 15 | 绝缘直径 | 4.00 â 13.00 [0.158 â 0.512] |
| 位数 | 15 | 衬套/护套类型 | With |
| 电缆对数 | 1 | 法兰下方引脚尺寸 | 不带 |
| 供应商器件封装 | Assembly Hardware, Grommets, Strain Relief | 静电放电屏蔽 | 是 |
| 控制侧电缆固定器 | With | ||
产品信息
| 备注 | Kit includes backshells, jackscrews and cable grommets. | 类型 | Backshell/Cable Clamp |
| 系列 | ADK | 产品特性 | Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Grommets, Strain Relief | 主要用途 | Mating Screws 4-40 |
| 产品子类型 | Backshell/Cable Clamp | 附件类型 | Two Piece Backshell |
| 放大器类型 | 39.5 | 端口数 | 4 |
| 射频系列/标准 | 1478762 | 其他规格 | 4 |
环境参数
| 工作温度 | -40...+120 °C | ||
