| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 14-16AWG 17.86mm 6.35mm Tin Loose Piece Terminals PIDG RING 16-14 4 Ring and Spade Tongue Terminals CONN RING 14-16 AWG #4 BLUE PIDG Ring terminal PIDG 16-14AWG Blue M2.5 Ring Tongue Terminal 14-16AWG 17.86mm 6.35mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,PIDGR16-14 TE Connectivity PIDG 系列, 蓝色 绝缘 镀锡触芯 环形压接端子 , M2.5 螺栓, 17.86mm总长 TERMINAL,PIDG R 16-14 4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | A1091 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | 连接器阻抗 | Sheared |
机械参数
| 颜色 | Blue | 形状 | RING-041 |
| 表面处理 | Tin | 长度 | .703 |
| 重量 | .856 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 4 |
| 导线线规 | 14-16 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 2.84 mm | 端子类型 | Circular |
| 行程角度 | Straight | 电缆直径 | 2.6mm² |
| 电缆材料 | Solid or Stranded | 接触镀层 | Tin |
| 端子样式 | Straight | 连接器样式 | Straight |
| 总宽度 | 0.25" | 触头材料 | Copper |
| 绝缘颜色 | 蓝色 | 总长度 | 0.703" (17.86mm) |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 筒径 | Long | 绝缘高度 | Insulation Support |
| 端接样式 | 环形端子 | 连接器颜色 | Blue |
| 材料厚度 | .31 | 接触件尾部长度 | 0.84 [0.033] |
| 绝缘直径 | 4.32 [.170] Max. | 绝缘材料 - 类型 | Nylon |
| 位数 | 1 | 外缘宽度 | 0.250" (6.35mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 舌片内部开口 | .787 mm [ .031 in ] |
| 螺纹/螺钉/孔尺寸 | M2.5 | 供应商器件封装 | PIDG |
| 支撑面板厚度 | Insulation Support | 接触镀层厚度 | 100 |
| 线规或范围 - AWG | 2,050 â 5,180 | 线规或范围 - mm² | 1.25-2.00² [16-14] |
| 外径-未扩张 | 4.32 mm [ .17 in ] | ||
产品信息
| 备注 | Available On-Tape for Automatic Termination. | 类型 | Ring Tongue Terminal |
| 连接器性别 | Female | 系列 | 328 |
| 产品特性 | Serrated Termination | 可密封 | 否 |
| 检查插槽 | 否 | 制造商全称 | AMP |
环境参数
| 工作温度 | 170 | ||
相关型号
59824-1
te connectivity / amp
Die Set For Connector/Terminal Tool Crimpers TETRA CRIMP TOOL TETRA-CRIMP HT ASSY TETRA-CRIMP crimp tool, PIDG, 22-10 AWG CRIMP TOOL, PIDG FASTON RECEPTACLES Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIPSplice/Terminal;904139-1,662903-2Die TE Connectivity Tetra-Crimp 系列 手工压接工具 , 22 → 10 AWG 线规格, PIDG Splices/Terminals, Plasti-Grip Terminals
59827-1
te connectivity / amp

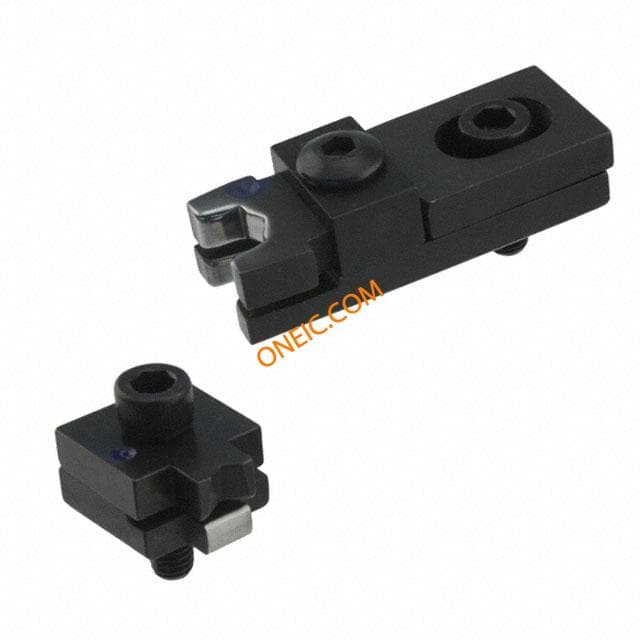

TETRA-CRIMP DIE 16-14 Punches & Dies TETRA-CRIMP DIE 16-1 TOOL TETRA-CRIMP DIE 16-14AWG
58423-1
te connectivity / amp
DIE, RBY IS9252 Punches & Dies DIE SET INSUL. 22-10 DIESET SPLICE TERMINALS PRO-CRIMPER III PIDG PLASTI-GRIP die set Pro-Crimper Iii Hand Tool DIE, PIDG/PLASTIGRIP AMP;DIESETONLY;INSULATEDTERMINALS;22-10AWG Crimping dies, 58423-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具模具 , 22 → 10 AWG 线规格
58433-3
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers TOOL W/DIE INS TERM TOOL CRIMP INSUL TERM W/DIE SET PRO-CRIMPER III hand crimping tool Connector Accessories Terminal Crimp Hand Tool CRIMP TOOL, PIDG AND PLASTI-GRIP TERMINALS Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIP,PIDGFASTONTerminals;58423-1Die TE Connectivity Pro-Crimper III 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具 PRO CR ASSY, RBY IS9252
47387
te connectivity / amp

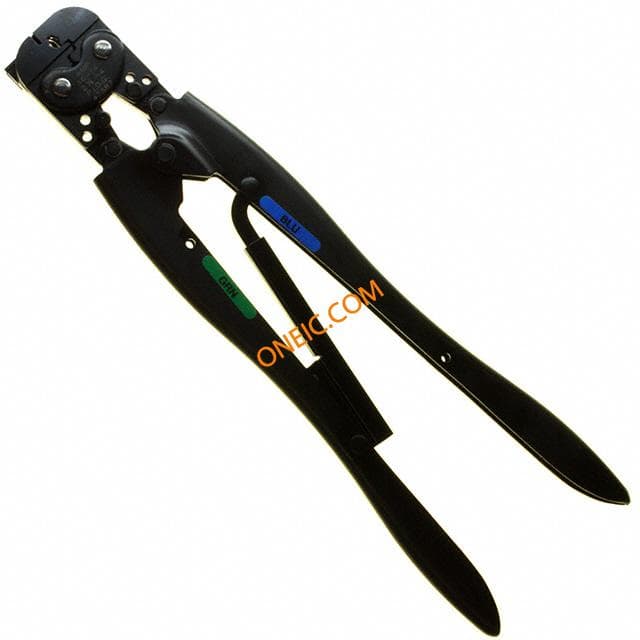

General Hand Tool Used In The Aircraft And Military Industries Crimpers 16-14AWG PIDG PLIER DAHT Hand Tools 16-14AWG PIDG PLIER DAHT TOOL HAND CRIMP PIDG 14-16 AWG CRIMP TOOL, PIDG, 16-14/20-16 AWG P.I.D.G. DAHT 16-14
314269-1
te connectivity / amp
Terminals Tool Die Set Pneumatic Crimping Head Hand Tools 16-14 PIDG IS9586 PNEU HD PNEU HEAD 16-14AWG PIDG IS9586 Pneumatic crimping head, PIDG, 16-14 AWG PNEUHD16-14PIDGIS9586
1-47387-0
te connectivity / amp
DA BAT TL HD 16-14 PIDG Hand Tools DA BAT TL HD 16-14 TOOL HEAD CRIMP 16-14AWG PIDG
91963-2
te connectivity / amp
S.D.E.PREM.DIE ASSY 16-14 PIDG Punches & Dies S.D.E.PREM.DIE ASSY 16-14 PIDG
679305-1
te connectivity / amp
Connector Accessories Crimping Head Hand Tools PLATFORM & TETRA CRMP HD ASSY TOOL HEAD TETRA CRIMP ADPT ASSY
47807-1
te connectivity / amp

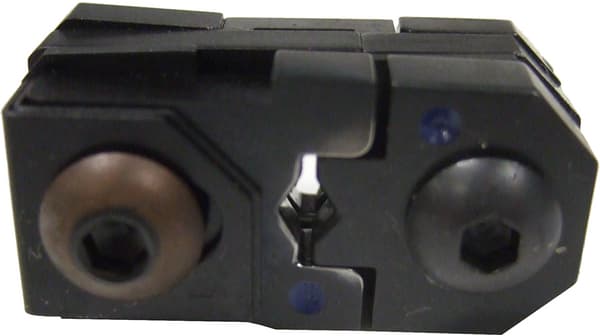

General Hand Tool Used In The Aircraft And Military Industries Punches & Dies DIE PIDG 69100 16-14 DIE PIDG 69100 16-14AWG Crimping dies, 47807-1, TE Connectivity DIE PIDG 69100 16-14
