点击放大查看

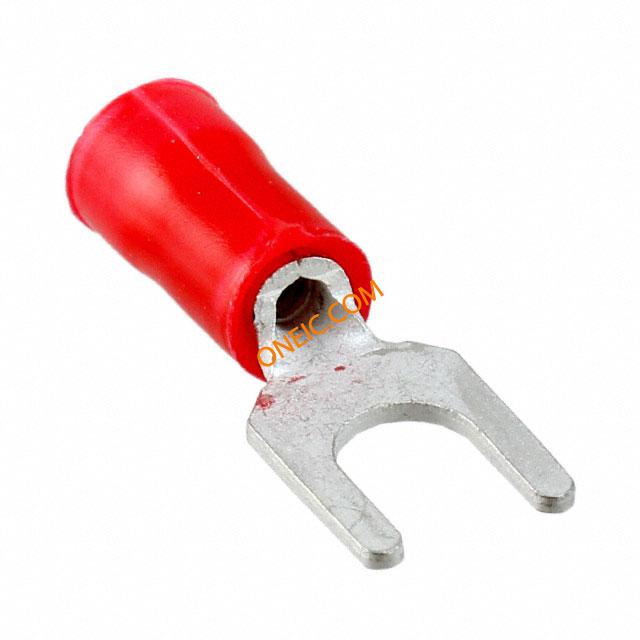

165008
| 制造商 | |

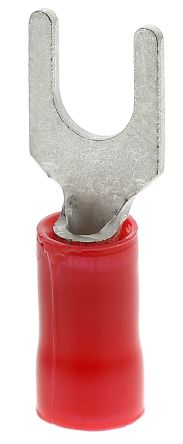

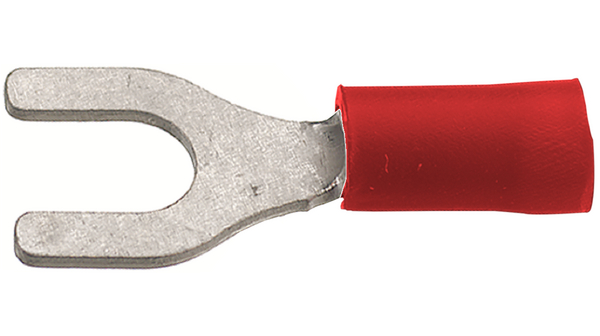

| 描述 | Spade Tongue Terminal 16-22AWG 21.1mm 7.1mm Tin Loose Piece Terminals TERM SPADE 22-16AWG Ring and Spade Tongue Terminals TERM SPADE TONG 22-16AWG PLAST G Spade terminal, PLASTI-GRIP, red, M4 Spade Tongue Terminal 16-22AWG 21.1mm 7.1mm Tin Loose Piece Product Highlights:Terminal Shape = Spade TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, SPADE, 22-16AWG Spadeterminal,PLASTI-GRIP,red,M4 Fork terminal; M4; 0.3÷1.42mm2; crimped; insulated; tinned; red Fork cable shoe red 4.3 mm, 165008, TE Connectivity TE Connectivity 红色 绝缘 压接铲形连接器 , 4.17mm 螺栓 PLASTI-GRIP, SPADE 22-16 8 |
| 分类 |
商业参数
| 产品 | Fork Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | In Transition | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 驱动类型 | fork terminal | 额定电压 | 600 VAC |
| 供电电压 | 600 | ||
机械参数
| 颜色 | Red | 深度 | 7.1 mm |
| 形状 | SPADE-021 | 宽度 | 7.1mm |
| 表面处理 | Tin | 重量 | 0.01 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 4.17mm |
| 导线线规 | 16-22 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Spade Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4 mm |
| 端子类型 | Standard | 连接器类型 | :Spade |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Straight | 触头材料 | Copper |
| 套圈材料 | insulated | 绝缘颜色 | :Red |
| 总长度 | 0.831" (21.10mm) | 包装数量 | Loose Piece |
| 主要材料 | Spade | 绝缘高度 | Non-Insulation Support |
| 连接器颜色 | Red | 接触件尾部长度 | 0.81 [0.032] |
| 绝缘直径 | 3.56 [.140] Max. | 绝缘材料 - 类型 | Vinyl |
| 外缘宽度 | 0.280" (7.11mm) | 端接长度 | 0.386" (9.80mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | 舌片内部开口 | 0.169" (4.30mm) |
| 安装孔直径 | M4 | 供应商器件封装 | PLASTI-GRIP |
| 线规或范围 - AWG | 509 â 3,260 | 线规或范围 - mm² | 0.30-1.40² [22-16] |
| 触点材料 - 镀层 | tinned | 环中心到端接长度 | 0.248" (6.30mm) |
产品信息
| SPG | 1 | 类型 | Spade Tongue Terminal |
| 系列 | :PLASTI-GRIP | 产品特性 | ClosedBarrel |
| 制造商全称 | AMP | 单元数量 | 1 |
环境参数
| 温度范围 | 90 | 工作温度 | + 90 C |
