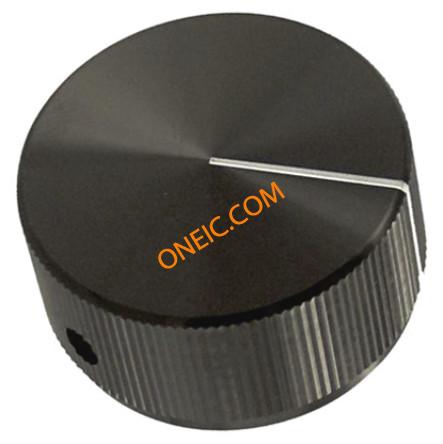

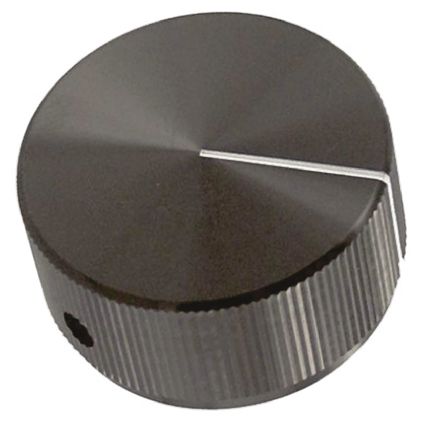

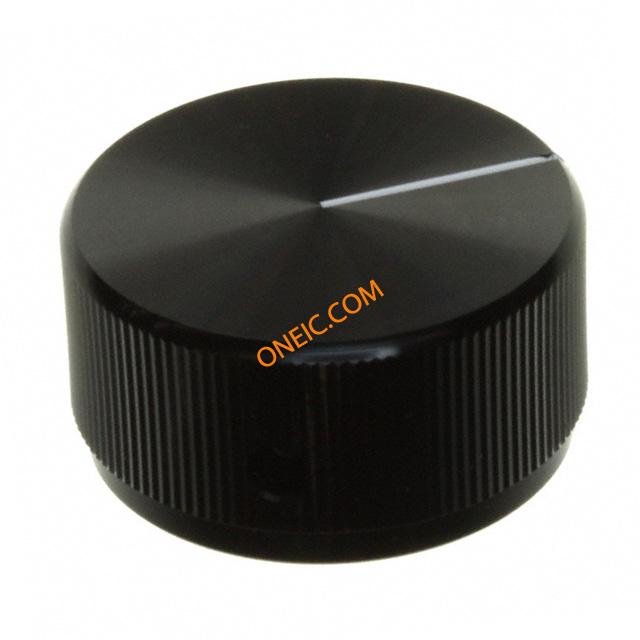

KLN1250B1/4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Knobs & Dials BK KNRLD TP SDE IND SWITCH KNOB STRAIGHT 1.252" BLK Knob,Black,1.25in. Knob; Black; 1.25 in.; RoHS Compliant; ELV Compliant Switch Access Rotary Switch Round Knob Switch Access Rotary Switch Round Knob Product Highlights:KnobStraight Knurl Knob DesignIndicator Style = LineIndicator Location = Top and SideColor = Black Knob;Black;1.25in.;RoHSCompliant,ELVCompliant TE Connectivity 黑色 指针旋钮, 带白色指示灯, 6.35mm轴, 31.8mm直径旋钮 KLN1250B1/4=KNOB KNURL W/IND L |
| 分类 |
商业参数
| 交货时间 | 59 Days | 子类别 | Switch Accessories |
| 零件号别名 | 9-1437621-5 | 产品类别 | Knobs & Dials |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 零件状态 | 9-1437621-5 | ||
电气参数
| 指示器 | Line | ||
机械参数
| 颜色 | Black | 高度 | 0.625" (15.88mm) |
| 直径 | 31.75 mm | 材料（通用） | Aluminum |
| 壳体颜色 | Black | 轴径尺寸 | 6.35 mm |
| 外壳尺寸 | 不带 | 致动器类型 | 指针旋钮 |
| 外壳颜色 | 黑色 | 内径（孔径） | 0.25in. |
| 轴直径 | 0.25in. | 手柄材料 | 直式滚花 |
| 轴径 | 1.25in. | 柄部直径 | 1.25In. |
| 外径 | 6.35mm | 兼容外壳尺寸（如TM-700等） | 6.35mm 轴 |
| 小外径 | 1.25in | 执行器距PCB垂直高度 | 15.9mm |
产品信息
| 类型 | Knobs | 样式 | Cylindrical |
| 设计类型 | Straight Knurl | 系列 | KLN |
| 产品特性 | 6-32 Set Screw (2) | 功能 | Y |
| 制造商全称 | KLNSeries | 产品子类型 | 旋钮 |
| 行业别名 | 9-1437621-5, KLN1250B1/4 | 工具类型/特性 | Round |
| 工作高度 | 顶部/侧面 | 其他规格 | 不带 |
