点击放大查看

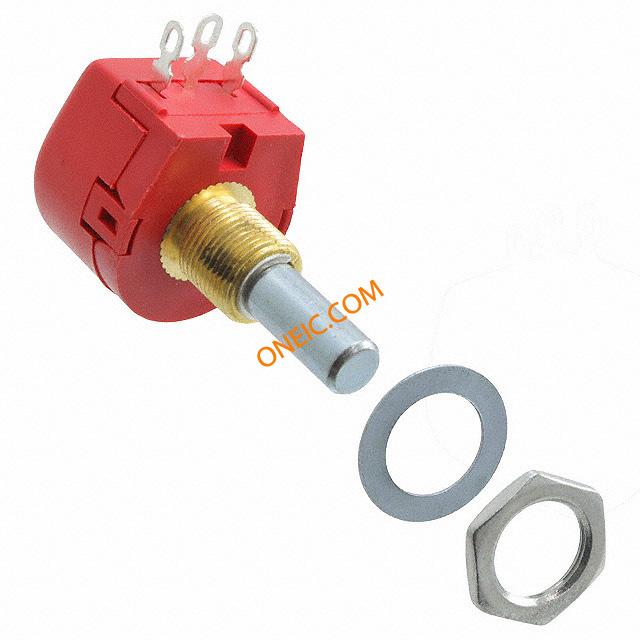

1676979-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Res Wirewound POT 100 Ohm 10% 1W 1(Elec)/1(Mech)Turn 6.35mm (42.5 X 22.6mm) Solder Lug Panel Mount Passive Electronic Components POT 100 OHM 1W 10% TOP ROUND |
| 分类 |
商业参数
| 其他名称 | TW1101KA | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Hand solderable with lead free solder |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | ||
电气参数
| 容差 | 10.0 | 电阻 | 100 |
| 功率（瓦） | 1W | 额定功率 | 1.0 |
| 电阻值（欧姆） | 100 | 元件数量 | Wirewound |
| 基极电阻（R1） | Potentiometer | ||
机械参数
| 密封型 | No | 旋转范围 | 285° |
| 包装方式 | Bulk | 本体尺寸 | Round - 0.890" Dia x 0.689" L (22.60mm x 17.50mm) |
| 端接方式 | Eyelet | 轴细节 | Plain, 6.35 x 25mm |
| 致动器类型 | Round Shaft | 安装类型 | Panel Mount |
| 冷却的封装 | 22.6 x 23.5mm | 执行器长度 | 0.984" (25.00mm) |
| 执行器直径 | 0.250" (6.35mm) | 端接样式 | In Line |
| 电阻材料 | Wirewound | 位数 | Single |
产品信息
| 系列 | DMSB | 功能 | Single Turn |
| 制造商全称 | Citec | 产品子类型 | Variable Resistor |
| 调节方式 | Top | 圈数 | Single |
环境参数
| 温度系数 | 100 | ||
