点击放大查看

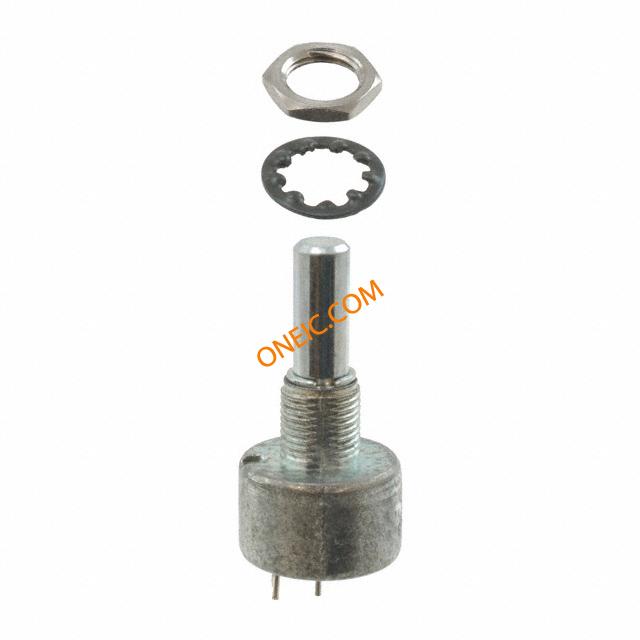

3-1625931-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Res Cermet POT 47 Ohm 10% 2W 1(Elec)/1(Mech)Turn 6.34mm (19.05 X 33mm) Pin Panel Mount/Through Hole Passive Electronic Components POT 47 OHM 2W 10% TOP ROUND Res Cermet POT 47 Ohm 10% 2W 1(Elec)/1(Mech)Turn 6.34mm Pin Panel Mount/Through Hole Res Cermet POT 47 Ohm 10% 2W 1(Elec)/1(Mech)Turn 6.34mm Pin Panel Mount/Through Hole Product Highlights:PotentiometerM SeriesResistance Selection = Resistance = 47 ?Power Rating = 2.00 WSearch Keywords:Passive Components, Potentiometers, Trimmers, Rheostats |
| 分类 |
商业参数
| 标准包装数量 | Tape & Reel | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | ||
电气参数
| 容差 | 10.0 | 电阻 | 47 |
| 功率（瓦） | 2W | 额定功率 | 2.0 |
| 电阻值（欧姆） | 47 | 元件数量 | Cermet |
| 基极电阻（R1） | Potentiometer | ||
机械参数
| 密封型 | Yes | 旋转范围 | 270° |
| 包装方式 | Bulk | 本体尺寸 | Round - 0.750" Dia x 0.709" L (19.05mm x 18.00mm) |
| 端接方式 | PCB Terminations | 轴细节 | Plain, 1" |
| 致动器类型 | Round Shaft | 安装类型 | Through Hole |
| 冷却的封装 | 19 | 执行器长度 | 1.000" (25.40mm) |
| 执行器直径 | 0.250" (6.35mm) | 端接样式 | 5.0 x 3.9 |
| 电阻材料 | Cermet | 位数 | Single |
产品信息
| 系列 | M | 功能 | Single Turn |
| 制造商全称 | Citec | 产品子类型 | Variable Resistor |
| 调节方式 | Top | 圈数 | Single |
环境参数
| 温度系数 | 0.75% | ||
