VIPER22ADIP
| 制造商 | STMicroelectronics N.V. |
| 描述 | Current Mode PWM Controller 730V 8-Pin PDIP Tube AC/DC Switching Converters 700V 0.1A SMPS IC OFFLINE SWIT PWM SMPS 8DIP |
| 分类 |
商业参数
| 其他名称 | 497-3286-5 | 产品类别 | AC/DC Switching Converters |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 50 |
合规参数
| RoHS | No | ||
电气参数
| 下降时间 | 100 ns | 功率（瓦） | 12W |
| 额定电压 | 730(Min) V | 频率范围 | 54kHz ~ 66kHz |
| 上升时间（典型） | 50 ns | 输出隔离 | Isolated |
| 击穿电压 | 730V | 开关频率 | 60 KHz |
| 最小输入电压 | 8 V ~ 50 V | 输出数量与类型 | 1 |
机械参数
| 包装方式 | Tube | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 封装形式 | 8PDIP |
| 供应商器件封装 | 8-DIP | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | -40 to 150 °C |
相关型号
STEVAL-ISA004V1
stmicroelectronics
Viper22AE Dual Output Evaluation Board With 90 To 264 VAC Input And 10 W Output Power Management IC Development Tools BOARD & REF DESIGN EVAL BOARD DUAL OUTPUT VIPER22A VIPer22A-E Dual-Out Eval Board with 90 to 264 VAC in and 10 W out
STEVAL-ISA035V1
stmicroelectronics
Non Isolated Offline Power Supply Demonstration Board Based On The Viper22AE Power Management IC Development Tools NON ISO PWR SUPPLY Eval BOARD VIPER22A BOARD EVAL BASED ON VIPER22A Development Kit, Power Management With Demonstration Board OFFLINEPOWERSUPPLY
STEVAL-ILL001V1
stmicroelectronics
Evaluation Board Introduces An Innovative Solution For Driving High Brightness 1 W LEDs LED Lighting Development Tools DRIVER FOR HB PWR LEDS WITH VIPER22A EVAL BOARD DIMMABLE HB PWR LED

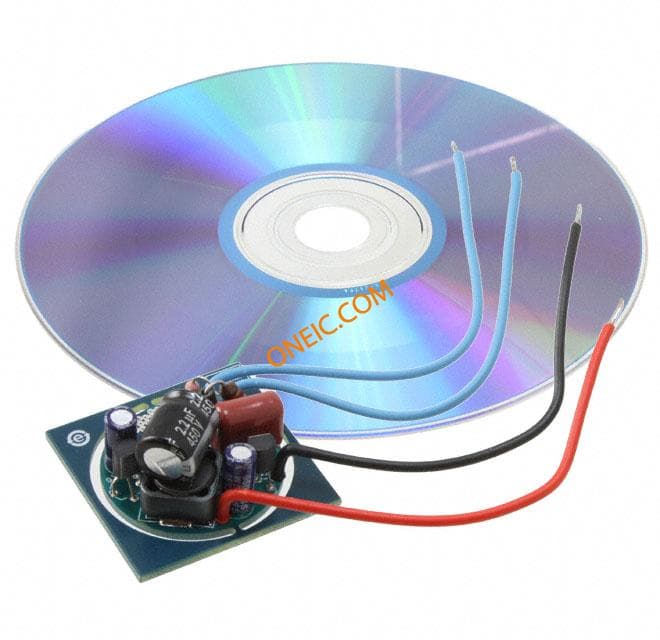

STEVAL-ILL026V1
stmicroelectronics
Non Isolated Offline LED Driver Demonstration Board Based On The Viper22AE LED Lighting Development Tools high-efficiency LED Switching BRD BOARD EVAL BASED VIPER22ASTR-E VIPER22A-E, OFFLINE LED DRIVER, 3W, DEMO BOARD

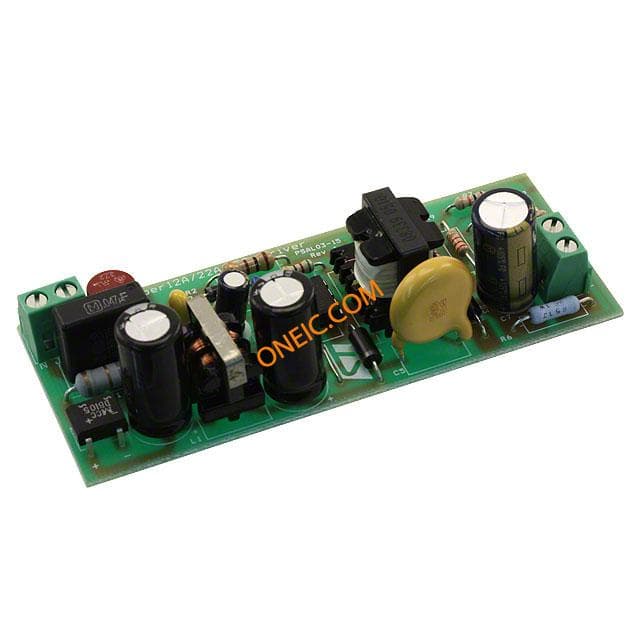

VIPER22-LED-EV
STMicroelectronics
VIPER LED POWER SUPPLY
