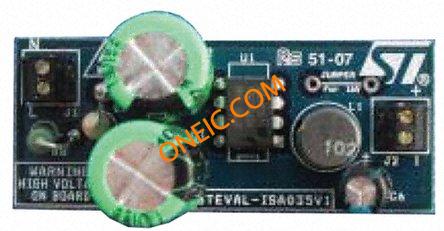

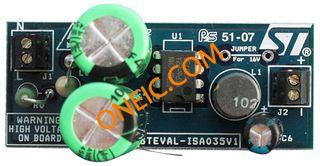

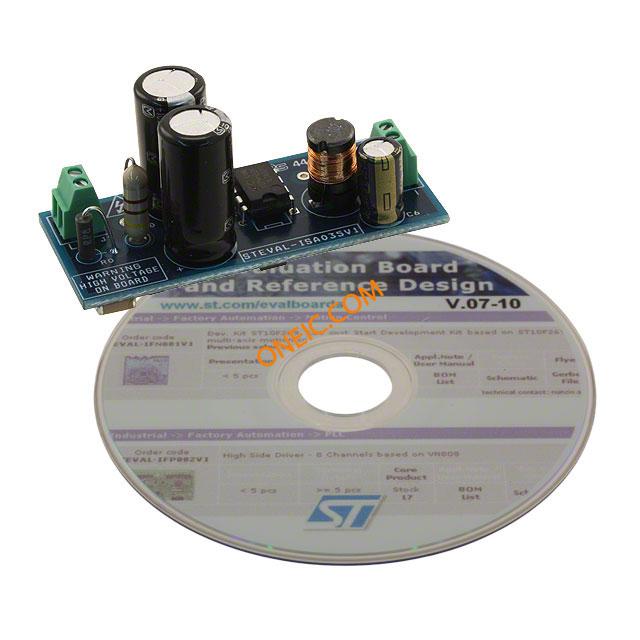

STEVAL-ISA035V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | Non Isolated Offline Power Supply Demonstration Board Based On The Viper22AE Power Management IC Development Tools NON ISO PWR SUPPLY Eval BOARD VIPER22A BOARD EVAL BASED ON VIPER22A Development Kit, Power Management With Demonstration Board OFFLINEPOWERSUPPLY |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定输出功率 | 4.2W | 额定电压 | 85 V to 264 V |
| 输出电流 | 350mA | 稳压器拓扑 | Buck |
| 开关频率 | 60kHz | 最小输入电压 | 12V |
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 技术 | Power Management | 套件内容 | Demonstration Board |
| 主要用途 | AC/DC, Non-Isolated | 卡标准 | Development Kit |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | VIPER22A-E |
| 使用的IC/零件 | VIPer22A | ||
