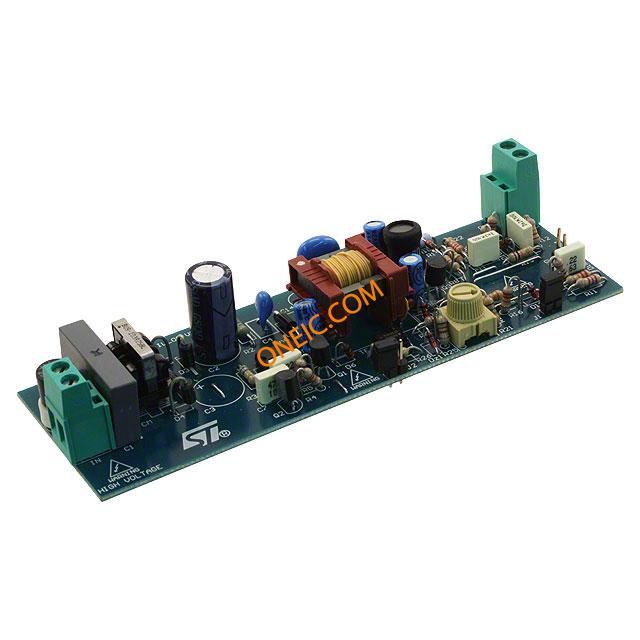

STEVAL-ILL001V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | Evaluation Board Introduces An Innovative Solution For Driving High Brightness 1 W LEDs LED Lighting Development Tools DRIVER FOR HB PWR LEDS WITH VIPER22A EVAL BOARD DIMMABLE HB PWR LED |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | 497-5071 |
| 产品类别 | LED Lighting Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | 欧盟RoHS | Compliant |
电气参数
| 核心类型 | VIPER22A-E | 供电电压 | 85 V to 135 V, 185 V to 265 V |
| 最小输入电压 | 32V | 输出电流/通道 | 350mA |
机械参数
| 包装方式 | Bulk | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | Dimmable | 输出及类型 | 1, Isolated |
| 使用的IC/零件 | VIPer22A-E | 适用产品/相关产品 | High Brightness High Power LEDs |
环境参数
| 机械寿命 | Obsolete | ||
