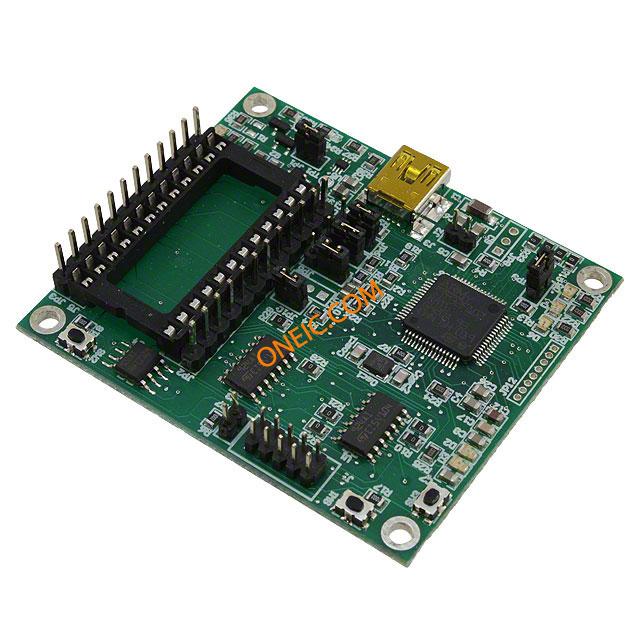

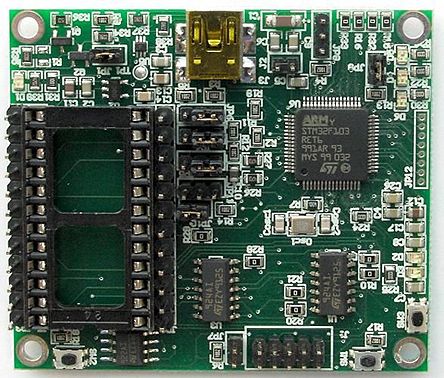

STEVAL-MKI109V2
| 制造商 | STMicroelectronics N.V. |
| 描述 | 加速センサ開発ツール MEMS USB Motherboard STM32F103 3V Adapter ST MEMS ADAPTERS MOTHERBOARD BASED ON THE STM32F103RE COMPATIBLE WITH ALL ST MEMS ADAPTERS ACCEL X-Axis MOTHERBOARD MEMS ADAPTER STM32 Acceleration Sensor Development Tools MEMS USB Motherboard STM32F103 3V Adapter DEMO BOARD, STM32F103RE MEMS DEVICE STMicroelectronics 适配器板 MOTHERBOARD STM32 |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 1 |
| 产品类别 | Acceleration Sensor Development Tools | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85439000 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
电气参数
| 接口 | USB | 元件数量 | :STM32F103RE, L3GD20, LSM303DLHC |
机械参数
| 重量 | 0.002 | 包装方式 | Bulk |
| 封装形式 | PCB | ||
产品信息
| 内容 | Board | 嵌入式 | Yes, MCU, 32-Bit |
| 产品特性 | :- | 套件类型 | :Sensor |
| 匹配码 | MOTHERBOARD STM32 MEMS N MEMS | 套件内容 | :Demo Board STM32F103RE |
| 主要用途 | Motherboard; Accelerometer, Gyroscope | 标准交期 | 18 weeks |
| 工具类型/特性 | STM32F103 | 主要特性 | DIL24 Socket for ST MEMS Adapter Boards |
| 使用的IC/零件 | STM32 and MEMS Demo Boards | 芯片组制造商 | :STMicroelectronics |
| 次要特性 | 3 V on-board linear voltage regulator | 应用细节 | :MEMS Device |
环境参数
| 工作温度 | - 40 C | ||
