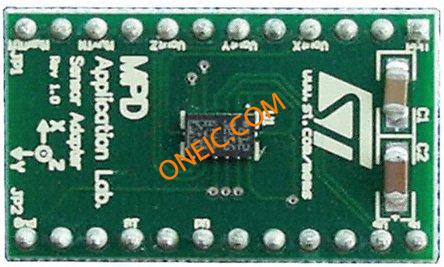

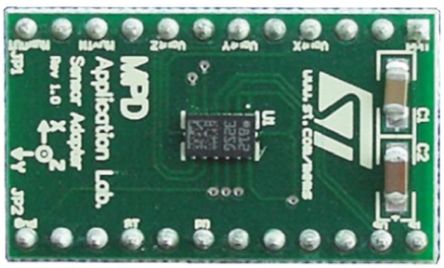

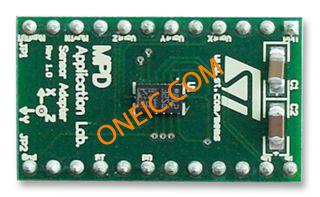

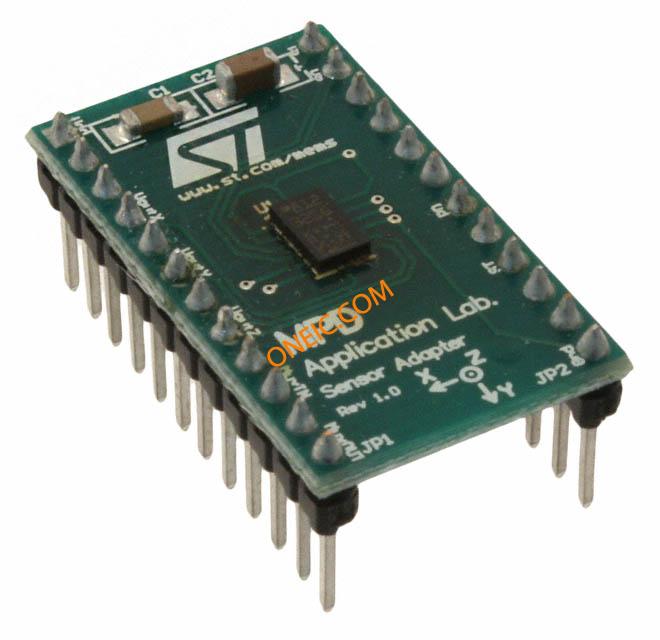

STEVAL-MKI020V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | Adapter Board For The LIS302SG Acceleration Sensor Development Tools LIS344AL Adapter BRD Plug into DIL 20 ACCEL 3-Axis Analog BOARD ADAPTER LIS302SG DIL24 STEVAL-MKI020V1, Development Kit BOARD, ADAPTER, LIS302SG, MEMS,24DIL 3-AxisAccelerometerAdapterBoardDIL24 STMicroelectronics 模拟开发套件 |
| 分类 |
商业参数
| 最小起订量 | 5 | 单位包装 | 1 |
| 其他名称 | 497-8204 | 产品类别 | Acceleration Sensor Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85439000 |
| 无铅定义 | RoHS-conform | ||
电气参数
| 最大电源电流 | 0.65µA | 接口 | Analog |
| 输出类型 | Analog | 量程（°/s） | 2+-g |
| 灵敏度 | 478mg/LSB | 传感器类型 | Accelerometer, 3 Axis |
| 导通电阻（典型） | 400.3ms | 感应角度 | Triple Axis |
| 感应范围 | ±2g | 供电电压 | 3 V ~ 3.6 V |
| 最小输入电压 | 3V | 最小供电电压 | 1.65+-mg |
机械参数
| 重量 | 0.08 | 占位面积 | 15mm² |
| 包装方式 | Bulk | 安装类型 | :Plug-In |
| 封装形式 | LGA14 | 顶部端接 | 85°C |
| 最小工作高度 | -40°C | ||
产品信息
| 类型 | Development Kit | 系列 | :- |
| 内容 | Board | 嵌入式 | No |
| 匹配码 | LIS302SG ADAPTER BOARD | 技术 | MEMS |
| 套件内容 | Adapter Board for Standard DIL 24 Socket, Decoupling Capacitors | 卡标准 | Development Kit |
| 轴数 | 3 | 标准交期 | 18 weeks |
| 使用的IC/零件 | LIS302SG | 转换端（适配器端） | :24-DIP |
| 转换自（适配器端） | :MEMS Device | ||
