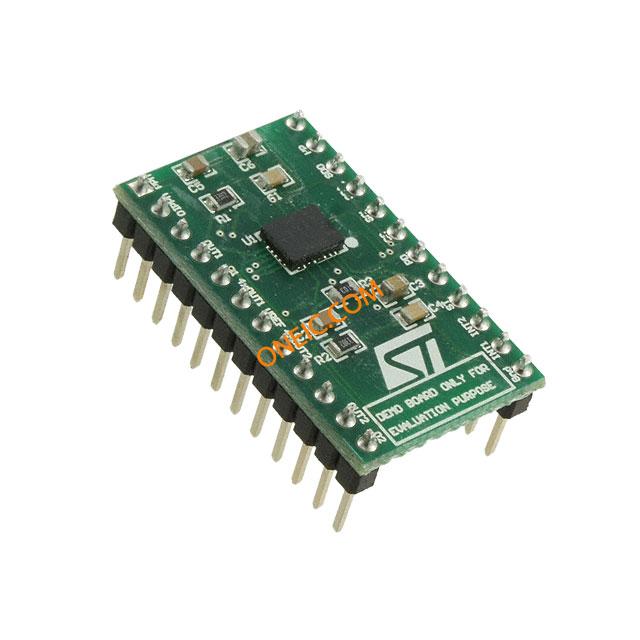

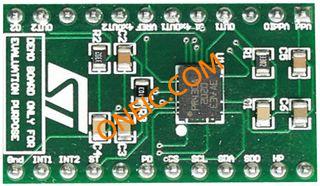

STEVAL-MKI097V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | Adapter Board For Standard Dil 24 Socket Acceleration Sensor Development Tools LPR430AL Dual Axis Low Pwr 300dps BRD AdapterBoard LPR430AL DIL24 SMD BOARD ADAPTER LPR430AL DIL24 ADAPTER BOARD, LPR430AL, MEMS, FOR DIL 24 SOCKET LPR410AL Adapter Board Designed to be Plugged into a Standard DIL 24 socket |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 最小起订量 | 5 | 单位包装 | 1 |
| 产品类别 | Acceleration Sensor Development Tools | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85423190 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
电气参数
| 弹簧刚度 | 1.5°/s | 最大电源电流 | 6.8mA |
| 接口 | USB | 输出类型 | Digital |
| 灵敏度 | 3.33mdps/LSB | 传感器类型 | Gyroscope, 2 Axis |
| 感应角度 | Double Axis | 感应范围 | ±300°/sec |
| 最小输入电压 | 2.7V | ||
机械参数
| 重量 | 0 | 占位面积 | 20mm² |
| 包装方式 | Bulk | 安装类型 | SMD |
| 封装形式 | lga28 | 顶部端接 | 85°C |
| 最小工作高度 | -40°C | ||
产品信息
| 类型 | Development Kit | 密度 | 0.018dps/rtHz |
| 内容 | Board | 嵌入式 | No |
| 套件类型 | :Sensing - Motion, Vibration, Shock | 匹配码 | LPR430AL ADAPTER BOARD |
| 技术 | MEMS | 套件内容 | :Board |
| 轴数 | 2 | 标准交期 | 18 weeks |
| 工具类型/特性 | LPR430AL | 使用的IC/零件 | LPR430AL |
| 芯片组制造商 | :STMicroelectronics | 应用细节 | :Angular Rate Sensor / Gyroscope |
