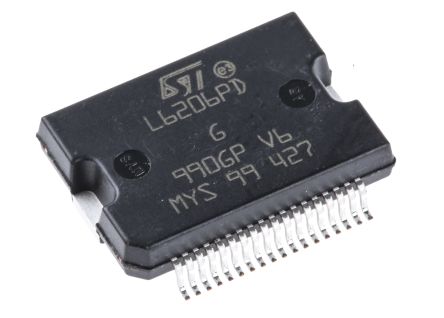

L6206PD
| 制造商 | STMicroelectronics N.V. |
| 描述 | Dual Full Bridge Motor Driver 48V 36-Pin PowerSO Tube 2xH-Br 2.8A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6206PD, Motor Driver, 8 to 52V, 36-Pin PowerSO Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge MOTOR DRIVER, DUAL, DMOS, 5.6A, 36PWRSO DRIVERDUALFULL,36PINPWRSOIC Driver; full bridge; 2.8A; Channels:4; SO36 Bridge Driver IC PowerSO-36, L6206PD, ST STMicroelectronics 双全桥电机驱动器 , 用于有刷直流电机, 2.8A, 8 → 52 V |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 最小起订量 | 31 | 产品 | Brushed DC Motor Drivers |
| 单位包装 | 31 | 产品类别 | Motor / Motion / Ignition Controllers & Drivers |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 31 |
| 标准封装名称 | PowerSO | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 汽车级 | NO | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | ||
电气参数
| 接口 | Parallel | 最大电压 | 60V |
| 负载电压 | 8 V ~ 52 V | 额定电压 | :52V |
| 输出电流 | 2.8A | 驱动电路 | Bridge |
| 供电电压 | 48 V | 输出数量 | 4 |
| 输出电流1 | 2.8A | 通道数量 | 4 |
| 最小输入电压 | 8V | 电源电压（最大） | 6 V |
| 最小供电电压 | 8 V | 导通电阻（最大） | 0.3mOhm |
机械参数
| 重量 | 0.000204 | 包装方式 | Tube |
| 封装体颜色 | :PowerSO | 电机类型 | :Full Bridge |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :36 | 封装形式 | 36PowerSO |
| 冷却的封装 | PowerSO | 材料表面处理 | :MSL 3 - 168 hours |
| 包装数量 | PowerSO | 位数 | 36 |
| 供应商器件封装 | PowerSO-36 | ||
产品信息
| SPG | 31 | 类型 | Dual Full Bridge Motor Driver |
| 功能 | Driver - Fully Integrated, Control and Power Stage | 匹配码 | L6206PD |
| 应用 | General Purpose | 单元数量 | 1 |
| 标准交期 | 12 weeks | 使用的IC/零件 | full bridge |
| 电机类型 - AC, DC | Brushed DC | 电机类型 - 步进 | Bipolar |
| 输出配置 | Full H-Bridge, (2) Dual | ||
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 150 °C |
| 最高温度限值 | 150°C | 结工作温度 | 150C |
文档与媒体
