点击放大查看

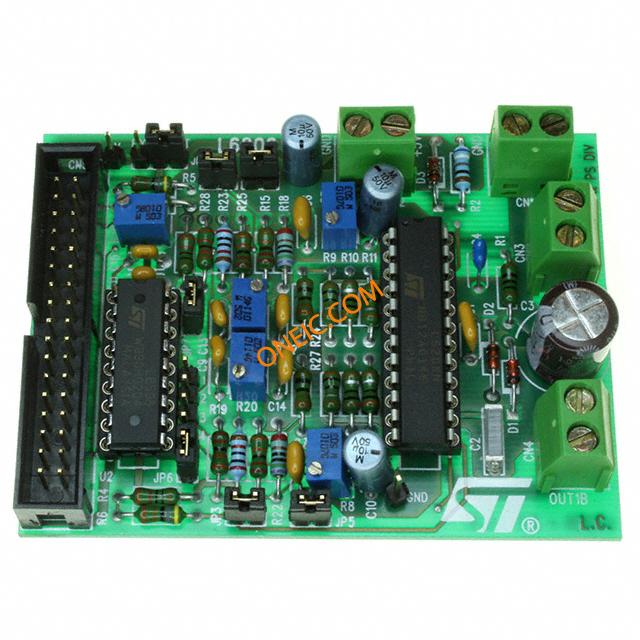

EVAL6206N
| 制造商 | STMicroelectronics N.V. |
| 描述 | Evaluation Board For L6206 Power Management IC Development Tools Eval Board for L6206 EvalBoard L6206N 2xH-Br _NO ROHS EVAL BOARD FOR L6206N DIP L6206, FULL BRIDGE DRIVER, DMOS, EVALUATION BOARD |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Power Management Development Tools |
| 单位包装 | 1 | 其他名称 | 497-5487 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85371099 |
| 汽车级 | NO | 无铅定义 | Leaded |
电气参数
| 额定电压 | 5 V | 元件数量 | :L6206 |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 封装形式 | EvalBoard | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 套件类型 | :Driver - Transistor |
| 匹配码 | EVALL6206N | 主要用途 | Power Management, H-Bridge Driver (Internal FET) |
| 标准交期 | 10 weeks | 工具类型/特性 | ST72F264 |
| 主要特性 | Dual Full-Bridge (H-Bridge), 2.8A (5.6A Peak). 8 ~ 52 V, 0.3 Ohm | 射频系列/标准 | L6206 |
| 使用的IC/零件 | L6206 | 芯片组制造商 | :STMicroelectronics |
| 次要特性 | Non-Inverting, Can be Paralleled | 应用细节 | EvalBoard |
| 支持MCU系列 | :L6206N | ||
