点击放大查看

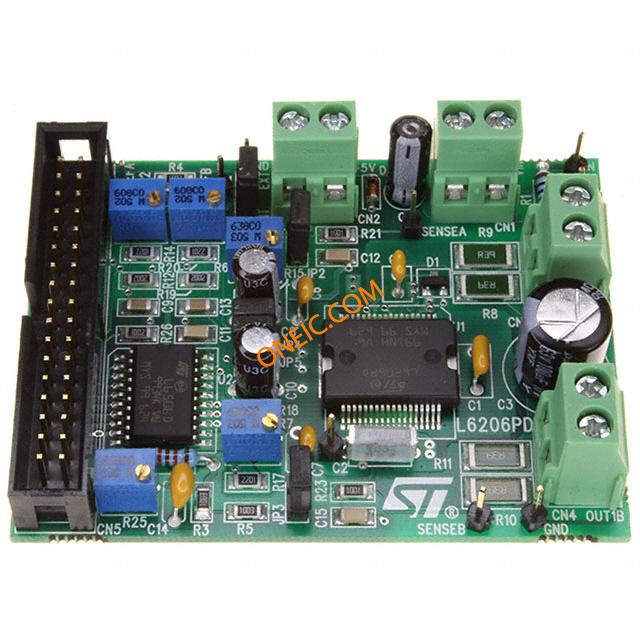

EVAL6206PD
| 制造商 | STMicroelectronics N.V. |
| 描述 | Evaluation Board For Highly Integrated, Mixed-Signal Power ICs Power Management IC Development Tools Eval Brd for L6206PD EvalBoard L6206PD 2xH-Br _NO ROHS EVAL BOARD FOR L6206 SERIES L6206, FULL BRIDGE DRIVER, DMOS, EVALUATION BOARD |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Power Management Development Tools |
| 单位包装 | 1 | 其他名称 | 497-4135 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85371099 | 汽车级 | NO |
| 无铅定义 | Leaded | ||
电气参数
| 额定电压 | 5 V | 元件数量 | :L6206 |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 封装形式 | EvalBoard | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 功能 | For L6206PD full bridge driver |
| 套件类型 | :Driver - Transistor | 匹配码 | EVALL6206PD |
| 主要用途 | Power Management, H-Bridge Driver (Internal FET) | 标准交期 | 10 weeks |
| 工具类型/特性 | ST72F264 | 主要特性 | 2 H-Bridge, 8 ~ 52V Output, Use with PractiSPIN |
| 射频系列/标准 | L6206 | 使用的IC/零件 | L6206 |
| 芯片组制造商 | :STMicroelectronics | 次要特性 | Temperature Protection, Adjustable Current Limit |
| 应用细节 | EvalBoard | 支持MCU系列 | :L6206PD |
文档与媒体
相关型号
EVALPRACTISPIN
stmicroelectronics
L6235 DMOS Driver For Three-Phase Brushless DC Motor Evaluation Board Power Management IC Development Tools PractiSpin Eval Brd L62xx Family EVALUATION BOARD PRACTISPIN INTERFACE BOARD, MOTOR CONTROL, PRACTISPIN
L6206D
stmicroelectronics
Dual Full Bridge Motor Driver 48V 24-Pin SO Tube 2xH-Br 2.8A 52V SO-24 SMD IC MOTOR DRIVER PAR 24SOIC L6206D, Full Bridge Motor Driver, Dual Full Bridge Motor Driver, 8 to 52V, 24-Pin SOIC Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge FULL BRIDGE DRIVER, DMOS, SO24-24 DRIVER,FULLBRIDGE,DUAL,24PINSOIC STMicroelectronics 电机驱动器 IC , 用于刷式直流, 2.8A, 8 → 52 V
L6206N
stmicroelectronics
Dual Full Bridge Motor Driver 48V 24-Pin PDIP Tube 2xH-Br 2.8A 52V DIP-24 THT IC MOTOR DRIVER PAR 24POWERDIP L6206N, Full Bridge Motor Driver, Dual Full Bridge Motor Driver, 8 to 52V, 24-Pin PDIP Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge IC, FULL BRIDGE DRIVER, DMOS, DIP24 DMOSDUALBRIDGEDRV Bridge Driver IC DIL-24, L6206N, ST STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 2.8A, 8 → 52 V
L6206D013TR
stmicroelectronics
Dual Full Bridge Motor Driver 48V 24-Pin SO T/R DUAL FULL BRIDG IC MOTOR DRIVER PAR 24SOIC Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge
L6206PD013TR
stmicroelectronics
Dual Full Bridge Motor Driver 48V 36-Pin PowerSO T/R 2xH-Br 2.8A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge
L6206PD
stmicroelectronics
Dual Full Bridge Motor Driver 48V 36-Pin PowerSO Tube 2xH-Br 2.8A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6206PD, Motor Driver, 8 to 52V, 36-Pin PowerSO Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge MOTOR DRIVER, DUAL, DMOS, 5.6A, 36PWRSO DRIVERDUALFULL,36PINPWRSOIC Driver; full bridge; 2.8A; Channels:4; SO36 Bridge Driver IC PowerSO-36, L6206PD, ST STMicroelectronics 双全桥电机驱动器 , 用于有刷直流电机, 2.8A, 8 → 52 V
