点击放大查看

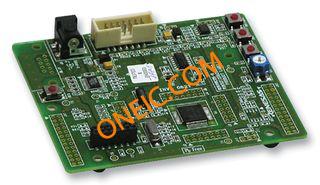

R0K521256S001BE
| 制造商 | |
| 描述 | Starter Kit For R8C/2D KIT STARTER FOR R8C/25 R5F21256SNFP, WITH E8A EMULATOR, KIT |
| 分类 |
商业参数
| 标准包装规格 | 1 | 标准包装数量 | Boxed |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
电气参数
| 核心类型 | :R8C | 元件数量 | :R5F21256SNFP |
机械参数
| 重量 | 0.4 | ||
产品信息
| 类型 | Development Kit | 内容 | CPU Board, LCD Display Module, E8 Emulator, Cable, QuickStart Guide and CD-ROM |
| 产品特性 | :Coding and Debugging, E8A Emulator, RS232 Serial Connection | 套件内容 | :Board |
| 制造商全称 | :R8C/24, R8C/25 | 工具类型/特性 | :Starter Kit |
| 芯片组制造商 | :Renesas | 支持MCU系列 | :R8C/25 |
| 适用产品/相关产品 | R8C/25 | ||
文档与媒体
相关型号

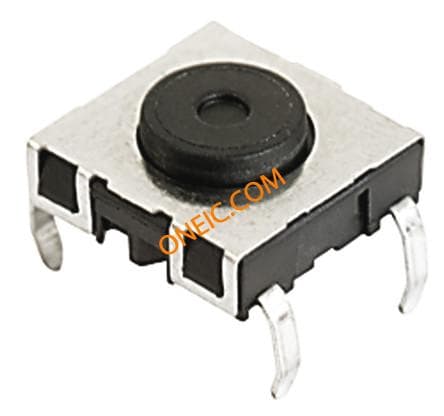

1241.1602
schurter
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 30VAC 42VDC 1000000Cycle 1.6N Thru-Hole PMS IP40 KURZ/SHORT SWITCH TACTILE SPST-NO 0.05A 42V Tactile Switch, SPST-NO 50 mA Pushbutton Switches PMS IP40 KURZ SHORT SWITCH, PCB, PUSH, IP40 PMSIP40KURZ/SHORT
MAX3232CDB
texas instruments
Dual Transmitter/Receiver RS-232 16-Pin SSOP Tube IC DRVR/RCVR MULTCH RS232 16SSOP RS-232 Interface IC 3-5.5V Multichannel Line Drvr/Rcvr IC, TRANSCEIVER, 5V, SMD 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver Texas Instruments 250kbps 双线收发器, RS-232接口, 2-TX 2-RX, 3.3 V、5 V, 16针 SSOP封装
LM1117MPX-3.3
texas instruments
LDO Regulator Pos 3.3V 0.8A 4-Pin(3+Tab) SOT-223 T/R LDO Voltage Regulators IC, LINEAR VOLTAGE REGULATOR 800mA Low-Dropout Linear Regulator LDO Voltage Regulators 800MA LDO LINEAR REG
3-338168-2
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub High Density Connectors 9POL HDP20 PLUGASSY Standard Board Mount Connectors CONN PLUG 9POS R/A 30GOLD T/H D-Sub Standard Connectors 9POL HDP20 PLUGASSY Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub PLUG, D, 40-40UNC, 9WAY TE Connectivity Amplimite HD-20 系列 DB9 9 路 通孔 直角 焊接 D-sub 连接器 插头 9POL HDP20 PLUGASSY

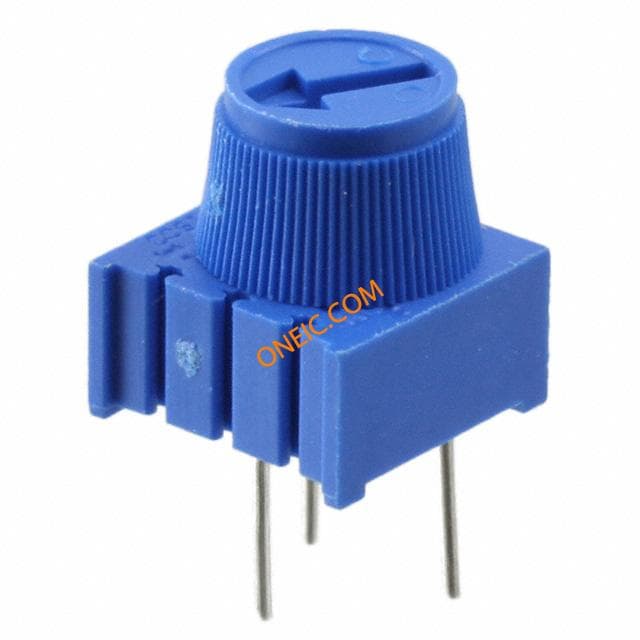

3386F-1-103TLF
