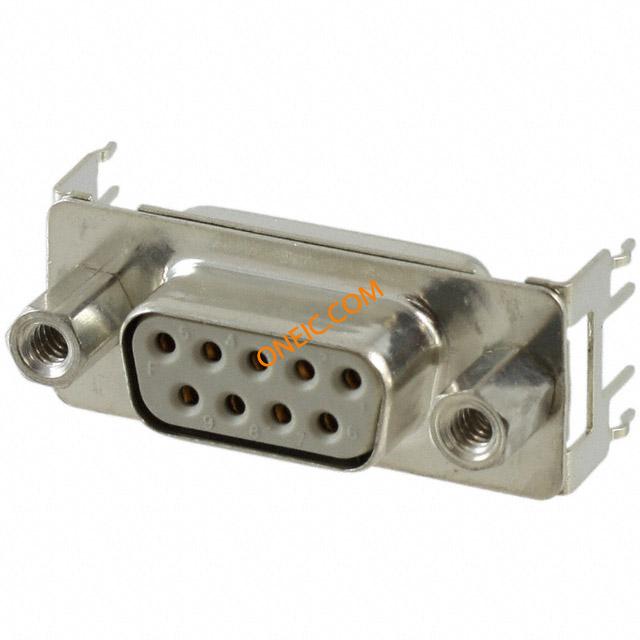

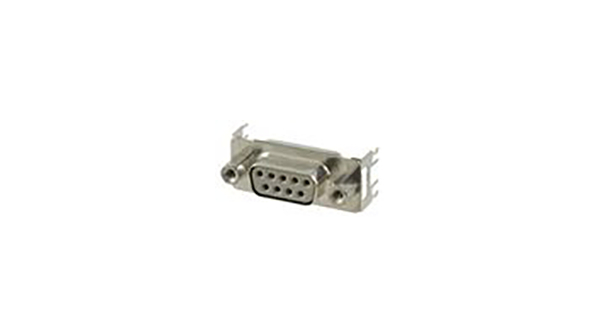

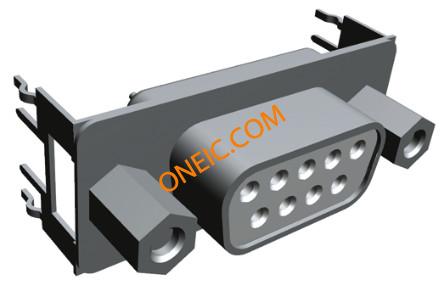

7-1393740-0
| 制造商 | |
| 描述 | Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Standard Board Mount Connectors CONN D-SUB RCPT 9POS VERT SLD AMPLIMITE HD-20 d-sub PCB socket, 9 way Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20 Type B - Solder TerminalWith Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22,
ACTION PIN, d-sub, d sub, dsub SOCKET, DSUB, VERT, PCB, 9WAY AMPLIMITEHD-20d-subPCBsocket,9way D-Sub socket 9P, 7-1393740-0, TE Connectivity V42254A2216B209=SUB D FEDERLEI |
| 分类 |
商业参数
| 其他名称 | 713937400 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
机械参数
| 颜色 | Gray | 深度 | 12.93mm |
| 间距 | 2.74 mm | 宽度 | 12.6mm |
| 长度 | 31.19mm | 密封型 | No |
| 重量 | 0.02 | 包装方式 | Tray |
| 外壳尺寸 | 1 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 触点形状 | Round | 安装类型 | Through Hole |
| 外壳镀层 | Tin over Nickel | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Tin | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | With | 安装样式 | Thru Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.062 [1.57] | 连接器样式 | D-Sub |
| 插入件材料 | PBTP - Glass Fiber-Reinforced Thermoplastic | 锁定特性 | Female Screwlocks, 4-40 UNC |
| 本体材料 | :Steel | 触头材料 | Copper Alloy |
| 壳体材料 | Polybutylene Terephthalate (PBT), Polyester | 面板安装类型 | Without |
| 尺寸/外形 | 0.70 [.028] | 接地凹痕 | Without |
| 连接器颜色 | None | 触点数 | 9 |
| 接触件端接 | :Solder | 位数 | 9 |
| 外壳尺寸-插件 | Full Metal | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 3.20 [0.126] | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | Connectors are preloaded with contacts.; With clinch nut screwlocks (M3) on req | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD 20 Type B - Solder Terminal |
| 产品特性 | Ground Strap | 制造商全称 | AMP |
