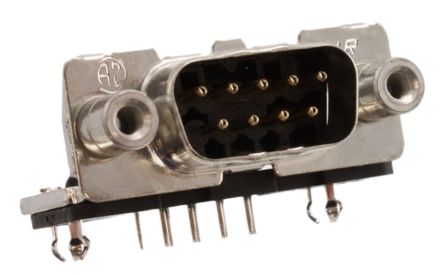

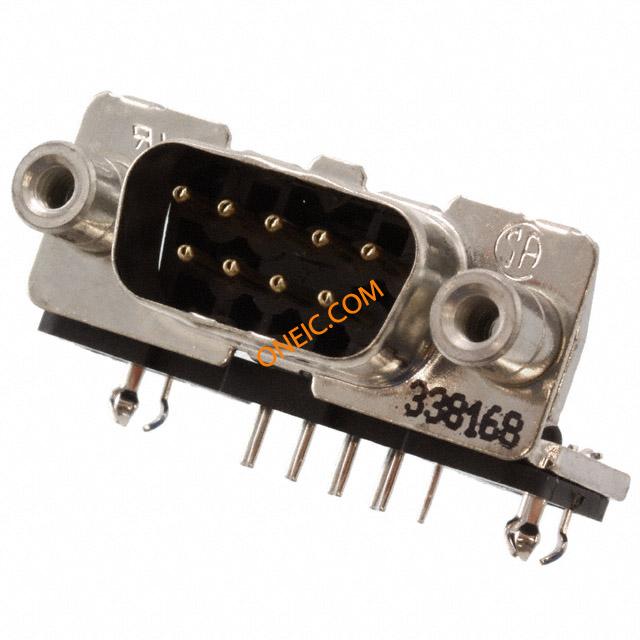

3-338168-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub High Density Connectors 9POL HDP20 PLUGASSY Standard Board Mount Connectors CONN PLUG 9POS R/A 30GOLD T/H D-Sub Standard Connectors 9POL HDP20 PLUGASSY Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub PLUG, D, 40-40UNC, 9WAY TE Connectivity Amplimite HD-20 系列 DB9 9 路 通孔 直角 焊接 D-sub 连接器 插头 9POL HDP20 PLUGASSY |
| 分类 |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | Trays |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认可国家 | DIN 41652 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HDP-20 Series |
| 额定电压 | 125V | 工作电压 | :250VAC |
| 最大额定电流 | 6A | ||
机械参数
| 颜色 | Black | 间距 | 2.74 mm |
| 高度 | 13.6 mm | 密封型 | No |
| 重量 | 0.01 | 镀层 | Tin |
| 材料（通用） | Phosphor Bronze | 占位面积 | 10.31 [.406] |
| 包装方式 | Tray | 外壳尺寸 | 1 |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | Without | 安装样式 | SMD/SMT |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.062 [1.57] | 连接器样式 | D-Sub |
| 锁定特性 | Female Screwlocks, 4-40 UNC | 本体材料 | :Metal |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester GF |
| 面板安装类型 | Without | 接地凹痕 | Without |
| 端接样式 | Solder | 连接器颜色 | None |
| 触点数 | 9 | 接触件端接 | :Solder |
| 位数 | 9 | 外壳尺寸-插件 | Full Metal |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 3.20 [0.126] |
| 接触镀层厚度 | 30µin (0.76µm) | 螺钉材料 - 镀层 | Steel |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | PIN |
| 系列 | HD-20 | 产品特性 | Board Lock, Grounding Indents |
| 制造商全称 | AMP | ||
环境参数
| 工作范围 | Level 2 | 工作温度 | -55°C ~ 105°C |
