FAD1-08025DSMW11

制造商	Qualtek Electronics Corp.
描述	FAN 80X25MM 24VDC SLEEVE WIRE Fans DC FAN 80x25mm 24VDC Sleeve WIRE
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品类别

Fans

标准包装数量

200

合规参数

RoHS

RoHS Compliant

电气参数

噪声	29.4 dB(A)	功率（瓦）	1.68W
额定电压	24VDC	最大额定电流	0.070A

机械参数

RPM	2500 RPM	重量	0.189 lb (85.73g)
风量	32.4 CFM (0.917m³/min)	风扇类型	Tubeaxial
端接方式	2 Wire Leads	轴承类型	Sleeve
静压	0.102 in H2O (25.5 Pa)	刀片材料	Plastic
框架材料	Plastic	尺寸/外形	Square - 80mm L x 80mm H x 25mm W

产品信息

功能

环境参数

工作温度

14 ~ 140°F (-10 ~ 60°C)

文档与媒体

PDF 文档

FAD1-08025 Series

PDF 文档

FAD1-08025-39451.pdf

相关型号

07145-24

Qualtek

AC Power Cords 24 FAN PWR CORD POWER CORD FAN 45DEG ANGLE 24" Power Cord; 24 in.; 45 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.609m 18AWG 2 POS Power RCP FAN POWER CORD PowerCord;24in.;45deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: 45 Cordage: SPT-1(18/2)

¥5.1830

详情

07199-36

Qualtek

AC Power Cords 36 FAN PWR CORD POWER CORD FAN T-TYPE 36" Power Cord; 36 in.; T-Type; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 36 FAN PWR CORD Cable Assembly Cord 0.914m 18AWG 2 POS Power RCP PowerCord;36in.;T-Type;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 915 Cord Length (in.): 36 Style: T-Type Cordage: SPT-1(18/2)

¥6.2023

详情

07145-SP072

Qualtek

AC Power Cords 72 45 DEGREE PLUG POWER CORD W/PLUG FAN 45DEG 72" Fan Cords & Accessories 72 45 DEGREE PLUG

¥12.0652

详情

07199-24

Qualtek

AC Power Cords 24 FAN PWR CORD POWER CORD FAN T-TYPE 24" Fan Cord; 24 in.; T-Type; UL Listed; CSA Certified; Blunt Cut; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.609m 18AWG 2 POS Power RCP FAN POWER CORD FanCord;24in.;T-Type;ULListed,CSACertified;BluntCut;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: T-Type Cordage: SPT-1(18/2)

¥5.2360

详情

07145-36

Qualtek

AC Power Cords 36 FAN PWR CORD POWER CORD FAN 45DEG ANGLE 36" Power Cord; 36 in.; 45 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 36 FAN PWR CORD Thrml Mgmt Access Fan Cord FAN POWER CORD PowerCord;36in.;45deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 915 Cord Length (in.): 36 Style: 45 Cordage: SPT-1(18/2)

¥6.2023

详情

07100-SP036

Qualtek

AC Power Cords 36FAN PWR CORD POWER CORD W/PLUG STRAIGHT 36" Fan Cords & Accessories 36FAN PWR CORD

¥11.0160

详情

07100-24

Qualtek

AC Power Cords 24 FAN PWR CORD POWER CORD FAN STRAIGHT 24" Power Cord; Fan; 2; Straight; UL Listed; CSA Certified; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.6m 2 POS Power PL FAN POWER CORD PowerCord,Fan;2;Straight;ULListed,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: Straight Cordage: SPT-1(18/2)

¥5.1830

详情

07190-12

Qualtek

AC Power Cords 12 FAN PWR CORD POWER CORD FAN RIGHT ANGLE 12" Power Cord; 12 in.; 90 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 12 FAN PWR CORD Cable Assembly Cord 0.305m 18AWG 2 POS Power RCP PowerCord;12in.;90deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 305 Cord Length (in.): 12 Style: 90 Cordage: SPT-1(18/2)

¥4.0786

详情

07100-50

Qualtek

AC Power Cords 50 FAN PWR CORD POWER CORD FAN STRAIGHT 50" Fan Cords & Accessories 50 FAN PWR CORD Cable Assembly Cord 1.27m 18AWG 2 POS Power RCP Fan Accessories Fan Power Cords Cord Length (mm): 1270 Cord Length (in.): 50 Style: Straight Cordage: SPT-1(18/2)

¥7.7316

详情

09081-G

Qualtek

Fan Cords & Accessories 80mm PLASTIC FAN GD PLASTIC FAN GUARD 80MM Fan Accessories 80mm PLASTIC FAN GD Thrml Mgmt Access Fan Guard 80mm Plastic FanGuard,Plastic,31/8Inch(80MM)

¥4.2378

详情

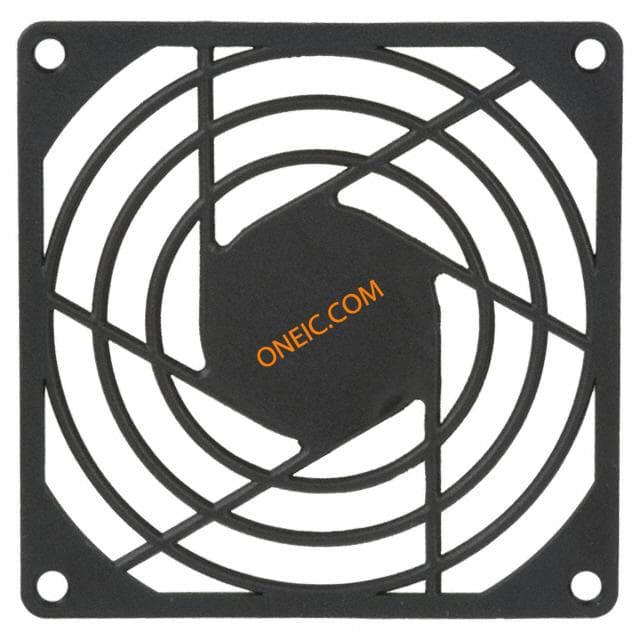

09080-G
