点击放大查看

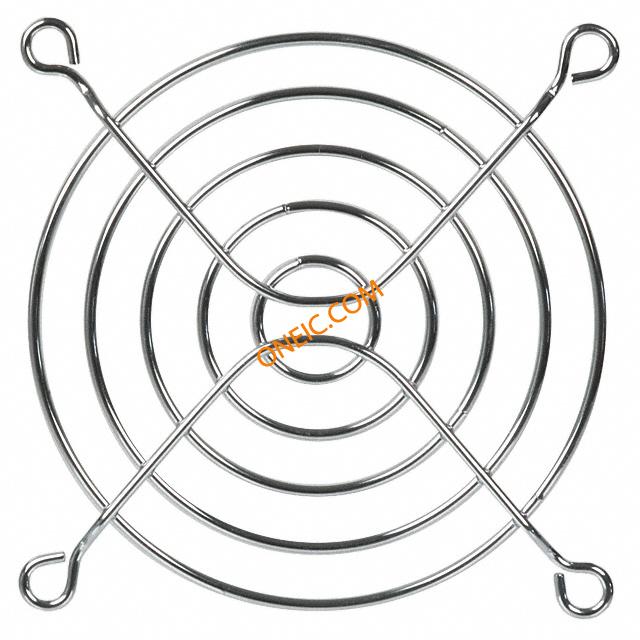

08172
| 制造商 | Qualtek Electronics Corp. |
| 描述 | Fan Cords & Accessories WIRE GUARD 80MM SILVER FINGER GUARD 80MM METAL Fan Accessories WIRE GUARD 80MM SILVER Thrml Mgmt Access Finger Guard FINGER GUARD FanGuard;SAE1008;3.25in.;NickelChrome;0.063in.(RingMaterial);5 Fan Accessories Wire Form Fan Guards For Use With Fan Size (mm): 80 For Use With Fan Size (in.): 3.125 |
| 分类 |
商业参数
| 产品 | Fan Accessories | 交货时间 | 20 Days |
| 其他名称 | CR229 | 子类别 | Thermal Management Accessories |
| 产品类别 | Fan Cords & Accessories | 标准包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 84145920 |
机械参数
| 颜色 | Silver | 深度 | :4.95mm |
| 宽度 | :76.2mm | 表面处理 | NickelChrome |
| 长度 | 76.2 mm | 重量 | 0.014 |
| 直径 | 0.063in.(RingMaterial) | 风扇类型 | :80mm x 80mm |
| 材料（通用） | Metal | 包装方式 | Bulk |
| 厚度 | 0.195in. | 高度（最大） | :76.2mm |
| 适配风扇尺寸 | 80 mm | 孔径 | 2.81in. |
| 屏蔽材料 | :Steel | 主要材料 | FanAccessories |

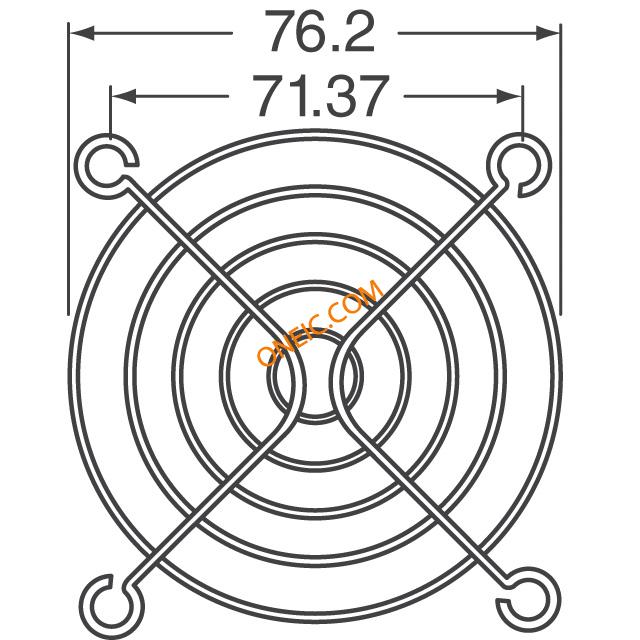

| 尺寸/外形 | 3in.Dia.x0.195in.W,76.2mmDia.x4.95mmW | 直径 - 环内径 | 3in.(Outside) |
| 风扇附件类型 | Finger Guard | 安装孔间距 | :71.37mm |
产品信息
| 类型 | Fan Guards | 产品特性 | 5 Rings |
| 附件类型 | :Finger Guard | 联数 | 5 |
| 适用产品/相关产品 | :Qualtek 80mm Axial Fans | ||
相关型号

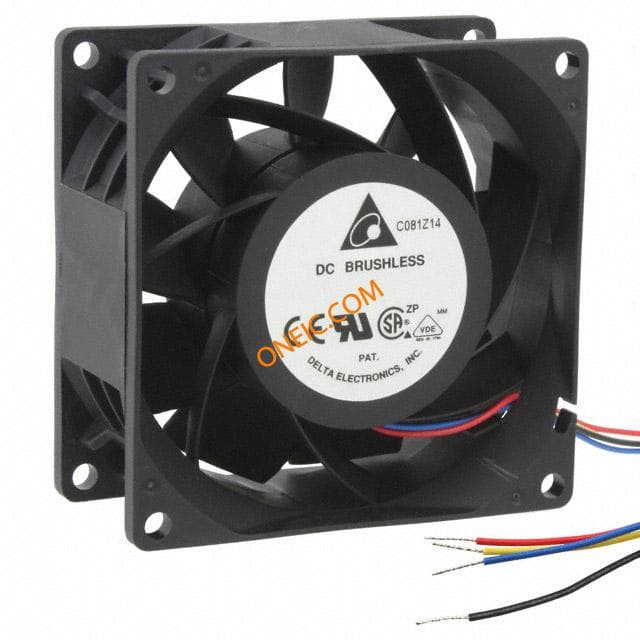

PFC0812DE-SP07
Delta Electronics
DC Fan Ball Bearing 12V 0.8A 9.6W 6000RPM 86.65CFM 54.4dB Flange Mount FAN DC AXIAL 12V 80X38 6000RPM

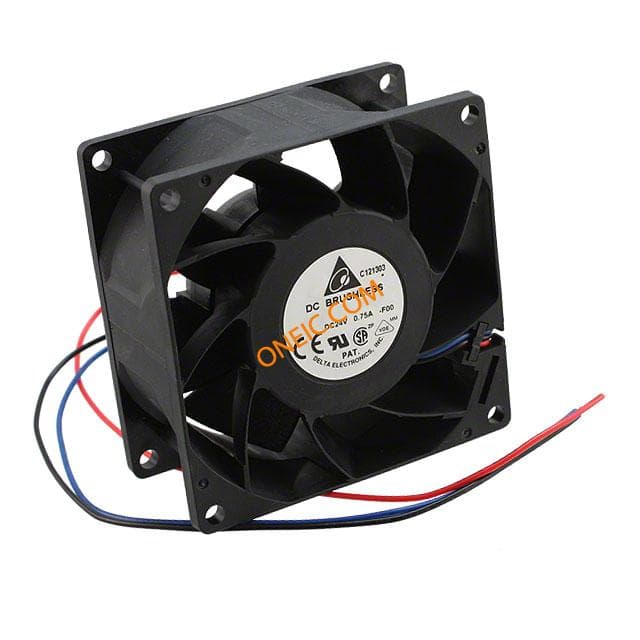

FFB0824EHE-F00
Delta Electronics
DC Fan Ball Bearing 24V 0.5A 12W 5700RPM 80.16CFM 52.5dB Flange Mount 24V DC FAN 80X80X38 MM

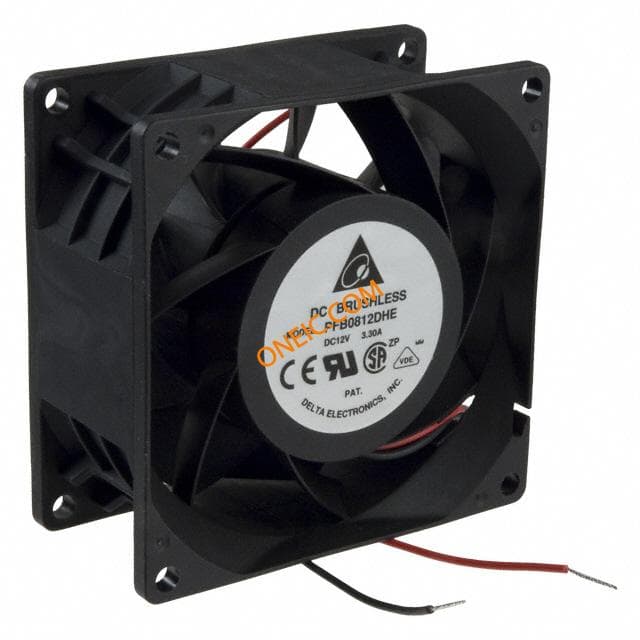

PFB0812DHE
Delta Electronics
DC Fan Ball Bearing 12V 2.75A 33W 9000RPM 132.56CFM 65dB Flange Mount FAN DC AXIAL 12V 80X38 9000RPM
FAA1-08025QBHT31
Qualtek
FAN 80X25.5MM BALL 230VAC TERM Fans AC FAN 80x25mm Ball 230VAC TERM Fan;AC;230V;80x80x25mm;Sq;17/21CFM;9/7W;21.2/27.8dBA;2800RPM;Terminals
FAA1-08025QSHT31
Qualtek
AC 80X25.5MM 230VAC SLEEVE TERM Fans AC FAN 80x25mm Sleeve 230VAC TERM
FAA1-08038QHHW31
Qualtek
AC 80X38MM 230VAC HYDRO WIRE Fans AC FAN 80x38mm 230VAC Hydro WIRE
FAA1-08038NHMW31
Qualtek
AC 80X38MM 115VAC HYDRO WIRE Fans AC FAN 80x38mm Hydro 115VAC WIRE
FAA1-08038QHMW31
Qualtek
AC 80X38MM 230VAC HYDRO WIRE Fans AC FAN 80x38mm 230VAC Hydro WIRE
FAA1-08038QHHT31
Qualtek
AC 80X38MM 230VAC HYDRO TERM Fans AC FAN 80x38mm 230VAC Hydro TERM

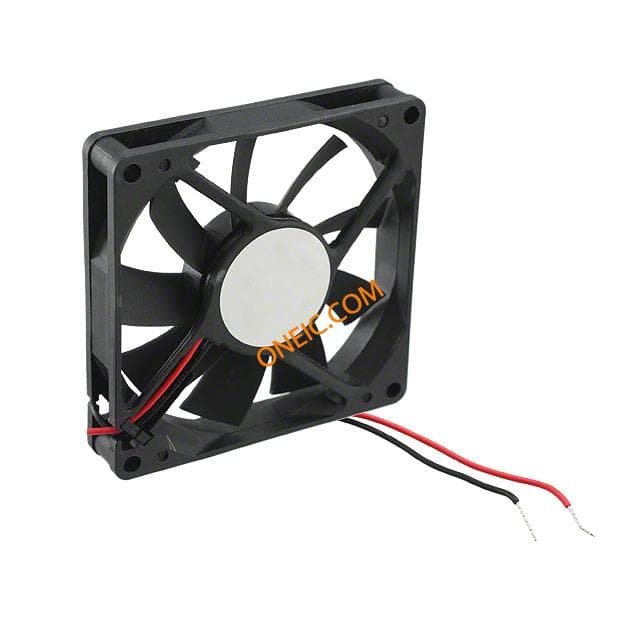

AFB0812HB
