点击放大查看

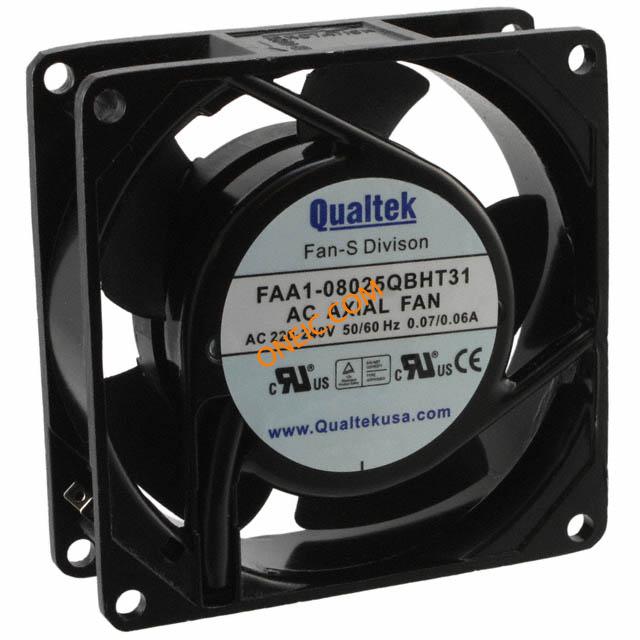

FAA1-08025QBHT31
| 制造商 | Qualtek Electronics Corp. |
| 描述 | FAN 80X25.5MM BALL 230VAC TERM Fans AC FAN 80x25mm Ball 230VAC TERM Fan;AC;230V;80x80x25mm;Sq;17/21CFM;9/7W;21.2/27.8dBA;2800RPM;Terminals |
| 分类 |
商业参数
| 产品 | Fans | 交货时间 | 119 Days |
| 子类别 | Blowers and Fans | 产品类别 | Fans |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 噪声 | 27.8 dB(A) | 转速 | 2300 RPM, 2800 RPM |
| 频率 | 50/60Hz | 功率（瓦） | 10.0W |
| 额定功率 | 15.18 W, 13.11 W | 额定电压 | 230VAC |
| 供电电压 | 230 V | 最大额定电流 | 0.060A |
机械参数
| RPM | 2800 RPM | 尺寸 | 3.2x1(80x25)In.(mm) |
| 重量 | 0.463 lb (210.01g) | 风量 | 21.0 CFM (0.595m³/min) |
| 风扇类型 | Tubeaxial | 材料（通用） | AluminumAlloy |
| 旋转范围 | CW | 端接方式 | 2 Terminals |
| 轴承类型 | Ball | 静压 | 0.125 in H2O (31.1 Pa) |
| 壳体材料 | Aluminum Alloy | 刀片材料 | Plastic |
| 框架材料 | Aluminum | 主要材料 | Fans |
| 尺寸/外形 | Square - 80mm L x 80mm H x 25mm W | 端接样式 | Terminals |
| 风扇附件类型 | 3.2x1(80x25)In.(mm) | 总体尺寸 | 3.2x3.2x1In. |
产品信息
| 类型 | Axial Fans | 功能 | AC |
| 方向 | ExhaustoverStruts | 开关类型 | AC |
| 制造商全称 | FAA1-08025Series | 配置 | Square |
环境参数
| 工作温度 | 14 ~ 158°F (-10 ~ 70°C) | 自然散热热阻 | 17/21CFM |
| 结工作温度 | 70°C | ||
文档与媒体
相关型号
07145-24
Qualtek
AC Power Cords 24 FAN PWR CORD POWER CORD FAN 45DEG ANGLE 24" Power Cord; 24 in.; 45 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.609m 18AWG 2 POS Power RCP FAN POWER CORD PowerCord;24in.;45deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: 45 Cordage: SPT-1(18/2)
07145-SP072
Qualtek
AC Power Cords 72 45 DEGREE PLUG POWER CORD W/PLUG FAN 45DEG 72" Fan Cords & Accessories 72 45 DEGREE PLUG
07100-72
Qualtek
AC Power Cords 72 FAN PWR CORD POWER CORD FAN STRAIGHT 72" Fan Cords & Accessories 72 FAN PWR CORD
07199-24
Qualtek
AC Power Cords 24 FAN PWR CORD POWER CORD FAN T-TYPE 24" Fan Cord; 24 in.; T-Type; UL Listed; CSA Certified; Blunt Cut; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.609m 18AWG 2 POS Power RCP FAN POWER CORD FanCord;24in.;T-Type;ULListed,CSACertified;BluntCut;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: T-Type Cordage: SPT-1(18/2)
07145-36
Qualtek
AC Power Cords 36 FAN PWR CORD POWER CORD FAN 45DEG ANGLE 36" Power Cord; 36 in.; 45 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 36 FAN PWR CORD Thrml Mgmt Access Fan Cord FAN POWER CORD PowerCord;36in.;45deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 915 Cord Length (in.): 36 Style: 45 Cordage: SPT-1(18/2)
07100-SP036
Qualtek
AC Power Cords 36FAN PWR CORD POWER CORD W/PLUG STRAIGHT 36" Fan Cords & Accessories 36FAN PWR CORD
07199-80
Qualtek
AC Power Cords MOLDED FAN CRD FEM T 80 CORD POWER FAN T-TYPE 80" Fan Cords & Accessories MOLDED FAN CRD FEM T 80 80in,T-PlugStyle,FanPowerCord Fan Accessories Fan Power Cords Cord Length (mm): 2034 Cord Length (in.): 80 Style: T-Type Cordage: SPT-1(18/2)

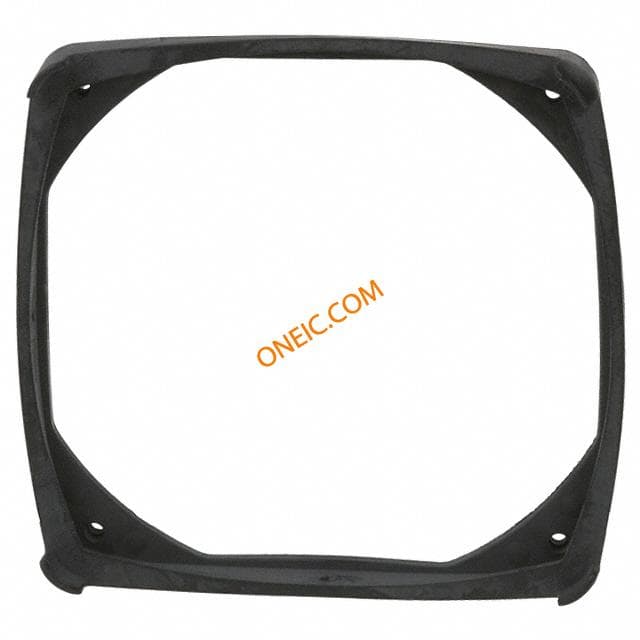

QLM-80-40-10
Qualtek
Fan Cords & Accessories 80mm FAN SILENCER FAN SLEEVE 80MM BLACK RUBBER Fan Accessories 80mm FAN SILENCER FAN VIBRATION SLEEVE Fan Accessories Fan Silencer and Accessories QLM Fan Vibration Sleeves Fan Size: 80 Fan Flange Thickness: 40 Material: TPE (Thermoplastic Elastomer) RoHS Compliant Color: Black

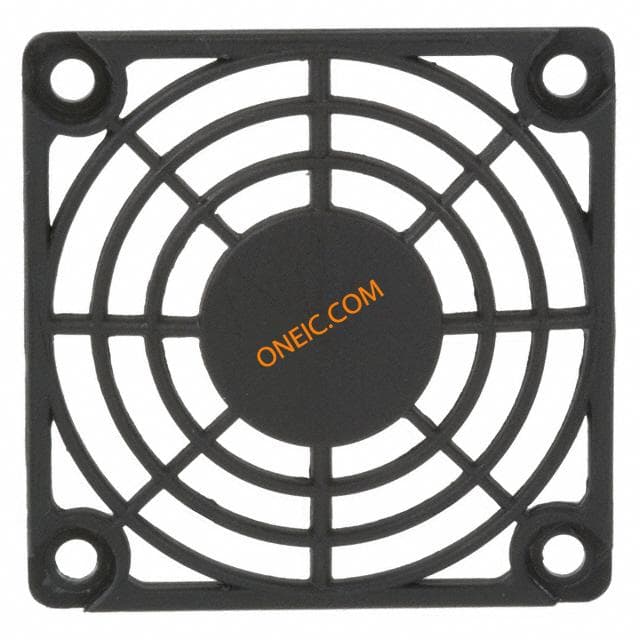

09252-G
Qualtek
Fan Cords & Accessories 60mm PLASTIC FAN GD FINGER GUARD 60MM PLASTIC Fan Accessories 60mm PLASTIC FAN GD Thrml Mgmt Access Fan Guard Plastic FanGuard,Plastic,21/2Inch(60MM)
08172
Qualtek
Fan Cords & Accessories WIRE GUARD 80MM SILVER FINGER GUARD 80MM METAL Fan Accessories WIRE GUARD 80MM SILVER Thrml Mgmt Access Finger Guard FINGER GUARD FanGuard;SAE1008;3.25in.;NickelChrome;0.063in.(RingMaterial);5 Fan Accessories Wire Form Fan Guards For Use With Fan Size (mm): 80 For Use With Fan Size (in.): 3.125

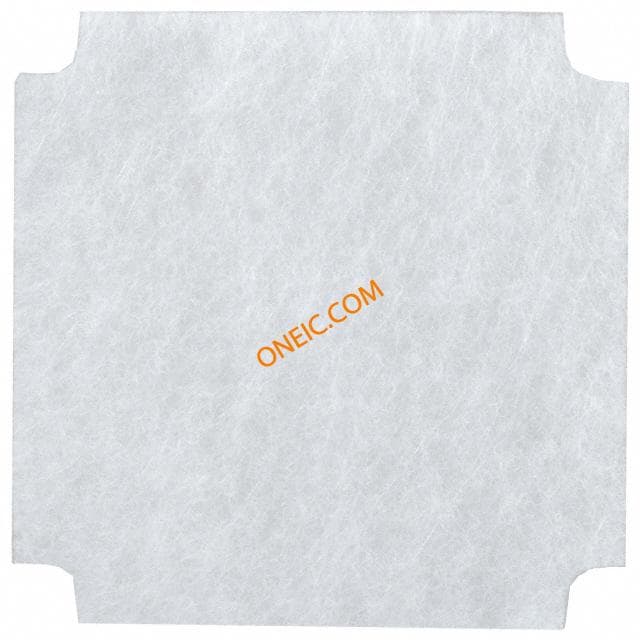

QF-80-01
Qualtek
Fan Cords & Accessories 80mm FILTR MEDIA FILTER MEDIA 80MM WHITE Fan Accessories 80mm FILTR MEDIA Fan Accessories Fan Silencer and Accessories Filter Media Fan Size: 80 Material: Foam dust filter FL100 Filter Class: G2 DIN EN 779
06325-B
Qualtek
Fan Cords & Accessories ALUM FLTR BLK 3 1/8 FAN FILTER SCREEN 80MM Filter; 06 Series; 3-1/8 in. Fan; Aluminum; Black; 3.30 in. H x 0.175 in. W Fan Accessories ALUM FLTR BLK 3 1/8 Thrml Mgmt Access Fan Filter Screen 80mm Aluminum EMI/RFI Fan Filter Filter;06Series;3-1/8in.Fan;Aluminum;Black;3.30in.Hx0.175in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 80 mm - 3 1/8 in. Use With Fan Size (in.): 3.125 Finish: Anodized (Black) Sixz (inches) H (sq): 3.3 Size (inches) Thickness: 0.175 M/C: 2.81
08132
Qualtek
Fan Cords & Accessories WIRE FAN GUARD FINGER GUARD 80MM METAL Fan Guard; Wire Form; 3 1/8 Inch (80MM) Fan Accessories WIRE FAN GUARD Thrml Mgmt Access Fan Guard 80mm Carbon Steel FanGuard,WireForm,31/8Inch(80MM) Fan Accessories Wire Form Fan Guards For Use With Fan Size (mm): 80 For Use With Fan Size (in.): 3.125

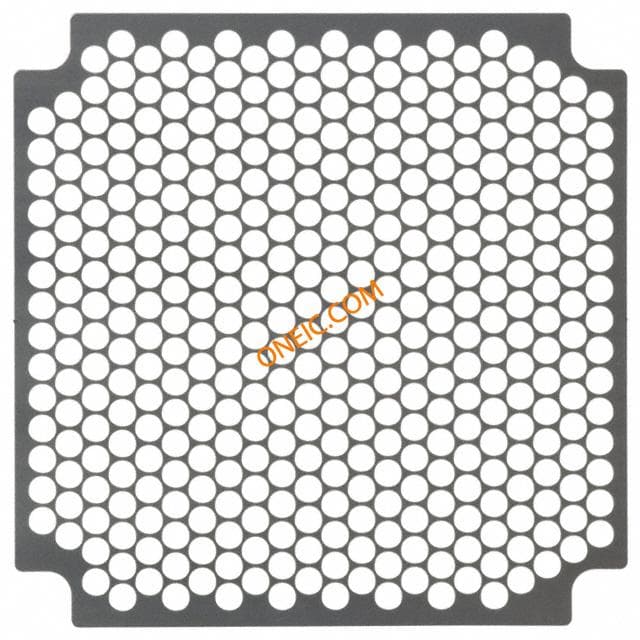

QSB-80-01
