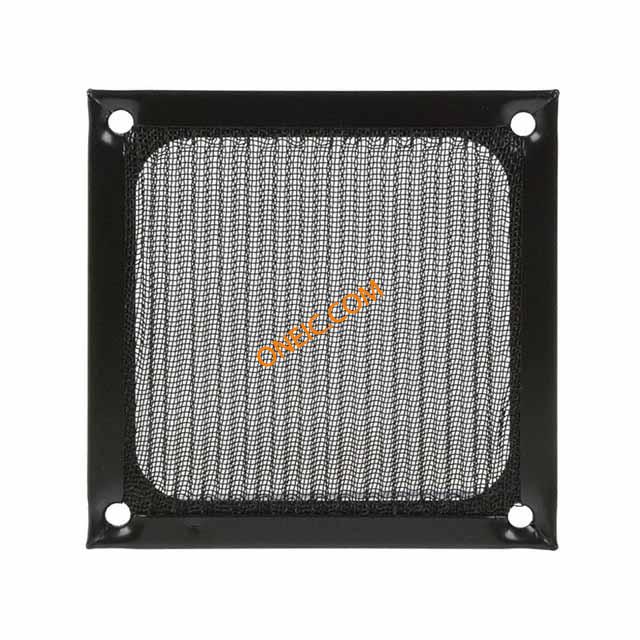

06325-B
| 制造商 | Qualtek Electronics Corp. |
| 描述 | Fan Cords & Accessories ALUM FLTR BLK 3 1/8 FAN FILTER SCREEN 80MM Filter; 06 Series; 3-1/8 in. Fan; Aluminum; Black; 3.30 in. H x 0.175 in. W Fan Accessories ALUM FLTR BLK 3 1/8 Thrml Mgmt Access Fan Filter Screen 80mm Aluminum EMI/RFI Fan Filter Filter;06Series;3-1/8in.Fan;Aluminum;Black;3.30in.Hx0.175in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 80 mm - 3 1/8 in. Use With Fan Size (in.): 3.125 Finish: Anodized (Black) Sixz (inches) H (sq): 3.3 Size (inches) Thickness: 0.175 M/C: 2.81 |
| 分类 |
商业参数
| 产品 | Fan Accessories | 交货时间 | 112 Days |
| 子类别 | Thermal Management Accessories | 产品类别 | Fan Cords & Accessories |
| 标准包装数量 | 200 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 84145920 |
机械参数
| 颜色 | Black | 长度 | 83.06 mm |
| 重量 | 0.018 | 风扇类型 | :80mm x 80mm |
| 材料（通用） | Polycarbonate (PC) | 包装方式 | Bulk |
| 基体材料 | :Aluminum | 适配风扇尺寸 | 80 mm |
| 屏蔽材料 | :Aluminium | 风扇附件类型 | Filter/Screen |

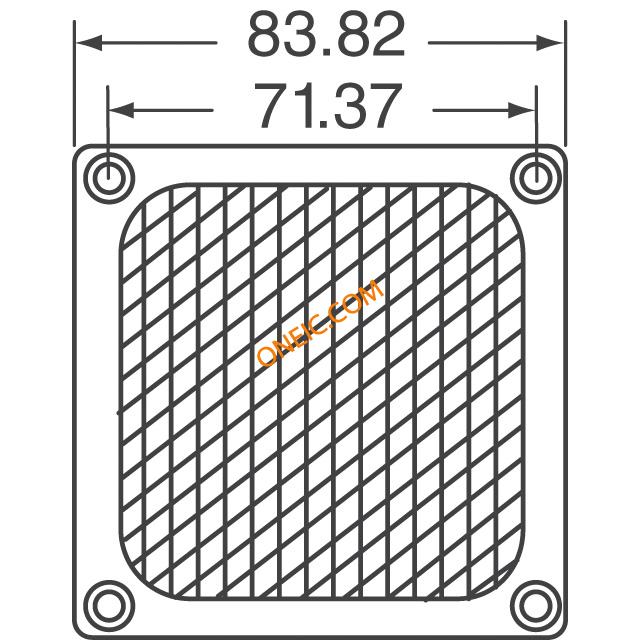

| 安装孔间距 | :71.37mm | ||
产品信息
| 类型 | Filter Screen | 附件类型 | :EMI / RFI Fan Filter |
| 适用产品/相关产品 | :Qualtek 80mm Axial Fans | ||
