点击放大查看

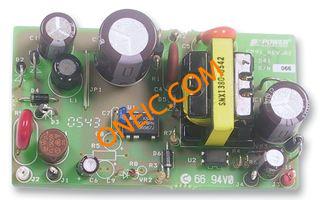

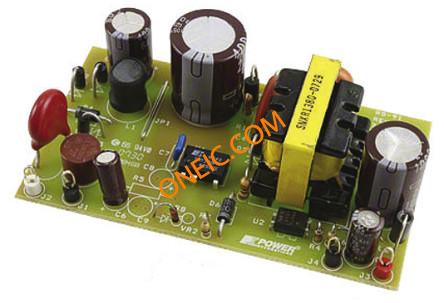

RDK-91

制造商	Power Integrations, Inc.
描述	DESIGN ACCELERATOR KIT REFERENCE DESIGN KIT FOR AN AC-DC ADAPTER PCBs & Breadboards TINYSWITCH III REF. DESIGN KIT KIT DESIGN REF TINYSWITCH-III Development Kit, Power Management With Documentation, Power Supply, Reference Board TINYSWITCH-III, POWER SUPPLY, RDK Switching controller design kit, RDK-91, Power Integrations
分类	电容器陶瓷电容器高压陶瓷电容器

对参数有疑问？问 AI 助手

商业参数

产品	Accessories & Kits	产品类别	PCBs & Breadboards
标准包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85235290

电气参数

额定输出功率	12W	输出电流	1A
供电电流	:1A	稳压器拓扑	Flyback
最小输入电压	12V

机械参数

重量	0.421	包装方式	Box
电路板厚度	Bare (Unpopulated) and Fully Populated

产品信息

类型	:Reference Design Kit	内容	2 Boards, Samples
技术	Power Management	套件内容	Documentation, Power Supply, Reference Board
主要用途	AC/DC, Primary Side	卡标准	Development Kit
输出及类型	1, Non-Isolated	使用的IC/零件	TNY274, TNY275, TNY276, TNY277, TNY278, TNY279, TNY280
支持MCU系列	:TNY278P

环境参数

最高温度限值

:50°C

文档与媒体

PDF 文档

TNY274-280

PDF 文档

RDK-91

PDF 文档

4563.pdf

相关型号

TNY280PN

power integrations

Off Line Switcher 7-Pin PDIP-C IC OFFLINE SWIT OVP OTP HV 8DIP TNY280PN, Intelligent Power Switch Off Line Switcher, 36.5W, 7-Pin, PDIP-8C AC/DC Converters 28.5W 85-265 VAC 36.5W/230 VAC Analog switch; DIP8 Switching Regulator DIP-8B (7-lead), TNY280PN, Power Integrations Power Integrations , 单输出智能电源开关, 36.5W, 7针 PDIP封装

¥5.2324

详情

TNY279PN

power integrations

Off Line Switcher 7-Pin PDIP-C IC OFFLINE SWIT OVP OTP HV 8DIP TNY279PN, Intelligent Power Switch Off Line Switcher, 32W, 7-Pin, PDIP-8C AC/DC Converters 25W 85-265 VAC 32W/230 VAC Analog switch; DIP8 Switching Regulator DIP-8B (7-lead), TNY279PN, Power Integrations Power Integrations 智能电源开关, 32W, 7针 PDIP封装

¥4.0788

详情

TNY277GN

power integrations

Off Line Switcher 7-Pin SMD-C IC OFFLINE SWIT OVP OTP HV 8SMD TNY277GN, Intelligent Power Switch Off Line Switcher, 23.5W, 7-Pin, PDIP SMD, SMD-8C AC/DC Converters 18.5W 85-265 VAC 23.5W/230 VAC Analog switch; SO8 Power Integrations , 单输出智能电源开关, 23.5W, 7针 PDIP SMD封装

¥4.7260

详情

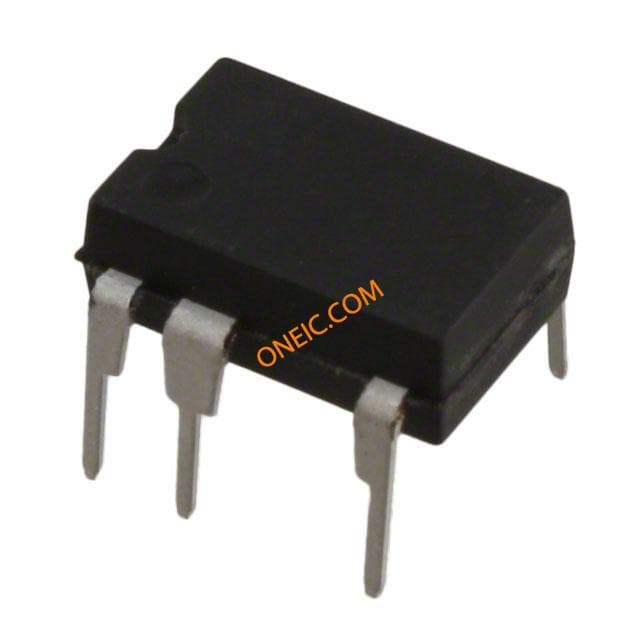

TNY280PG
