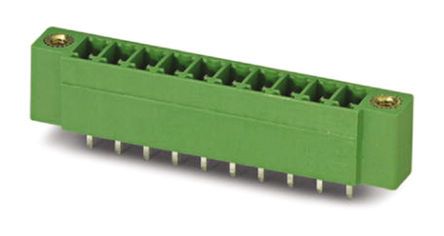

1843208
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks MCD 1.5/15-G1-3.81 Conn Wire to Board HDR 30 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 30POS R/A 3.81MM Header for PCB plug connector MCD 1,5/15-G1-3,81 MCD15/15-G1-381 Phoenix Contact COMBICON MCD 系列 3.81mm节距 15路 印刷电路板接线端子块, 焊接端接, 8A |
| 分类 |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 8A | 电压 | 300V |
| 额定电压 | 160 V | 最大额定电流 | 8 A |
| 最小输入电压 | 160V | 最小供电电压 | 160V |
机械参数
| 颜色 | Green | 深度 | 21.9 mm |
| 间距 | 3.81 mm | 高度 | 22.7 mm |
| 重量 | 4.127054 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Right Angle | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | 锡 | 壳体材料 | Polyamide |
| 总长度 | 58.54 mm | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 排针方向 | 90°, Right Angle |
| 触点数 | 15 | 位数 | 30 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MCD | 层数 | 2 |
| 每层位数 | 15 | ||
文档与媒体
相关型号
1897526
Phoenix Contact
Pluggable Terminal Blocks QC 0 5/15-ST-3 81 Conn Terminal Block F 15 POS 3.81mm ST Cable Mount 6A TERM BLOCK PLUG 15POS STR 3.81MM QC05/15-ST-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 15 路 母 绿色 插头, IDC端接
1851177
Phoenix Contact
Pluggable Terminal Blocks FK-MCP 1.5/15-ST-3.81 Conn Terminal Block F 15 POS 3.81mm ST Cable Mount 8A TERM BLOCK PLUG 15POS STR 3.81MM Printed-circuit board connector FK-MCP 1,5/15-ST-3,81 FK-MCP15/15-ST-381 Phoenix Contact MINI COMBICON FK-MCP 系列 3.81mm 节距 15 路 母 绿色 插头, 弹簧笼端接
1803701
Phoenix Contact
Pluggable Terminal Blocks 15P 3.81mm 180 DEG Conn Terminal Block F 15 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 15POS STR 3.81MM Printed-circuit board connector MC 1,5/15-ST-3,81 Conn;TermBlk;Plug;Screw;15;3.81mm;30-14AWG;8A;300V;PA;M2
1862700
Phoenix Contact
Pluggable Terminal Blocks IMC 1.5/15-G-3.81 Conn Wire to Board RCP 15 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 15POS R/A 3.81MM Header, nominal current: 8 A, rated voltage: 160 V, pitch: 3.81 mm, no. of positions: 15, mounting: Soldering IMC15/15-G-381 Phoenix Contact MINI COMBICON IMC 系列 3.81mm 节距 15 路 反相管座, 焊接端接

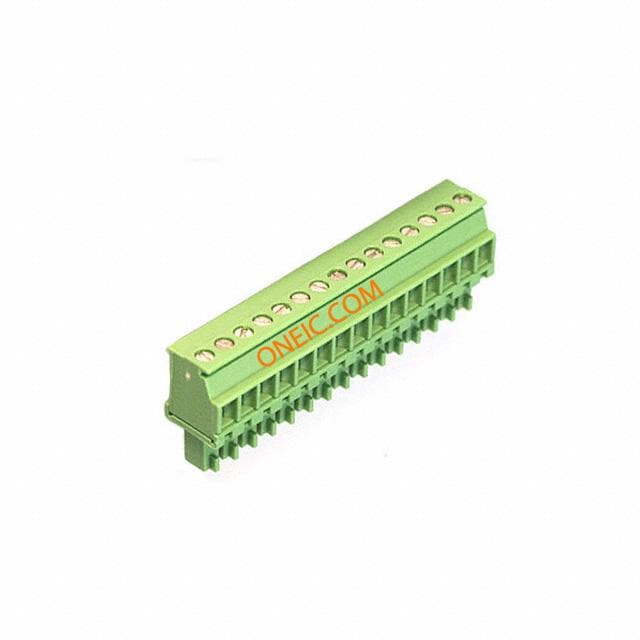

1827253
Phoenix Contact
Pluggable Terminal Blocks 15P 3.81mm 90DEG Conn Terminal Block F 15 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 15POS 3.81MM Printed-circuit board connector MCVR 1,5/15-ST-3,81 Conn;TermBlk;Plug;Screw;15;3.81mm;30-14AWG;8A;300V;PA;M2

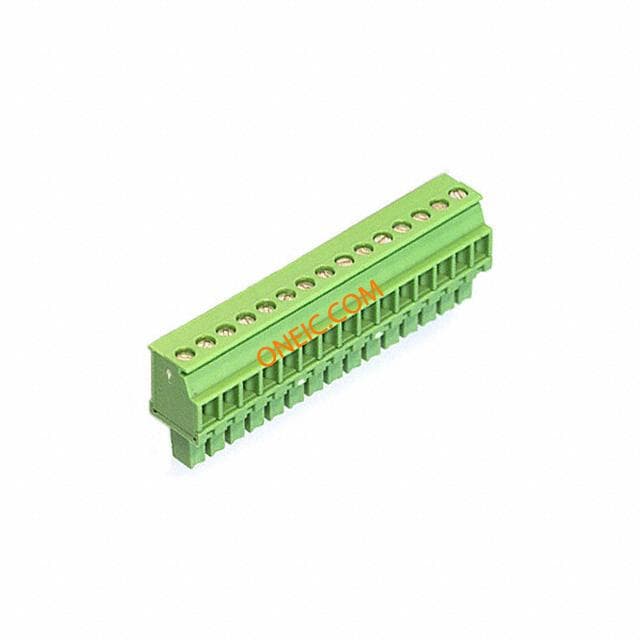

1827101
Phoenix Contact
Pluggable Terminal Blocks 15P 3.81mm 270DEG Conn Terminal Block F 15 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 15POS 3.81MM Printed-circuit board connector MCVW 1,5/15-ST-3,81 Conn;TermBlk;Plug;Screw;15;3.81mm;30-14AWG;8A;300V;PA;M2
