1862700
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks IMC 1.5/15-G-3.81 Conn Wire to Board RCP 15 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 15POS R/A 3.81MM Header, nominal current: 8 A, rated voltage: 160 V, pitch: 3.81 mm, no. of positions: 15, mounting: Soldering IMC15/15-G-381 Phoenix Contact MINI COMBICON IMC 系列 3.81mm 节距 15 路 反相管座, 焊接端接 |
| 分类 |
商业参数
| 产品 | Headers - Inverted | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 8A | 电压 | 300V |
| 额定电压 | 160 V | 供电电压 | 300V |
| 最大额定电流 | 8 A | 最小输入电压 | 160V |
机械参数
| 颜色 | Green | 深度 | 5.3 mm |
| 间距 | 0.150" (3.81mm) | 高度 | 1.95 mm |
| 重量 | 0.178486 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Right Angle | 接触镀层 | Tin |
| 安装样式 | Surface Mount | 排数 | 1 |
| 壳体材料 | Polyamide | 总长度 | 10.2 mm |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 15 |
| 位数 | 15 | 接线端子类型 | Header, Female Sockets |
| 每层极数 | 15 | 第二连接器安装特性 | 90°, Right Angle |
产品信息
| 类型 | Wire to Board | 连接器性别 | RCP |
| 系列 | IMC | 层数 | 1 |
| 每层位数 | 15 | 输出配置 | Through Hole |
文档与媒体
相关型号
1830538
Phoenix Contact
Pluggable Terminal Blocks MCDV 1.5/15-G-3.81 Conn Shrouded Header HDR 30 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 30POS VERT 3.81MM Header for PCB plug connector MCDV 1,5/15-G-3,81 MCDV15/15-G-381 Phoenix Contact COMBICON MCDV 系列 15路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A
1843208
Phoenix Contact
Pluggable Terminal Blocks MCD 1.5/15-G1-3.81 Conn Wire to Board HDR 30 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 30POS R/A 3.81MM Header for PCB plug connector MCD 1,5/15-G1-3,81 MCD15/15-G1-381 Phoenix Contact COMBICON MCD 系列 3.81mm节距 15路 印刷电路板接线端子块, 焊接端接, 8A
1832866
Phoenix Contact
Pluggable Terminal Blocks MCVK 1 5/15-G-3 81 Conn Terminal Block F 15 POS 3.81mm Screw 8A PLUG TERM BLOCK 15POS 3.81MM PLUGCOMPONENT,PITCH:3.81MMPOS15

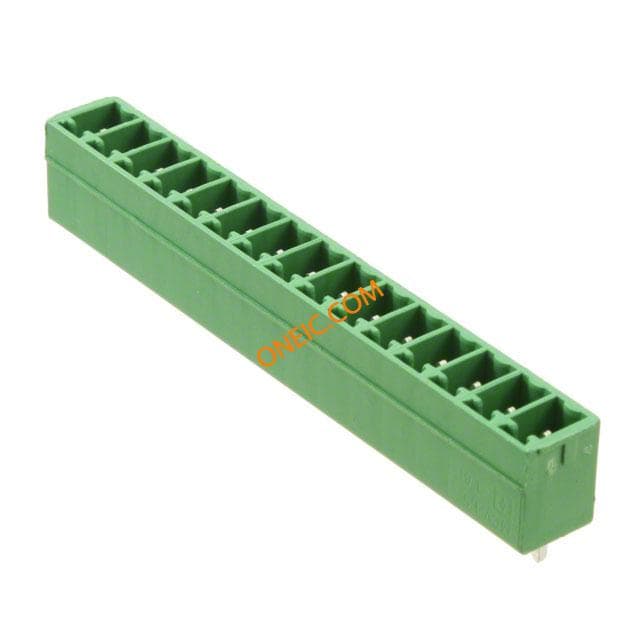

1803552
Phoenix Contact
Pluggable Terminal Blocks 3.81 15P HEADER 180D Conn Wire to Board HDR 15 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 15POS VERT 3.81MM Header for PCB plug connector MCV 1,5/15-G-3,81 Conn;TermBlk;PCB;Header;SnglLvl;Sldr;15Pole;3.81mmPitch;COMBICON

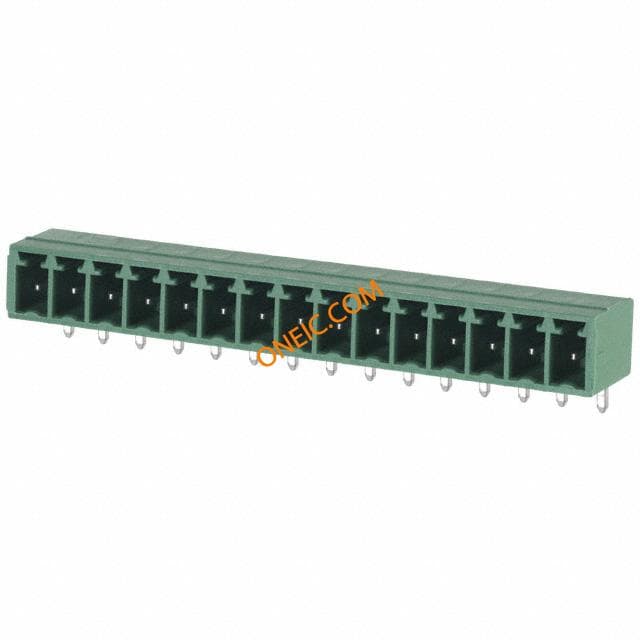

1803400
