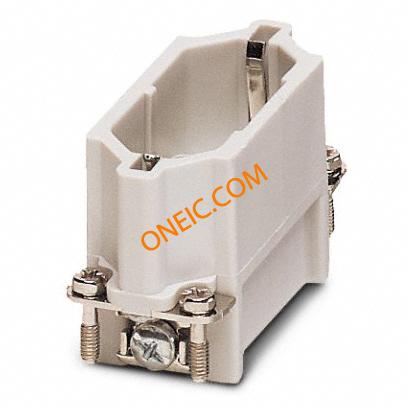

点击放大查看
1772324
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-D 15-ESTC Conn HEAVYCON Insert F 15 POS Crimp ST Panel Mount MALE INSERT D15 SERIES 15POS Contact insert HC-D 15-ESTC HC-D15-ESTC Phoenix Contact D15 系列 15P+E 公插 RJ45-Rangierfeld , 额定电流 10A/ 250 V |
| 分类 |
商业参数
| 交货时间 | 12 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Rectangular | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 10A |
| 最小输入电压 | 250V | ||
机械参数
| 尺寸 | D15 | 深度 | 31.5 |
| 高度 | 22.8 | 重量 | 1.162630 oz |
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | CK 1.6-ED | 安装类型 | Straight |
| 连接器类型 | Insert without Contacts | 接触镀层 | Silver |
| 排数 | 3 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 总长度 | 56.5 |
| 端接样式 | Crimp | 第一触头极性 | F |
| 触点数 | 15 | 位数 | 15 |
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Male |
| 系列 | D15 | 极性 | 15P+E |
| 产品子类型 | Inserts | 附件类型 | 触点插件 |
| 行业别名 | HC-D 15-ESTC | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
