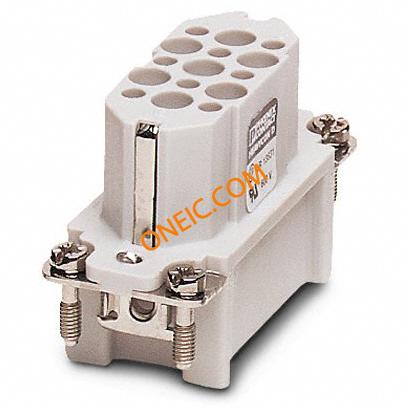

1772311

点击放大查看

1772311

制造商
Phoenix Contact GmbH & Co. KG
描述ヘビーデューティパワーコネクタ HC-D 15-EBUC Conn HEAVYCON Insert F 15 POS Crimp ST Panel Mount FEMALE INSERT D15 SERIES 15POS Contact insert HC-D 15-EBUC Heavy Duty Power Connectors HC-D 15-EBUC HC-D15-EBUC Phoenix Contact D15 系列 15P+E 母座 RJ45-Rangierfeld , 额定电流 10A/ 250 V
分类
连接器解决方案重载连接器重载连接器（扩展）
对参数有疑问？问 AI 助手

商业参数

交货时间12 Days商标名HEAVYCON
子类别Connector Rectangular产品类别Heavy Duty Power Connectors
标准包装数量1工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

额定电压600V最大额定电流10A
最小输入电压250V

机械参数

尺寸D15深度33
高度22.8重量1.162630 oz
包装方式Bulk端接方式Crimp
触头类型CK 1.6-ED安装类型Straight
连接器类型Insert without Contacts接触镀层Silver
排数3插入力Female
触头材料Copper Alloy壳体材料Polyamide
总长度56.5端接样式Crimp
第一触头极性F触点数15
位数15线规或范围 - AWG26-14

产品信息

类型HEAVYCON Insert连接器性别Female
系列D15极性15P+E
产品子类型Inserts附件类型触点插件
行业别名HC-D 15-EBUC

环境参数

工作温度-40°C ~ 125°C

文档与媒体

PDF 文档
1772311
