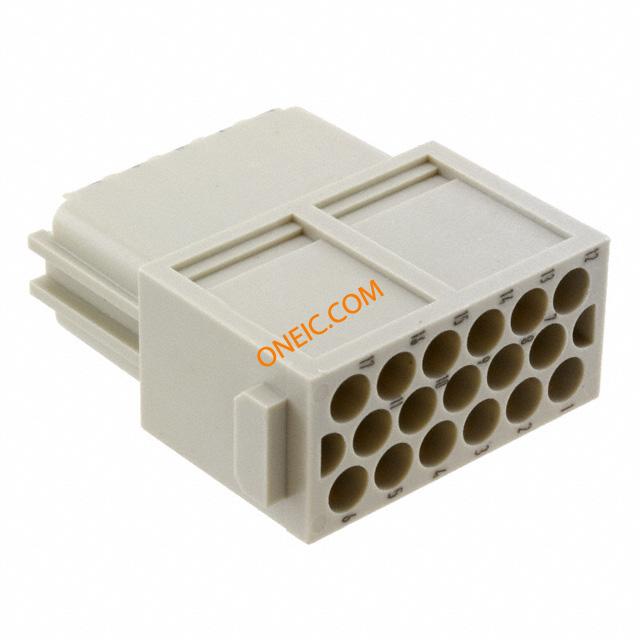

1636486

点击放大查看

1636486

制造商
Phoenix Contact GmbH & Co. KG
描述Heavy Duty Power Connectors Insert Female 17P Crimp Conn HEAVYCON Insert F 17 POS Crimp ST Cable Mount HEAVYCON INSERT MODULE FML 17POS HC-M-17-MOD-BU
分类
连接器解决方案重载连接器重载连接器（扩展）
对参数有疑问？问 AI 助手

商业参数

商标名HEAVYCON产品类别Heavy Duty Power Connectors
标准包装数量2工厂包装数量2

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

额定电压250V最大额定电流10 A
最小输入电压160V

机械参数

深度34高度14.6
重量0.396832 oz包装方式Bulk
端接方式Crimp触头类型CK 1.6-ED
安装类型Straight连接器类型Module without Contacts
接触镀层Gold排数3
插入力Female触头材料Copper Alloy
壳体材料Polycarbonate (PC)总长度34.2
端接样式Crimp第一触头极性F
触点数17位数17

产品信息

类型HEAVYCON Insert连接器性别Female
产品子类型Inserts

环境参数

工作温度-40°C ~ 125°C
