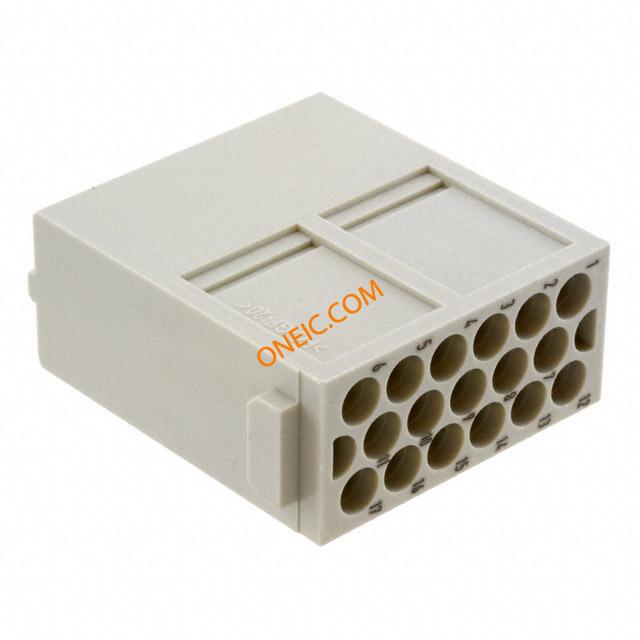

点击放大查看
1636473
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ Insert Male 17P Crimp Conn HEAVYCON Insert M 17 POS Crimp ST Cable Mount HEAVYCON INSERT MODULE ML 17POS HC-M-17-MOD-ST Heavy Duty Power Connectors Insert Male 17P Crimp ContactInsertModule;HEAVYCON;Male;17-Pos.;CrimpConnection;HC-M-17-MOD-ST |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 2 | 工厂包装数量 | 2 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10 A |
机械参数
| 重量 | 0.356267 oz | 包装方式 | Bulk |
| 端接方式 | Crimp | 触头类型 | CK 1.6-ED |
| 安装类型 | Cable Mount | 连接器类型 | Module without Contacts |
| 接触镀层 | Silver | 插入力 | Male |
| 壳体材料 | Polycarbonate (PC) | 端接样式 | Crimp |
| 第一触头极性 | M | 触点数 | 17 |
| 位数 | 17 | ||
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Male |
| 产品子类型 | Inserts | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
