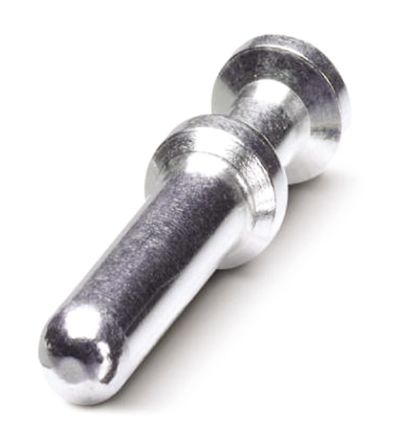

1586198
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ Turn 4.0 Crimp Male Cont. 10mm2 Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT SOCKET Heavy Duty Power Connectors Turn 4.0 Crimp Male Cont. 10mm2 Ag CK40-ED-1000STAG Phoenix Contact HC-M 系列 公插 压接触点 , 适用于HC-M-02 |
| 分类 |
商业参数
| 商标名 | PLUSCON | 其他名称 | CK4 0-ED-10 00ST AG |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 深度 | 6 | 高度 | 6 |
| 包装方式 | Bulk | 导线线规 | 8 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Silver | 触头材料 | Copper Alloy |
| 总长度 | 29.1 | 接触件端接 | Crimp |
产品信息
| 类型 | Machined | 连接器性别 | PIN |
| 系列 | CK | 附件类型 | 压接触点 |
| 适用产品/相关产品 | HC-M-02 | ||
环境参数
| 工作温度 | 125 | ||
