1585799
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors Insert Male 3 Pwr /4 Control, Crimp Conn HEAVYCON Contact Insert Module PIN 3Power/4Control POS Crimp ST MODULE MALE 3+4POS CRIMP HC-M-03/04-MOD-STC Phoenix Contact 触点模块 |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 其他名称 | HC-M-03/04-MOD-STC |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 10 A, 40 A |
| 最小输入电压 | 830V | ||
机械参数
| 深度 | 44.3 | 高度 | 14.6 |
| 重量 | 0.515705 oz | 包装方式 | Bulk |
| 端接方式 | Crimp | 触头类型 | CK 1.6-ED, CK 4.0-ED |
| 安装类型 | Straight | 连接器类型 | Module without Contacts |
| 插入力 | Male | 触头材料 | Copper Alloy |
| 壳体材料 | Polycarbonate (PC) | 总长度 | 34.2 |
| 端接样式 | Crimp | 第一触头极性 | PIN |
| 触点数 | 3Power/4Control | 位数 | 3+4 |
| 线规或范围 - AWG | 16-10, 26-14 | ||
产品信息
| 类型 | HEAVYCON Contact Insert Module | 连接器性别 | Male |
| 系列 | Heavycon | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Inserts | 附件类型 | 触点插件 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号
1663255
Phoenix Contact
Heavy Duty Power Connectors CK4.0-ED-4.00ST AG Contact PIN Crimp ST Cable Mount TURNED 4.0 CRIMP CONTACT Crimp contact CK4,0-ED-4,00ST AG Heavy Duty Power Connectors Turn 4.0 Crimp Male Diam. 4.00mm, Ag CK40-ED-400STAG
1663349
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Male Diam. 0.5mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 20AWG Crimp contact CK1,6-ED-0,50ST AG Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.5mm Ag TURNED1.6CRIMPCONTACTMALE TURNED 1.6 CRIMP CONTACT MALE
1663365
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 18AWG Phoenix Contact 1663365 Crimp Contact Terminal Block, Series: CK Crimp contact CK1,6-ED-1,00ST AG Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag TURNED1.6CRIMPCONTACTMALE Phoenix Contact CK 系列 压接触点
1663268
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 4.0 Crimp Male Diam. 6.00mm, Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 10AWG Crimp contact CK4,0-ED-6,00ST AG Heavy Duty Power Connectors Turn 4.0 Crimp Male Diam. 6.00mm, Ag CK40-ED-600STAG

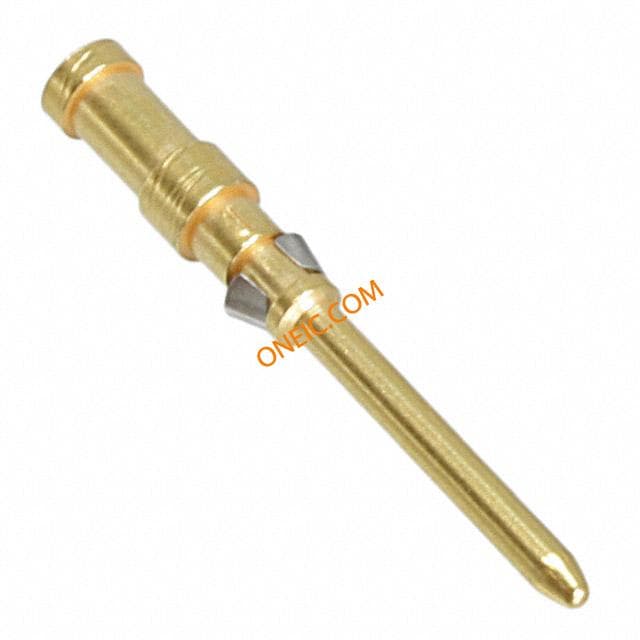

1674901
