点击放大查看

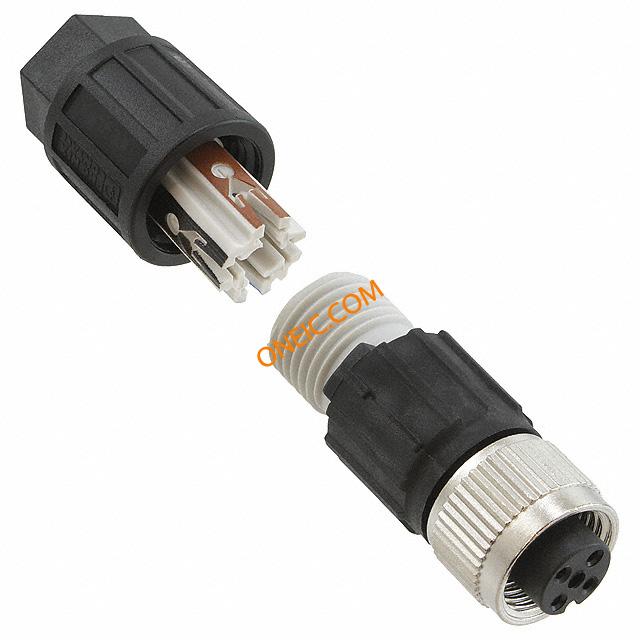

1521588
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Circular Metric Connectors SPEEDCON-SACC-M12FS 4QO-0.34-M SCO Conn Sensor Actuator F 4 POS ST Cable Mount 4 Terminal 1 Port CONN M12 4POS SOCKET Phoenix Contact M12 4-Pin Female Connector Sensor/actuator connectors SACC-FS-4QO-0,34-M SCO CONNECTOR,IDC,4POSITIONFEMALE,METALNUT,WIRERANGE:#26-22AWG |
| 分类 |
商业参数
| 商标名 | PLUSCON Field | 产品类别 | Circular Metric Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 125V | 最大额定电流 | 4A |
机械参数
| 重量 | 0.428931 oz | 直径 | 16.3 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | A | 外壳样式 | Plug |
| 端接方式 | IDC | 触头类型 | 4Signal |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Push-Twist |
| 触头材料 | Bronze | 总长度 | 50 |
| 端接样式 | Through Hole | 第一触头极性 | F |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | M12-4 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | ||
产品信息
| 类型 | Sensor Actuator | 连接器性别 | PL |
| 系列 | M12 | 产品子类型 | Connectors |
| 附件类型 | Connector | 连接类型 | M12 4-Pin |
| 基础产品编号 | SACC-M12FS-4QO-0.34-MSCO | ||
环境参数
| 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof | 工作温度 | -25°C ~ 80°C |
相关型号
1521575
Phoenix Contact
Circular Metric Connectors SPEEDCON-SACC-M12MS 4QO-0.34-M SCO Conn Sensor Actuator M 4 POS Faston ST Cable Mount 4 Terminal 1 Port CONN M12 4POS PLUG CONNECTOR,IDC,4POSITIONMALE,METALNUT,WIRERANGE:#26-22AWG Phoenix Contact M12 4 引脚 公 连接器插头
1432606
Phoenix Contact
Circular Metric Connectors SACC-MR-4SC M SCO Conn Sensor Actuator M 5 POS 1 Port CONN M12 4POS ANGLED PLUG Sensor plg,M12 R/A sprng cg 4wy,SPEEDCON SACC-MR-4SCMSCO Phoenix Contact SACC 系列 4路 电缆安装 直角 连接器 插头 , 公触点
1208429
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers TSD 04 SAC Torque ScrewDriver, With Preset Torque Of 0.4nm And 4mm Hexagonal Drive SCREWDRIVER HEX 4MM 8.07" Screwdriver,torque,0.4Nm,4mm hex drv,M12 TSD04SAC
1212224
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers TSD-M 1.2NM Torque Screw Driver, Accuracy As Per En Iso 6789 Standard,Adjustable From 0.3 1.2 Nm TORQUE DRIVER .3-1.2NM Torquescrewdriver;adjustablefrom0.3-1.2Nm
1208432
Phoenix Contact
Hand Tools SAC BIT M12-D15 Connector Accessories Nut for Mounting Sensor/Actuator Cable HEX DRIVE CBL ASSY NUT FOR M12 Nut,M12,QUICKON,4mm hex drive Screwdrivers, Nut Drivers & Socket Drivers SAC BIT M12-D15 SACBITM12-D15 Phoenix Contact SAC 系列 压接工具 螺母

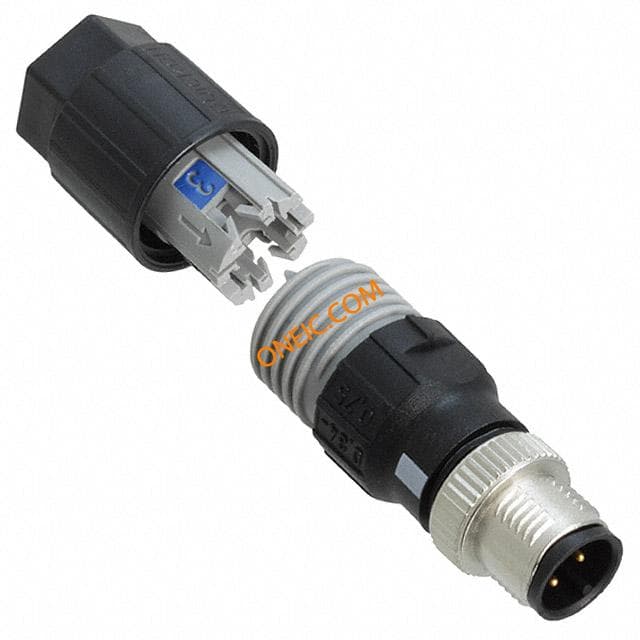

1521591
Phoenix Contact
Circular Metric Connectors SPEEDCON-SACC-M12MS 4QO-0.75-M SCO Conn Sensor Actuator M 4 POS Faston ST Cable Mount 4 Terminal 1 Port CONN M12 4POS PLUG CONNECTOR,IDC,4POSITIONMALE,METALNUT,WIRERANGE:#22-18AWG Phoenix Contact M12 4 引脚 公 连接器

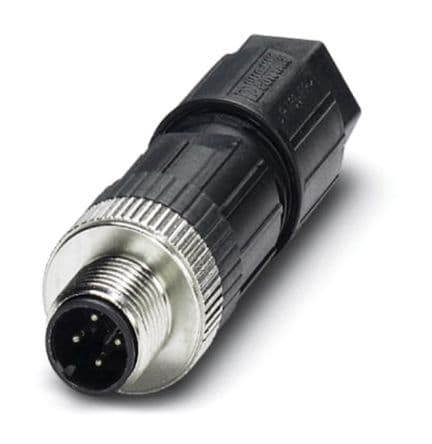

1513716
Phoenix Contact
Circular Metric Connectors SACC-M12MS-4SC M Conn Sensor Actuator M 4 POS ST Cable Mount 4 Terminal 1 Port CONN M12 4POS PLUG SACC-M12MS-4SCM Phoenix Contact 连接器

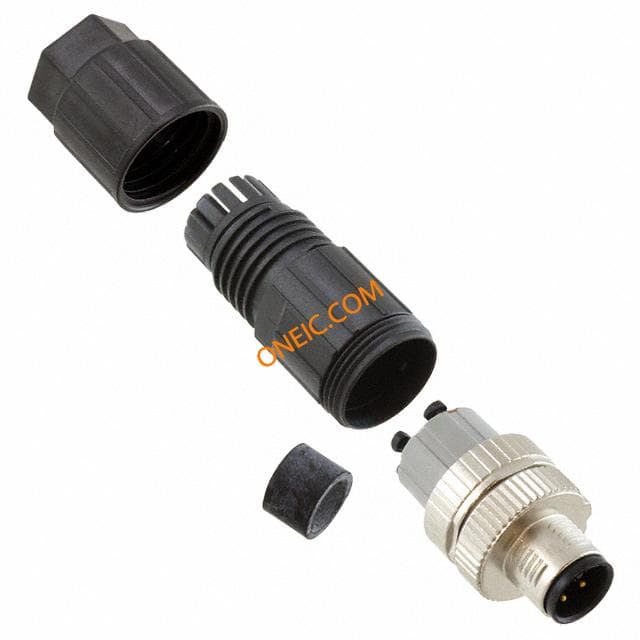

1432635
