点击放大查看

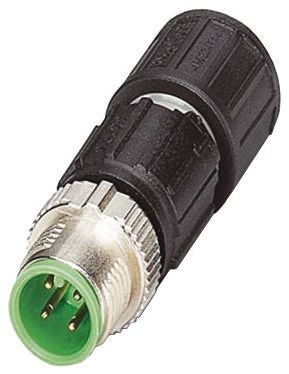

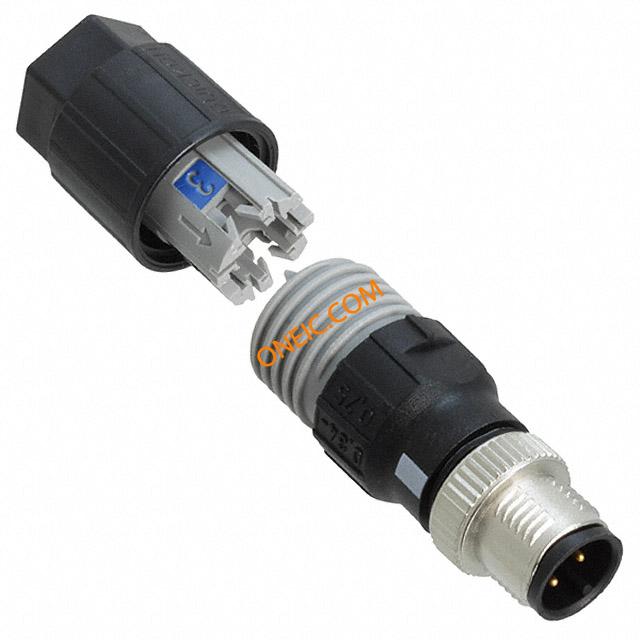

1521591
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Circular Metric Connectors SPEEDCON-SACC-M12MS 4QO-0.75-M SCO Conn Sensor Actuator M 4 POS Faston ST Cable Mount 4 Terminal 1 Port CONN M12 4POS PLUG CONNECTOR,IDC,4POSITIONMALE,METALNUT,WIRERANGE:#22-18AWG Phoenix Contact M12 4 引脚 公 连接器 |
| 分类 |
商业参数
| 商标名 | PLUSCON Field | 产品类别 | Circular Metric Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 250V | 最大额定电流 | 4A |
机械参数
| 重量 | 0.529109 oz | 直径 | 18.4 |
| 包装方式 | Bulk | 方向 | A |
| 外壳样式 | Receptacle | 端接方式 | Faston |
| 触头类型 | 4Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Push-Twist | 插入力 | 公 |
| 触头材料 | Bronze | 总长度 | 55 |
| 端接样式 | Through Hole | 第一触头极性 | M |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | M12-4 | 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated |
产品信息
| 类型 | Sensor Actuator | 连接器性别 | M |
| 系列 | M12 | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Connectors | 附件类型 | 连接器 |
| 连接类型 | M12 4 引脚 | 基础产品编号 | SACC-M12MS-4QO-0.75-MSCO |
环境参数
| 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof | 工作温度 | -25°C ~ 80°C |
