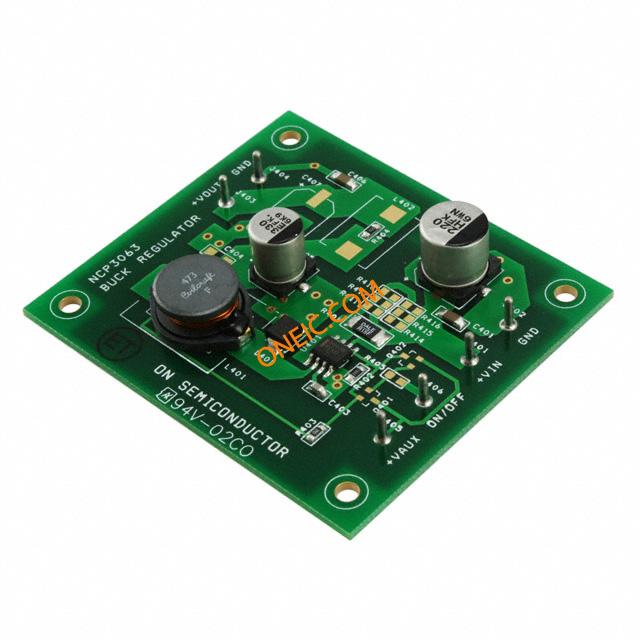

NCP3063SMDBCKEVB
| 制造商 | onsemi |
| 描述 | Evaluation Board For NCP3063 Surface Mount Buck Regulator Power Management IC Development Tools NCP3063 BUCK DEMO BD EVAL BOARD FOR NCP3063SMDBCK |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | NCP3063SMDBCKEVBOS |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 7 V to 15 V | 输出电流 | 200 mA to 800 mA |
| 稳压器拓扑 | Buck | 开关频率 | 250kHz |
| 最小输入电压 | 3.3V | ||
机械参数
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 功能 | Surface Mount Buck Regulator | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | NCP3063 |
| 射频系列/标准 | NCP3063 | 使用的IC/零件 | NCP3063 |
